Article number Select a color, please

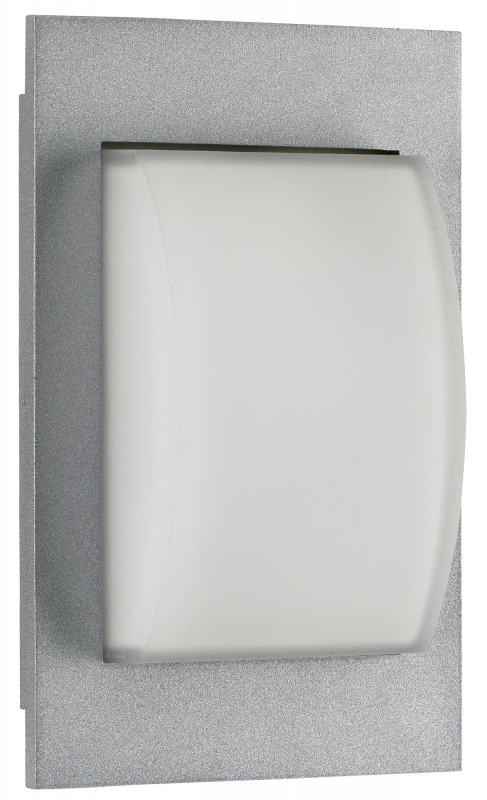

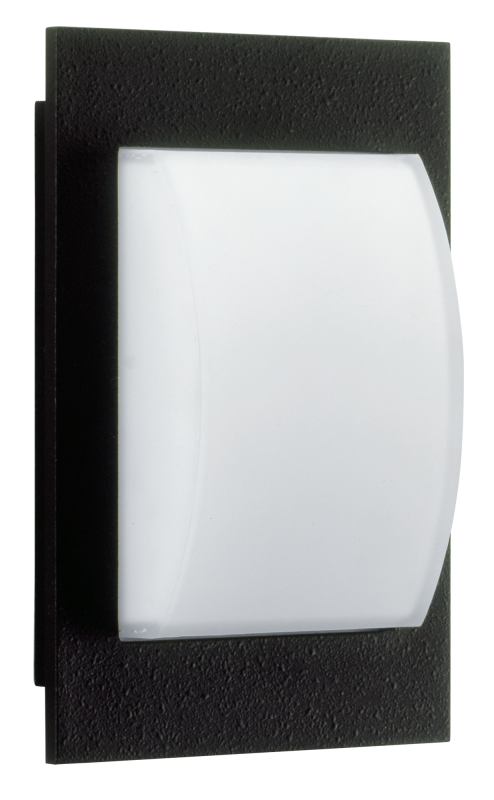

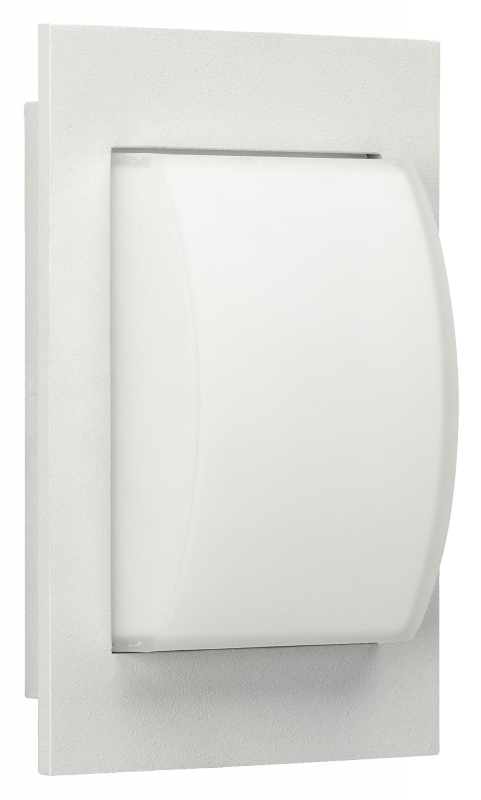

Wall and ceiling light

type ..6208

163,00187,50

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

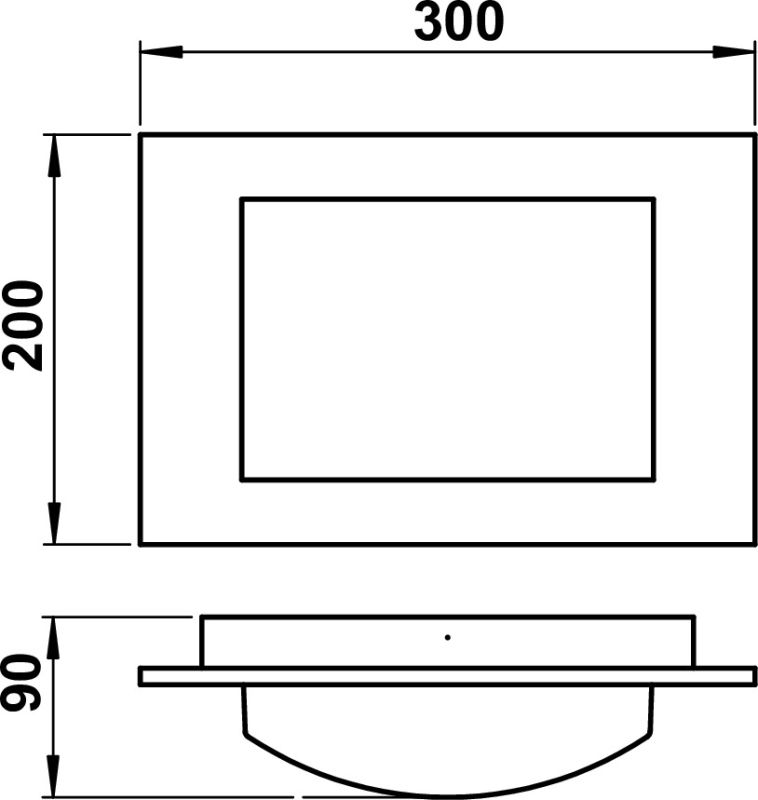

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666208
Offertext
For: 686208
Offertext
For: 696208
Full catalog 21 / 22
Spare parts
90210349 - G 349, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Nominal voltage

230 V

Suitable for number of lamps

1

Protection class

I

Material housing

Aluminium

Degree of protection (IP)

IP44

Type of control gear

Not required

Material cover

Glass opal

Colour housing

Black, Silver, White

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Light output

Direct

Light sharing

Symmetric

Light output

1-seitig

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Lamp holder

E27

Number of poles

3

Mounting Type

Decke, Wand

Beam angle

Open beam/diffuse

Width

200 mm

Max. system power

75 W

Dimming depending on control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

No dim function

Yes

Height/depth

300 mm

Length

90 mm

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for lamp power

1 – 75 W

Shape

Eckig

Height

< 700 mm

Style

Modern

Surface protection housing

Lacquered

Connection type

Screwed terminal

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
