Article number Select a color, please

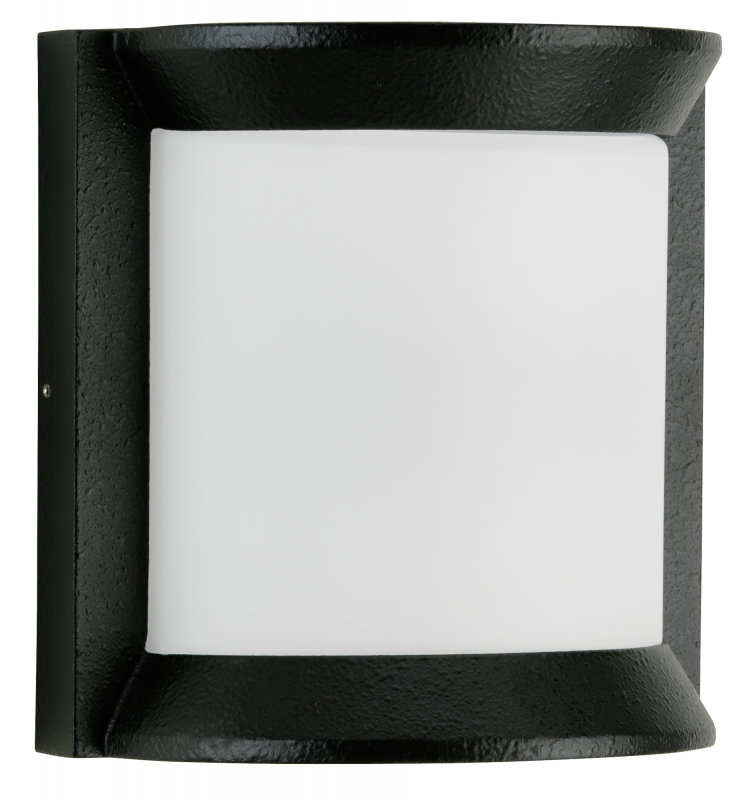

Wall and ceiling light

type ..6288

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing

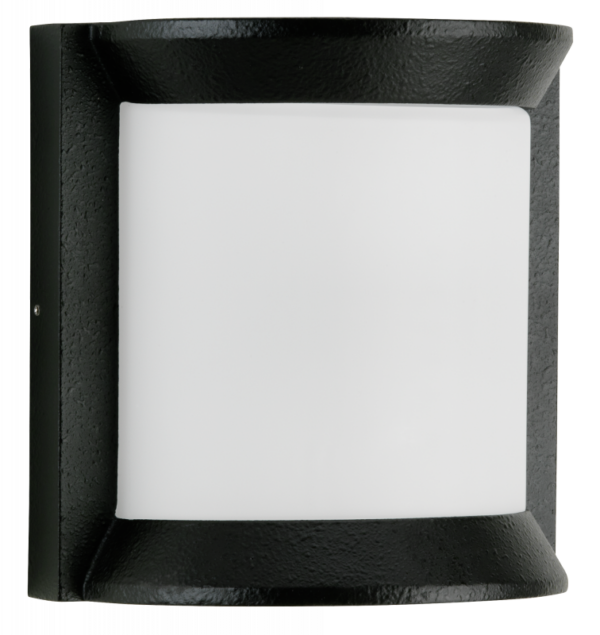

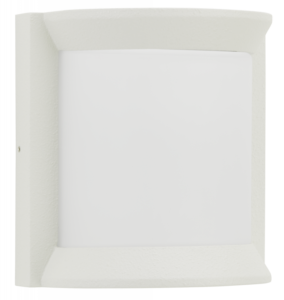

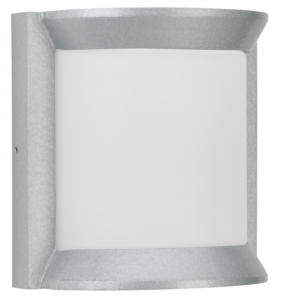

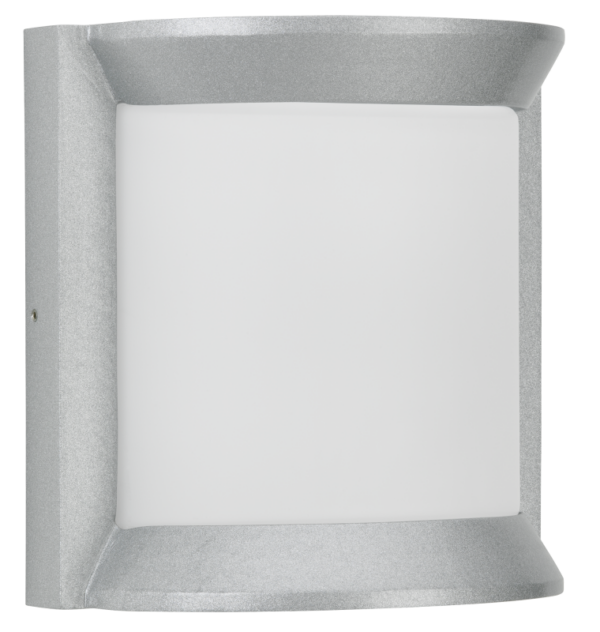

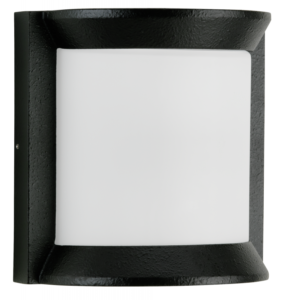

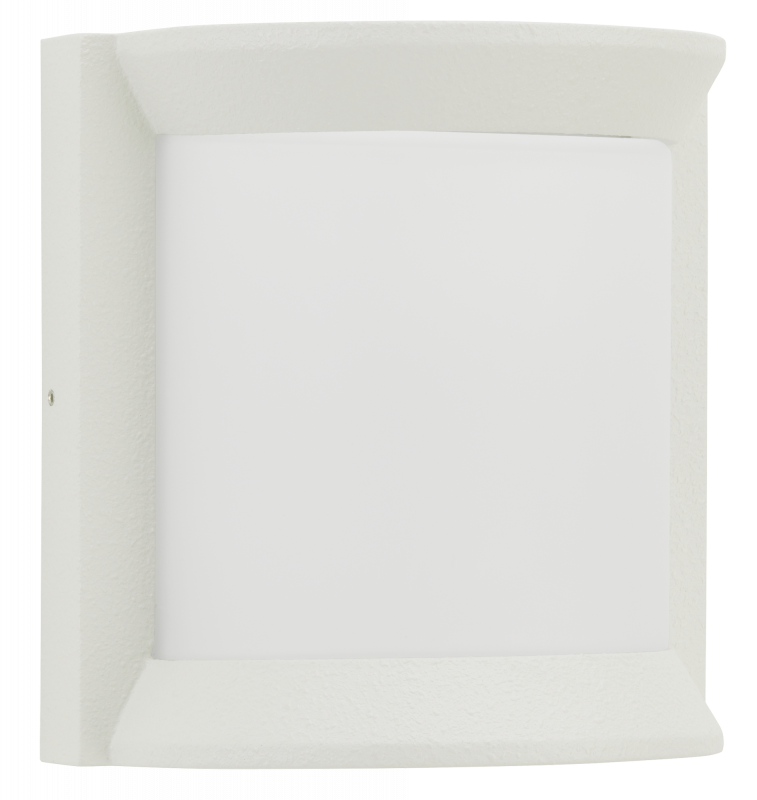

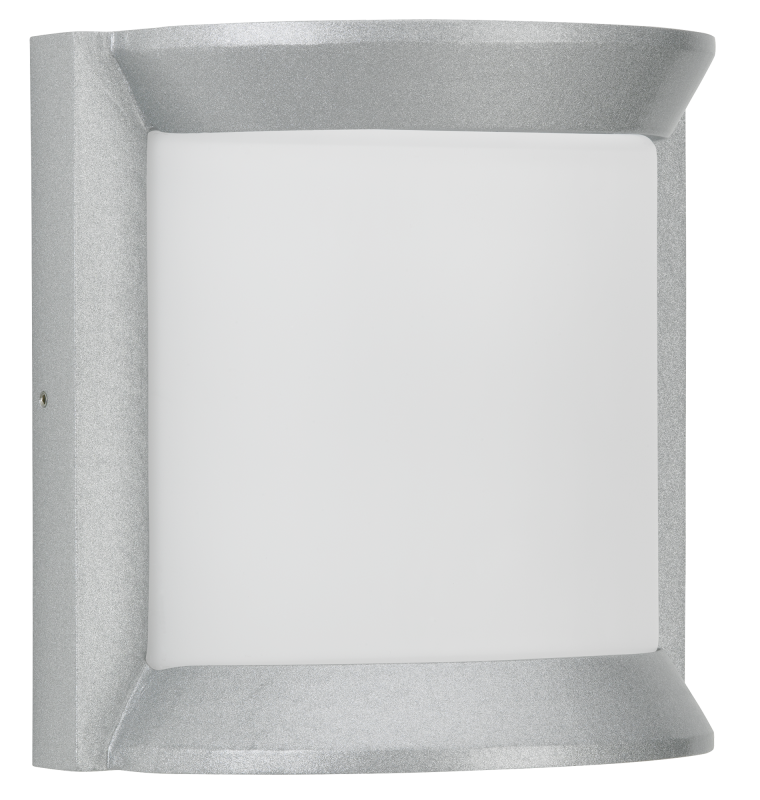

Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Protection class

I

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light sharing

Symmetric

Light output

Direct

Length

125 mm

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Connection type

Screwed terminal

Mounting Type

Wand

Light output

1-seitig

Width

210 mm

Height/depth

210 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

No dim function

Yes

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Height

< 700 mm

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 23 KB

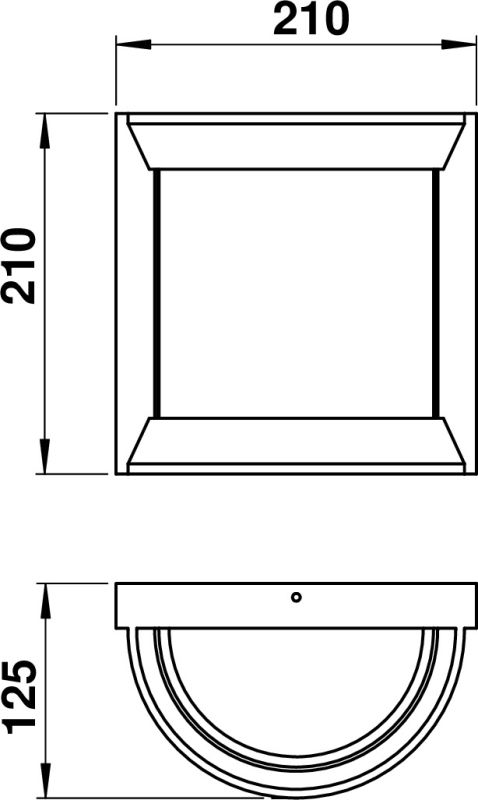

Dimensioned drawing
PDF | 14 KB
Offertext
For: 666288
TXT | 229 B
Offertext
For: 686288
TXT | 229 B
Offertext
For: 696288
TXT | 207 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210118 - G 118, opal glass matt show
