Wall and ceiling light

type ..6308

170,90196,40

Clear
Features
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
24 W
Rated luminous flux according to IEC 62722-2-1
2400 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

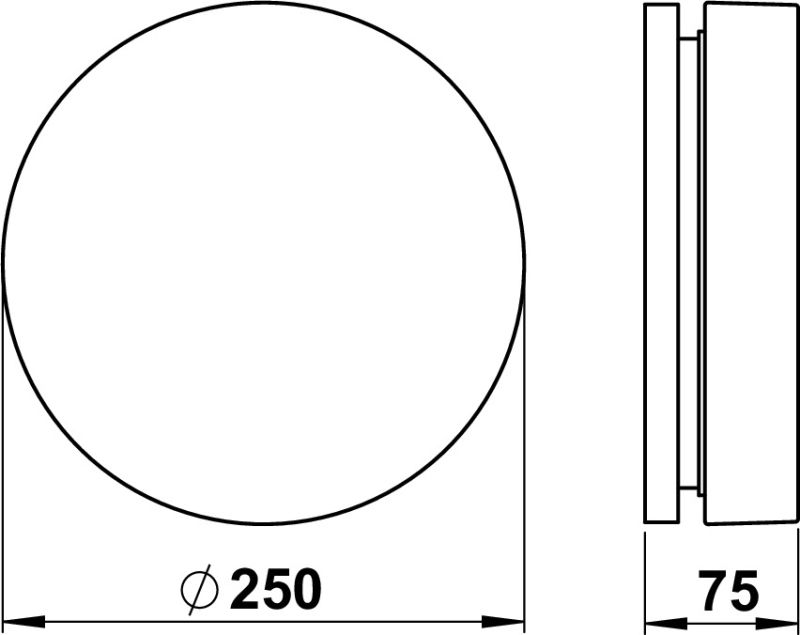

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626308
Offertext
For: 666308
Offertext
For: 686308
Offertext
For: 696308
Full catalog 21 / 22
Spare parts
90210411 - G 411, opal glass matt d = 250 mm show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Lamp type

LED exchangeable

Suitable for ceiling mounting

Yes

Power factor

0.9

Shape

Eckig

Dimming depending on control gear

Yes

Suitable for surface mounting

Yes

Height/depth

75 mm

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

Suitable for lamp power

24 W

Rated luminous flux according to IEC 62722-2-1

2400 lm

Max. system power

24 W

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

With control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Exchangeable control gear

Yes

Stroboscope effect value SVM

0.4

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Height

< 700 mm

Style

Modern

Type of wiring

Suitable for through wiring

Surface protection housing

Lacquered

Outer diameter

250 mm

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP65

Protection class

I

Light output

1-seitig

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

No dim function

Yes

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
