Article number Select a color, please

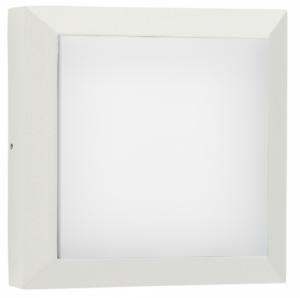

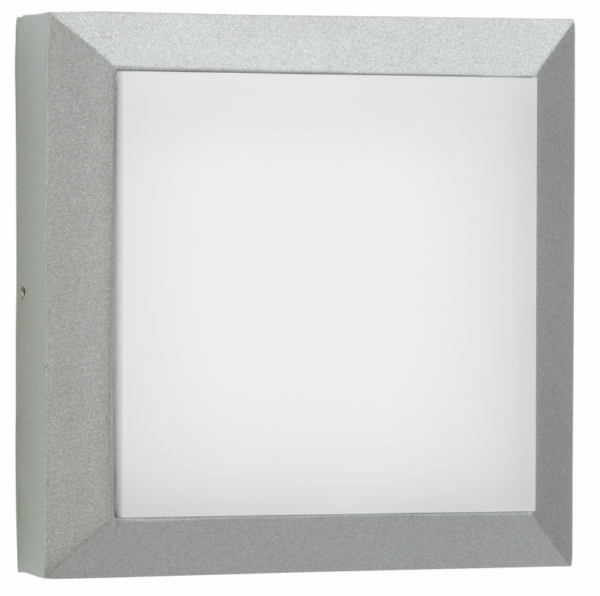

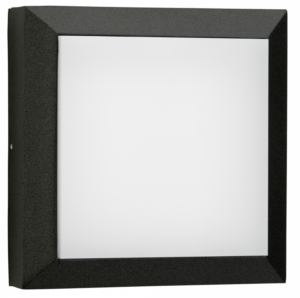

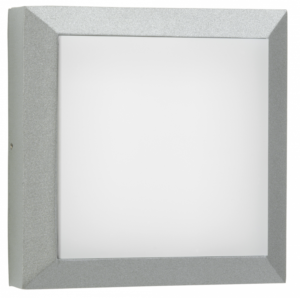

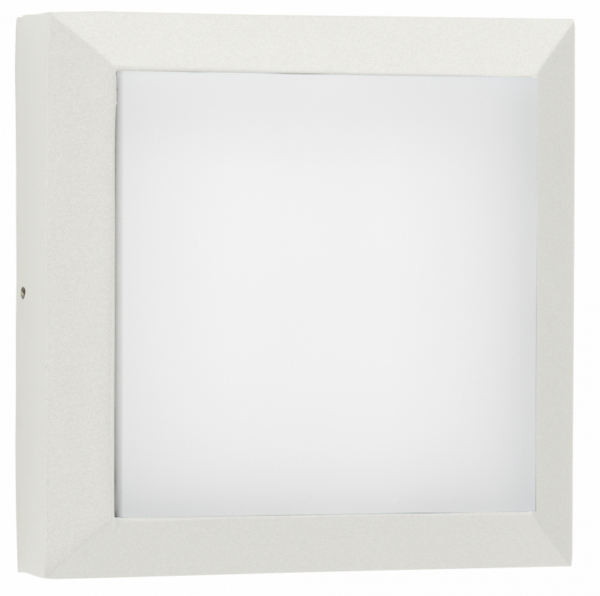

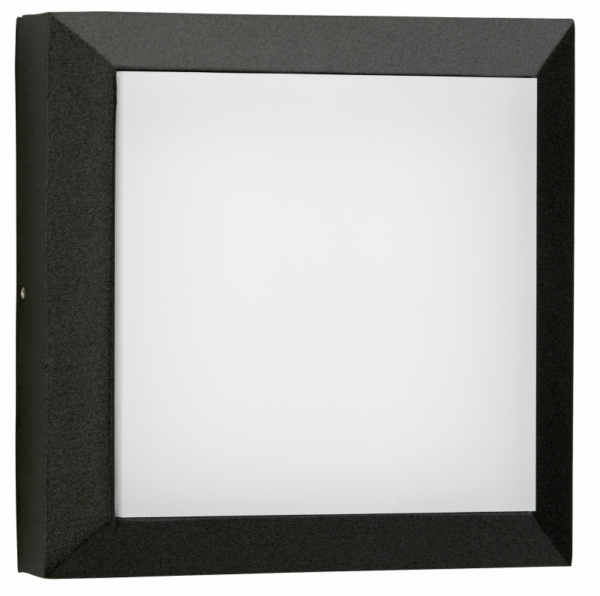

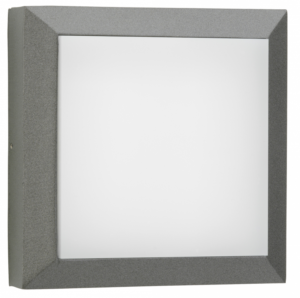

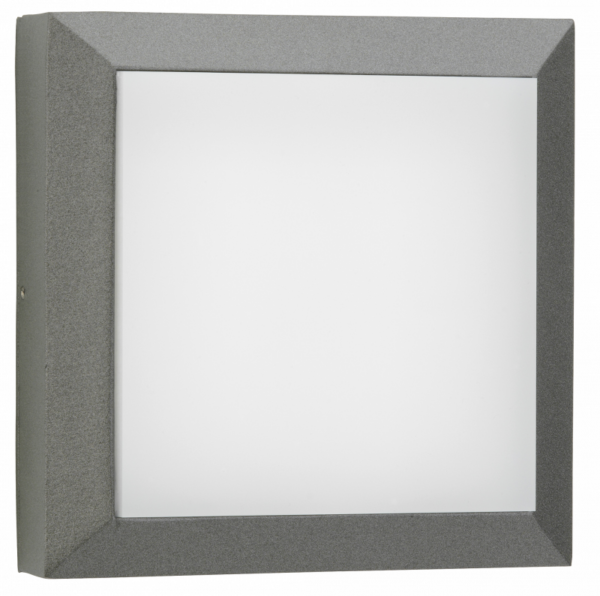

Wall and ceiling light

type ..6560

243,10279,60

Clear
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
880 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

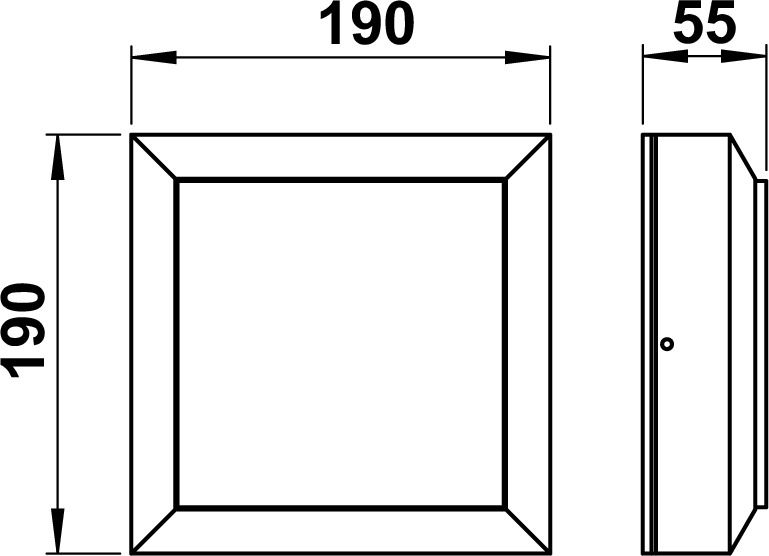

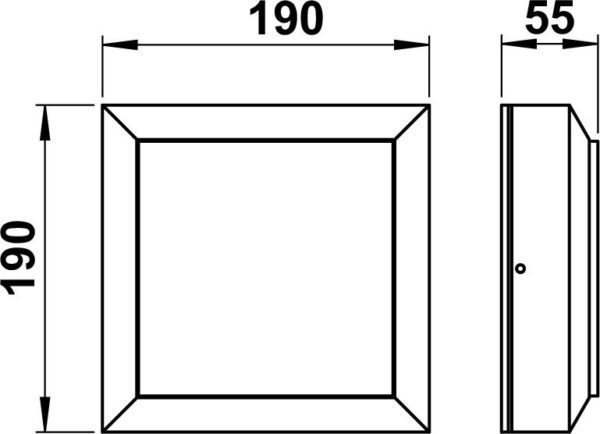

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626560
Offertext
For: 666560
Offertext
For: 686560
Offertext
For: 696560
Full catalog 21 / 22
Spare parts
90270500 - G 500, acrylic glass pane show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Material housing

Aluminium

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

With control gear

No, Yes

Voltage type

AC

Colour housing

Anthracite, Black, Silver, White

With light source

Yes

Lamp type

LED exchangeable

Type of control gear

LED operating device voltage-controlled, Not required

Protection class

I

Impact strength

IK08

Dimming phase cut-off

Yes

Material cover

Plastic, opal

Beam angle

Open beam/diffuse

Energy efficiency class of the provided exchangeable built-in lamp

E

Power factor

0.9

No dim function

Yes

Light output

Direct

Light sharing

Symmetric

Colour temperature

3000 K

Degree of protection (IP)

IP54

Style

Modern

Nominal voltage

230 V

Width

190 mm

Colour rendering index CRI

80-89

Type of wiring

Suitable for through wiring

Suitable for lamp power

8 W

Dimming depending on control gear

Yes

Max. system power

8 W

Rated luminous flux according to IEC 62722-2-1

880 lm

Stroboscope effect value SVM

0.4

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Height/depth

190 mm

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Length

55 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Exchangeable control gear

No, Yes

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig
