Article number Select a color, please

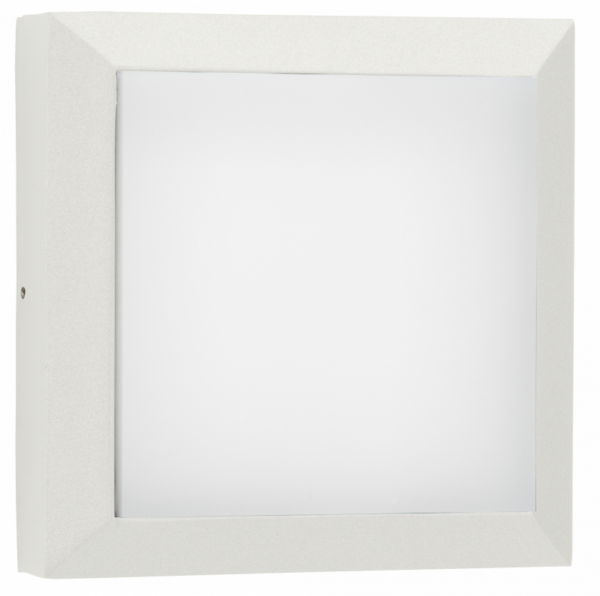

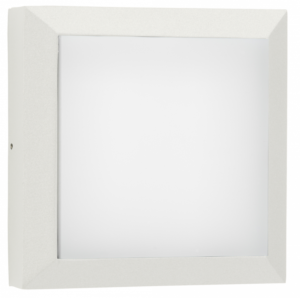

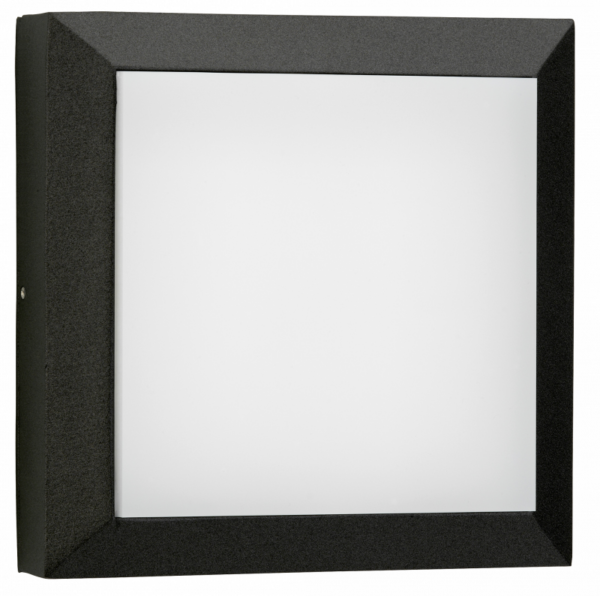

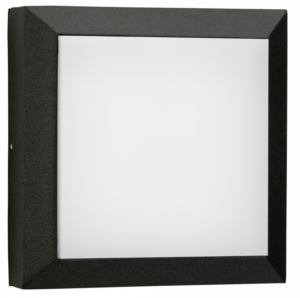

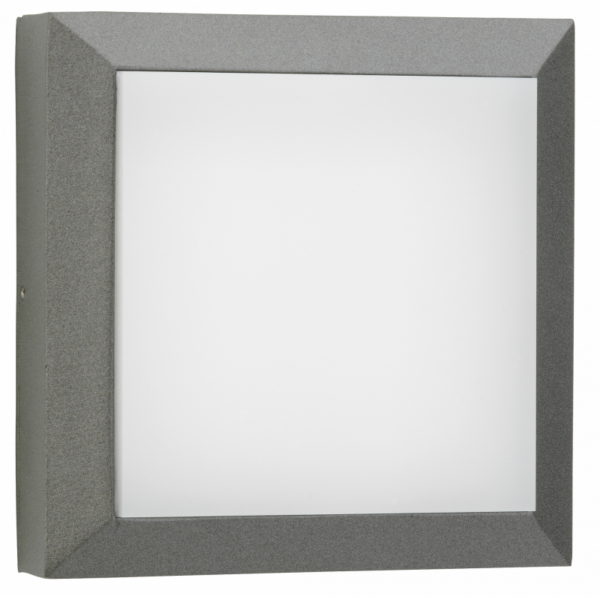

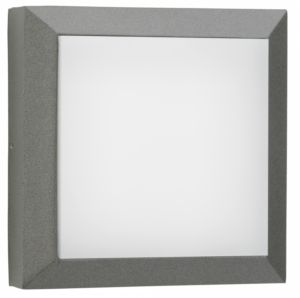

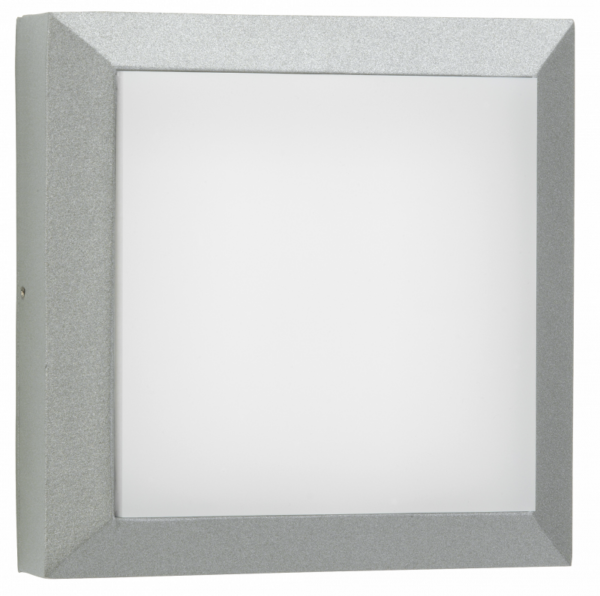

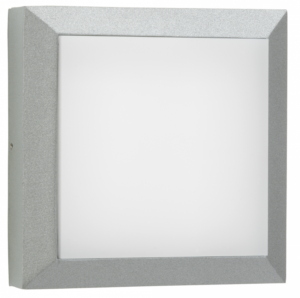

Wall and ceiling light

type ..6561

274,20315,10

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

With control gear

No, Yes

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Protection class

I

Energy efficiency class of the provided exchangeable built-in lamp

E

Dimming phase cut-off

Yes

Beam angle

Open beam/diffuse

Impact strength

IK08

Power factor

0.9

No dim function

Yes

Light output

Direct

Light sharing

Symmetric

Degree of protection (IP)

IP54

Style

Modern

Nominal voltage

230 V

Width

260 mm

Colour rendering index CRI

80-89

Type of wiring

Suitable for through wiring

Dimming depending on control gear

Yes

Max. system power

16 W

Stroboscope effect value SVM

0.4

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Height/depth

260 mm

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Length

55 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Exchangeable control gear

No, Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Colour of light

White

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 79 KB

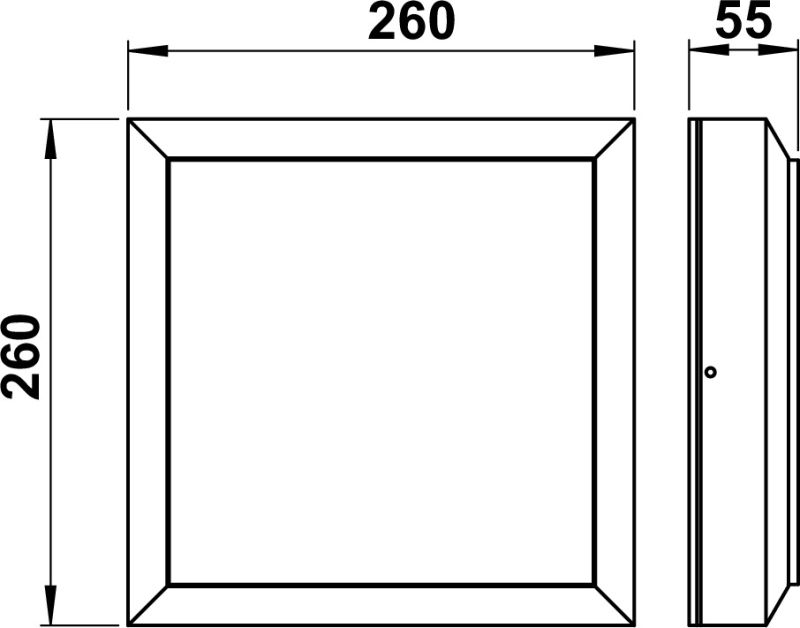

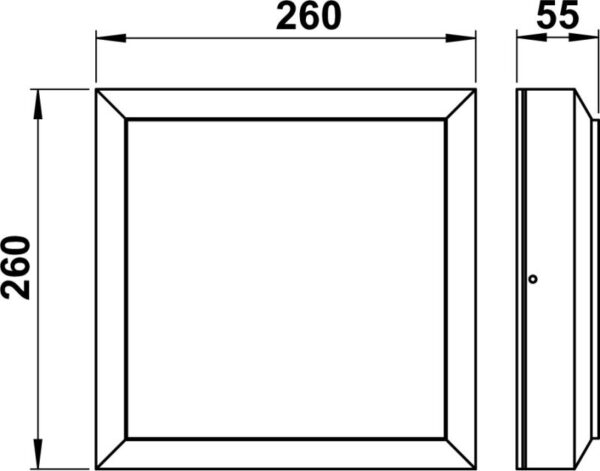

Dimensioned drawing
PDF | 96 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Offertext
For: 626561
TXT | 203 B
Offertext
For: 666561
TXT | 198 B
Offertext
For: 686561
TXT | 198 B
Offertext
For: 696561
TXT | 199 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90270501 - G 501, acrylic glass pane show
