Article number 696315

Wall and ceiling light

type ..6315

This product is no longer in our assortment.

Nicht lieferbar

Description

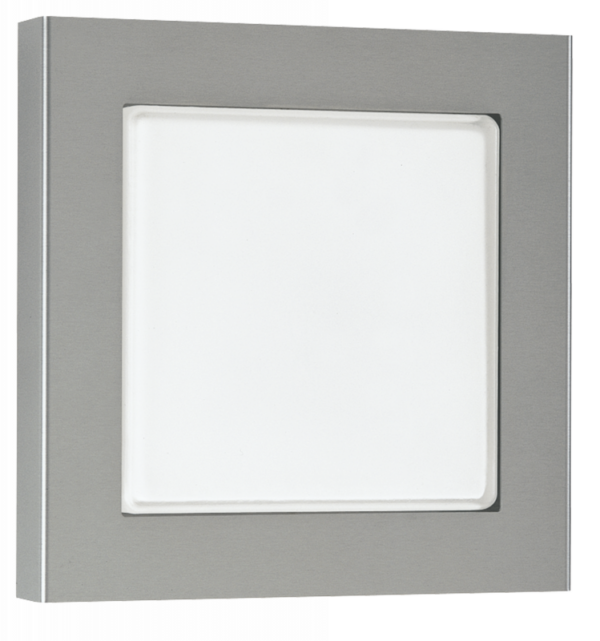

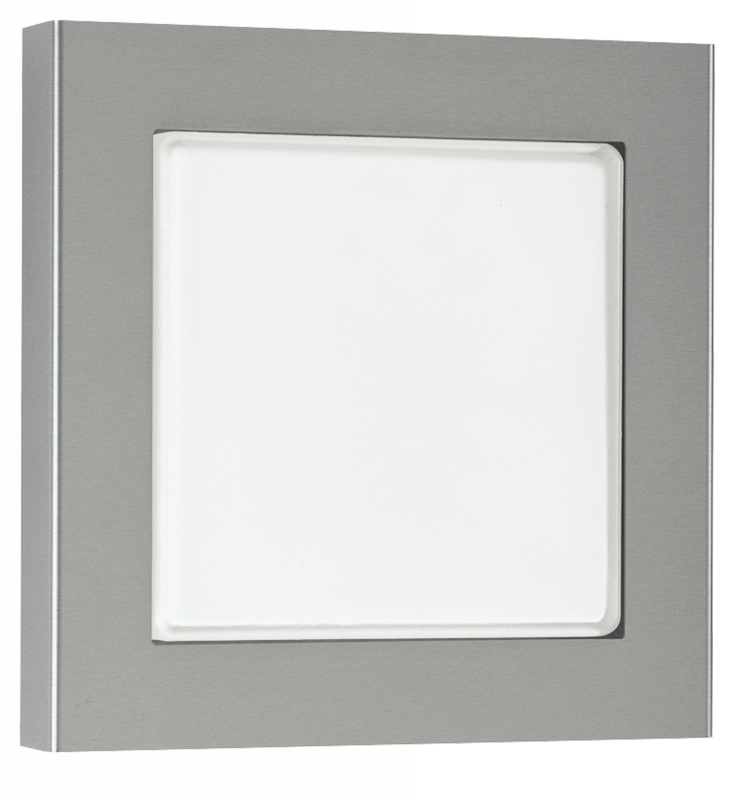

Albert wall and ceiling light 696315
made of stainless steel with opal glass, with separate mounting plate made of cast aluminium. 1 x LED 16 W, warm white 3000 K, 1600 IP 44 – protection class : 255 x 255 x 70 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

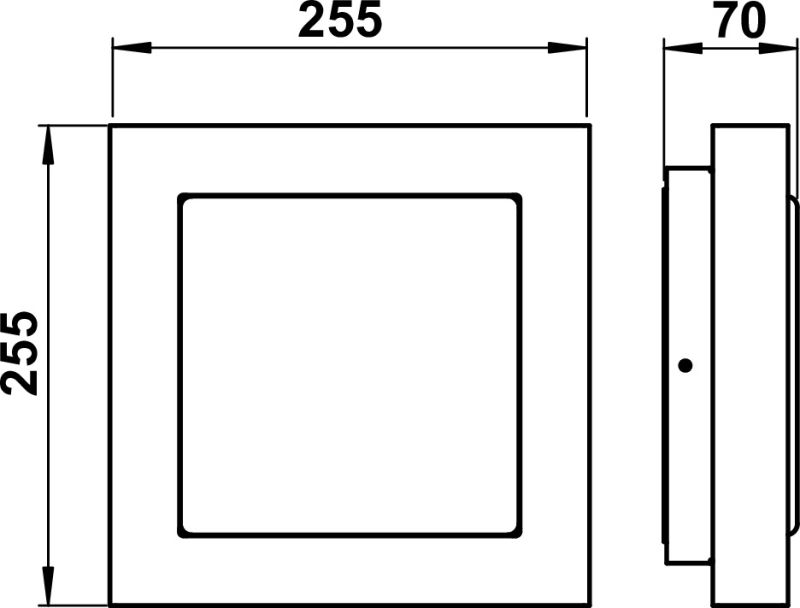

Dimensioned drawing
Full catalog 21 / 22
Spare parts
90210126 - G 126, clear glass matt show

Additional information

Weight 3,20 kg
Energy efficiency class of the provided exchangeable built-in lamp

E

With light source

Yes

Dimming phase cut-off

Yes

Suitable for surface mounting

Yes

Material housing

Stainless steel

With control gear

Yes

Suitable for ceiling mounting

Yes

Suitable for number of lamps

1

Light sharing

Symmetric

Lamp type

LED exchangeable

No dim function

Yes

Colour housing

Stainless steel

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Voltage type

AC

Material cover

Glass opal

Dimming depending on control gear

Yes

Degree of protection (IP)

IP44

Colour rendering index CRI

80-89

Width

255 mm

Height/depth

255 mm

Length

70 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Max. system power

16 W

Beam angle

Open beam/diffuse

Light output

Direct

Light output

1-seitig

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for wall mounting

Yes

Unified Glare Ratio (UGR)

1

Suitable for lamp power

16 W

Colour temperature

3000 K

Rated luminous flux according to IEC 62722-2-1

1600 lm

Mounting Type

Decke, Wand

Surface protection housing

Untreated

Photobiological safety according to EN 62471

RG1

Power factor

0.9

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Height

< 700 mm

Connection type

Screwed terminal

Colour of light

White

Shape

Eckig
