Article number Select a color, please

Wall light

type ..3227

196,70

Clear
Features
Luminaire has IP 23 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass structured, Glass transparent
Documents and files
Assembly instruction

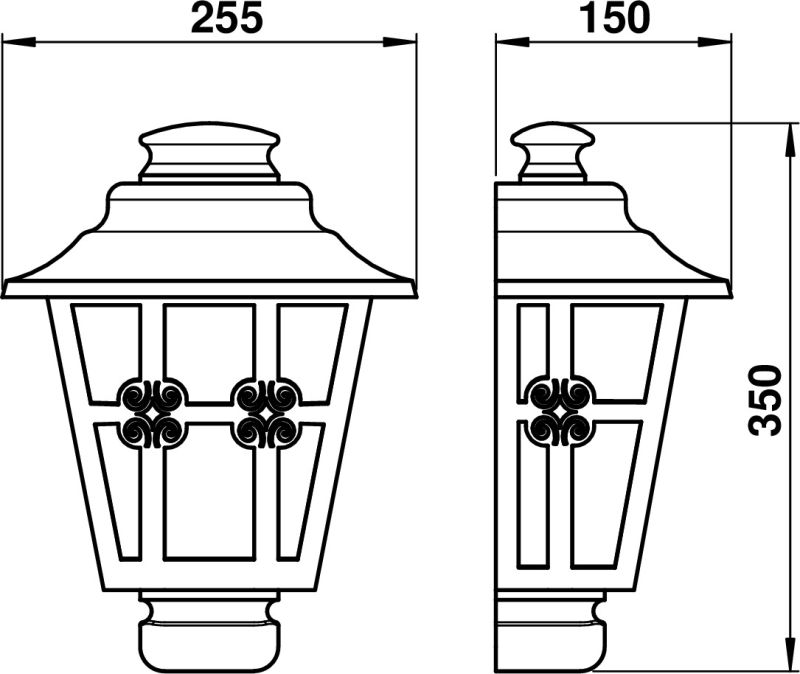

Dimensioned drawing
Offertext

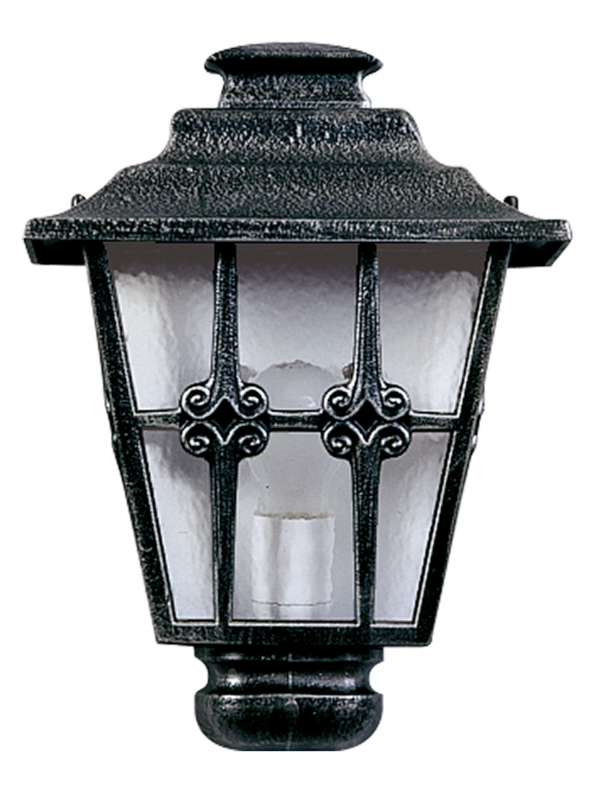

For: 603227
Offertext

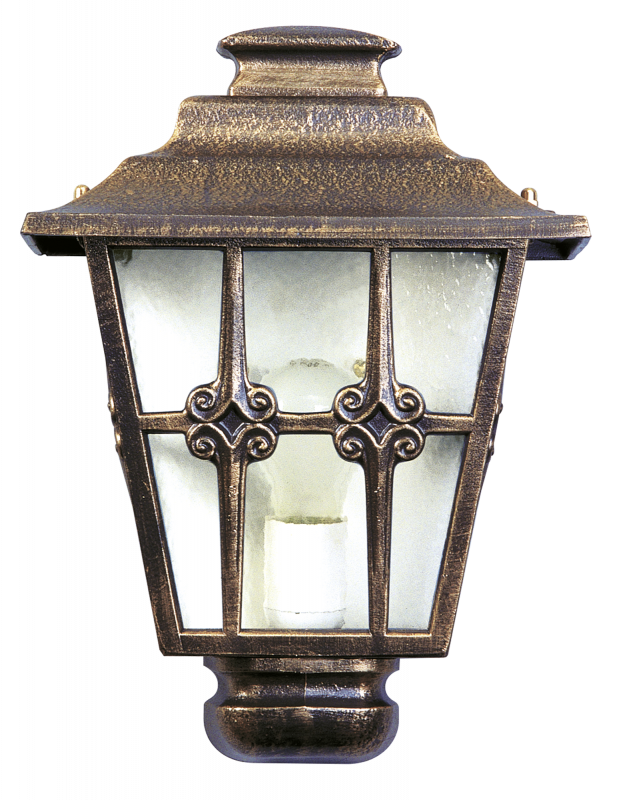

For: 653227
Offertext

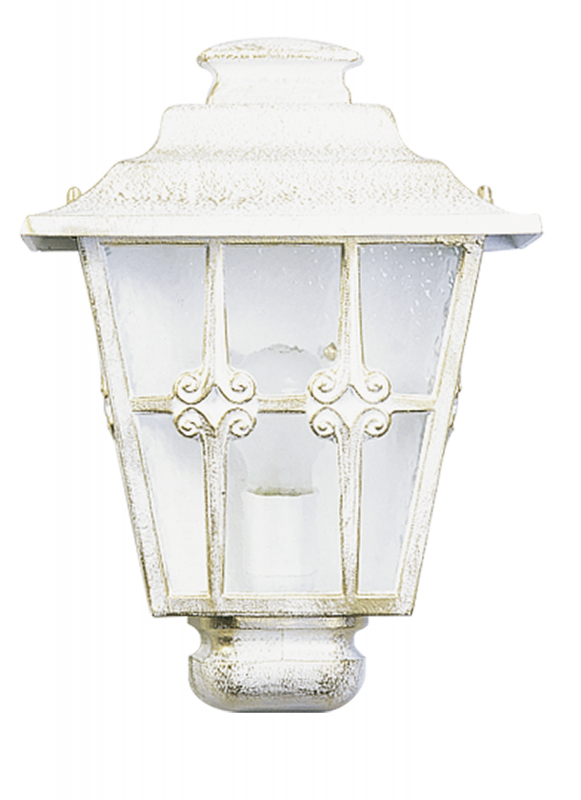

For: 673227
Full catalog 21 / 22
Spare parts
90220163 - G 163, disc set (3 pieces) show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Height/depth

350 mm

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Material housing

Aluminium

Length

150 mm

Nominal voltage

230 V

Suitable for surface mounting

Yes

Width

255 mm

Suitable for number of lamps

1

Lamp holder

E27

Colour housing

Black-Silver, Brown-Brass, White-Gold

Material cover

Glass structured, Glass transparent

Type of control gear

Not required

Dimming phase cut-on

Yes

Dimming depending on control gear

Yes

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Power factor

1

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Mounting method

Wand

Light type

Wandleuchte

Light outlet

1-seitig

No dim function

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Beam angle

Open beam/diffuse

Light outlet

Direct

Protection class

I

Degree of protection (IP)

IP23

Voltage type

AC

Lowest energy efficiency class of the exchangeable lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light sharing

Symmetric

Type of wiring

Ending

Height

< 700 mm

Surface protection housing

Lacquered

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig
