Data sheet
Article number 626339
Wall and ceiling light
type ..6339
€412,10
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

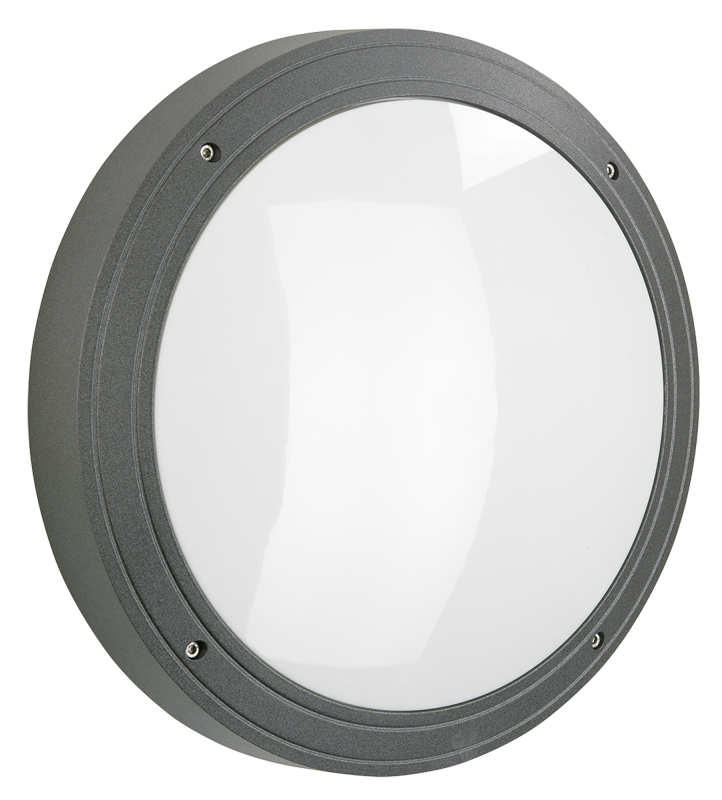

Wall and ceiling light, type no. 6339
Colour: anthracite, 1 x LED 13 W, 1500 lm, aluminium casting, light colour warm white, 3000 K, acrylic glass opal
Features
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire cover is impact resistant IK 10.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
21 W
Rated luminous flux according to IEC 62722-2-1
2500 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

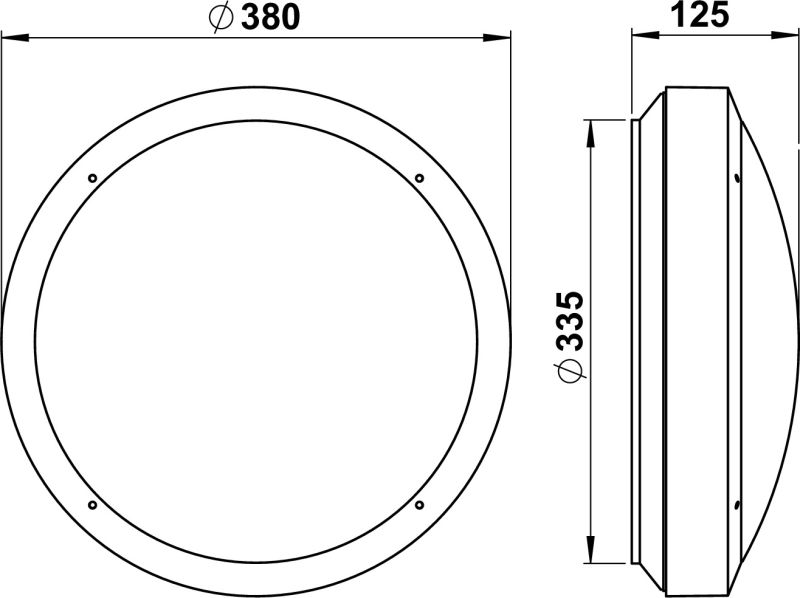

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90270418 - G 418, plexiglass opal | show |
Additional information
| Weight | 4,60 kg |
|---|---|
| Outer diameter | 380 mm |
| Type of control gear | LED operating device voltage-controlled |
| Height | < 700 mm |
| Suitable for ceiling mounting | Yes |
| Protection class | I |
| Suitable for surface mounting | Yes |
| Colour housing | Anthracite |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Voltage type | AC |
| Material housing | Aluminium |
| Light output | Direct |
| Nominal voltage | 230 V |
| Light sharing | Symmetric |
| Lamp type | LED exchangeable |
| Beam angle | Open beam/diffuse |
| Material cover | Plastic, opal |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| With light source | Yes |
| Impact strength | IK10 |
| Rated luminous flux according to IEC 62722-2-1 | 2500 lm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Photobiological safety according to EN 62471 | RG1 |
| Type of wiring | Suitable for through wiring |
| Max. system power | 21 W |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Exchangeable control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Power factor | 0.9 |
| Colour temperature | 3000 K |
| Height/depth | 125 mm |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| Degree of protection (IP) | IP65 |
| Surface protection housing | Lacquered |
| Colour of light | White |
| Suitable for wall mounting | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Suitable for lamp power | 21 W |
| Unified Glare Ratio (UGR) | 1 |
| Connection type | Screwed terminal |
| Colour rendering index CRI | 80-89 |
| Shape | Eckig |
