Data sheet
Article number 696355
Wall and ceiling light
type ..6355
€294,60
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

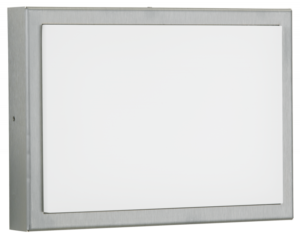

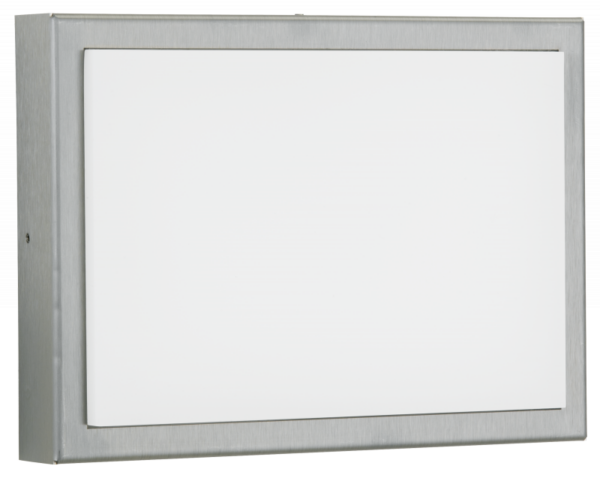

Albert wall and ceiling light 696355
made of stainless steel with opal glass, with separate mounting plate
made of cast aluminium. 1 x LED 16 W, warm white 3000 K, 1600 IP 44 – Protection class : 250 x 180 x 35 mm
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

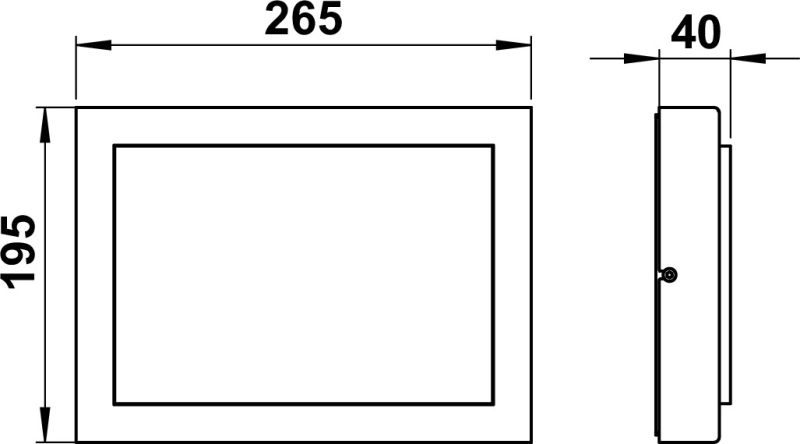

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90270468 - G 468, acrylic disc | show |
Additional information
| Weight | 1,90 kg |
|---|---|
| Power factor | 0.9 |
| No dim function | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Stainless steel |
| Protection class | I |
| Colour housing | Stainless steel |
| Width | 250 mm |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Impact strength | IK08 |
| Voltage type | AC |
| With control gear | Yes |
| Light sharing | Symmetric |
| Dimming phase cut-off | Yes |
| Beam angle | Open beam/diffuse |
| Material cover | Plastic, opal |
| Suitable for lamp power | 16 W |
| Light output | Direct |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP44 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Dimming depending on control gear | Yes |
| Max. system power | 16 W |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Colour of light | White |
| Colour temperature | 3000 K |
| Colour rendering index CRI | 80-89 |
| Exchangeable control gear | Yes |
| Suitable for wall mounting | Yes |
| Surface protection housing | Untreated |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Style | Edelstahl, Modern |
| Mounting Type | Decke, Wand |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Unified Glare Ratio (UGR) | 1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Length | 35 mm |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Photobiological safety according to EN 62471 | RG1 |
| Height | < 700 mm |
| Height/depth | 180 mm |
| Light output | 1-seitig |
| Stroboscope effect value SVM | 0.4 |
| Flickering value Pst LM | 1 |
| Shape | Eckig |
