Article number Select a color, please

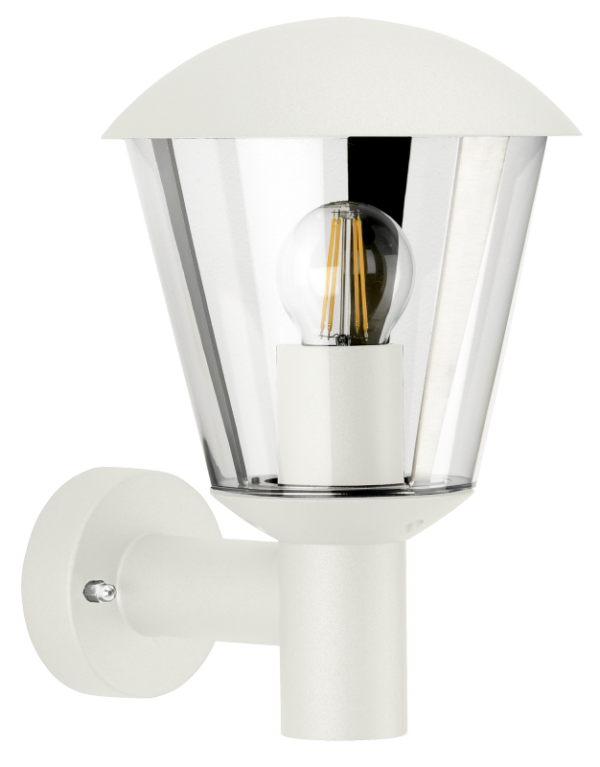

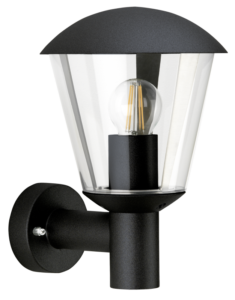

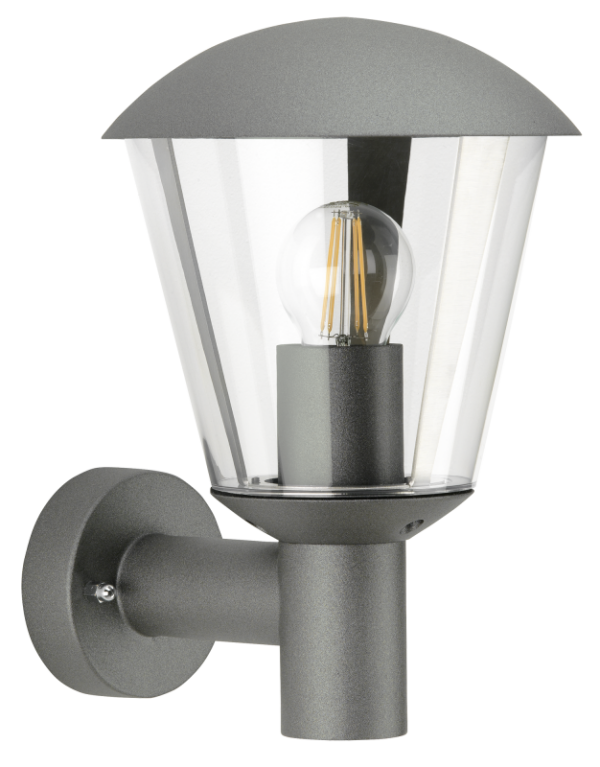

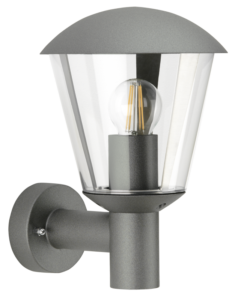

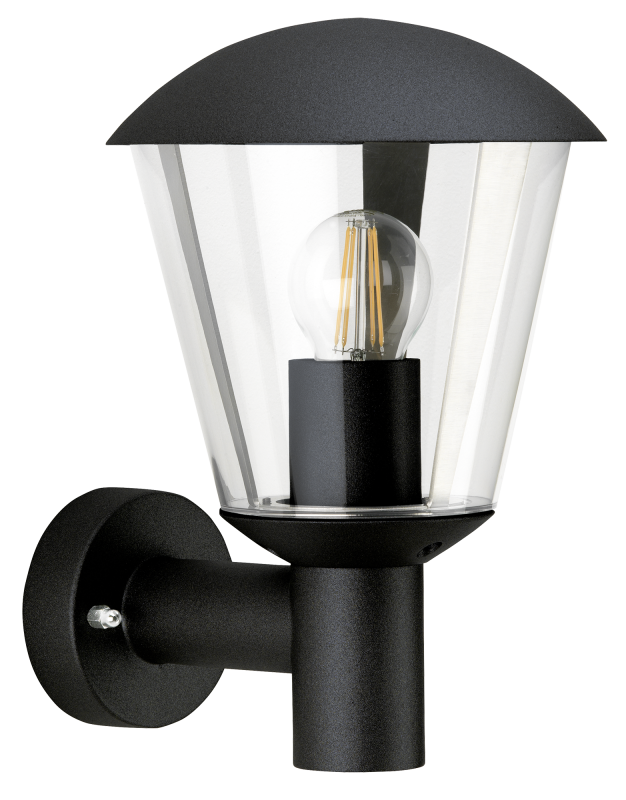

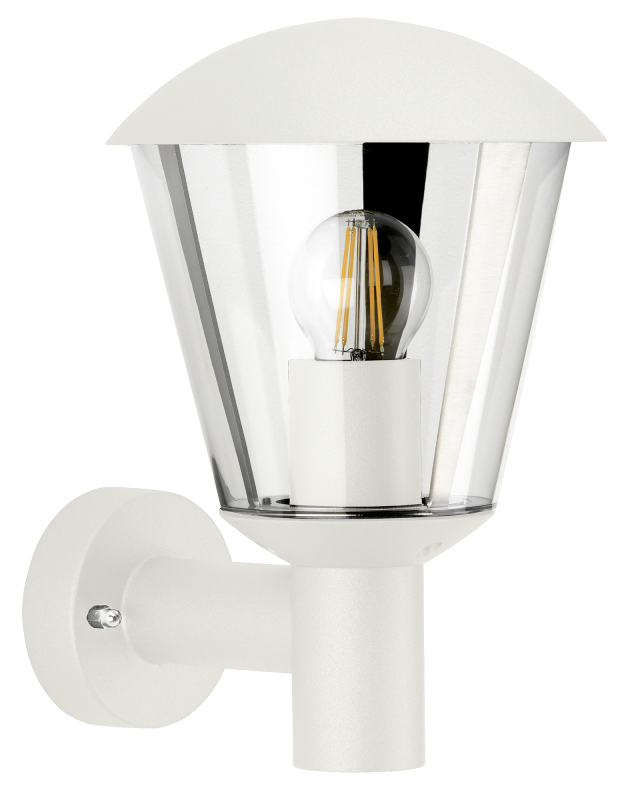

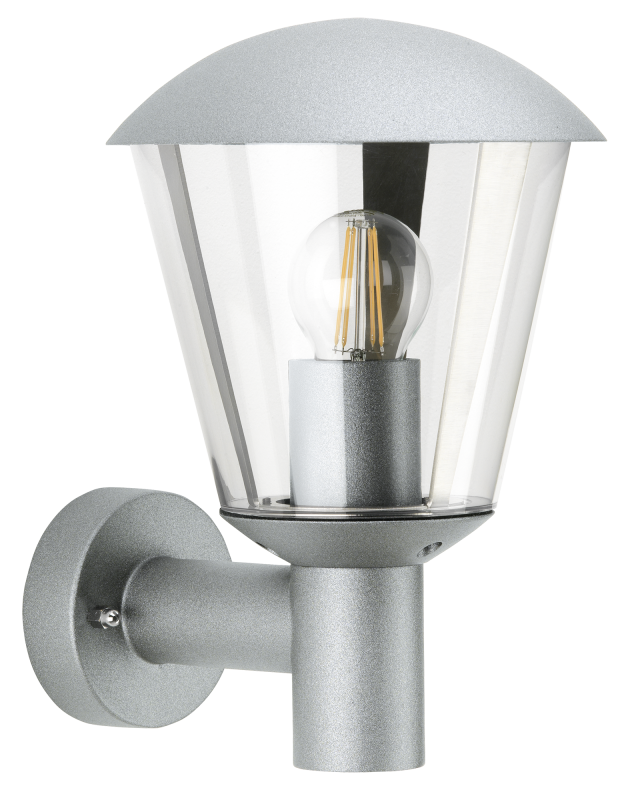

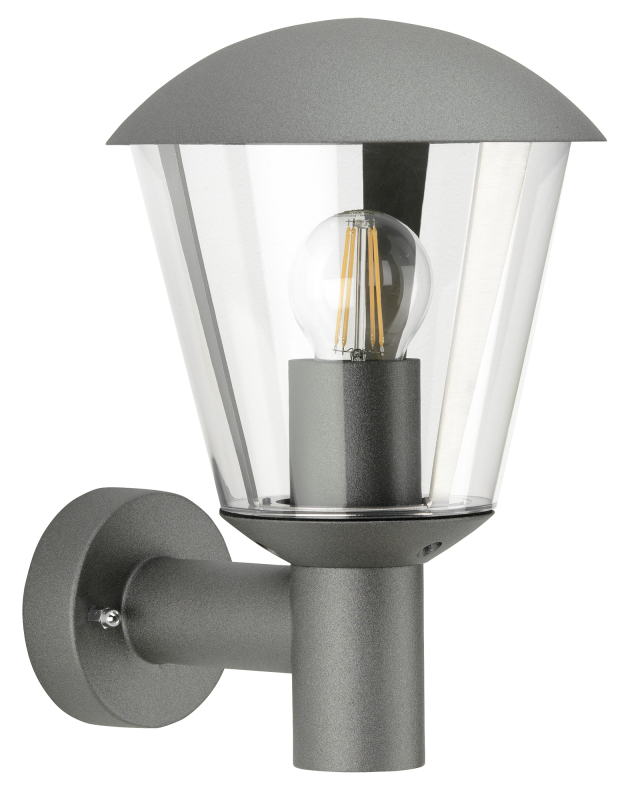

Wall lamp

type ..1854

220,80253,90

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Suitable for wall mounting

Yes

Length

240 mm

Protection class

I

Outer diameter

200 mm

Dimming phase cut-on

Yes

Nominal voltage

230 V

Dimming manufacturer's proprietary system

Yes

Type of control gear

Not required

Voltage type

AC

Dimming phase cut-off

Yes

Max. system power

75 W

Mounting Type

Wand

Unified Glare Ratio (UGR)

1

Suitable for surface mounting

Yes

Light sharing

Symmetric

Suitable for number of lamps

1

Height/depth

300 mm

Power factor

1

Height

< 700 mm

Impact strength

IK08

Connection type

Screwed terminal

Dimming depending on control gear

Yes

No dim function

Yes

Light type

Wandleuchte

Conductor cross section

2.5 mm²

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP54

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Light output

1-seitig

Number of poles

3

Surface protection housing

Lacquered

Style

Edelstahl, Modern

Beam angle

Open beam/diffuse

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 109 KB

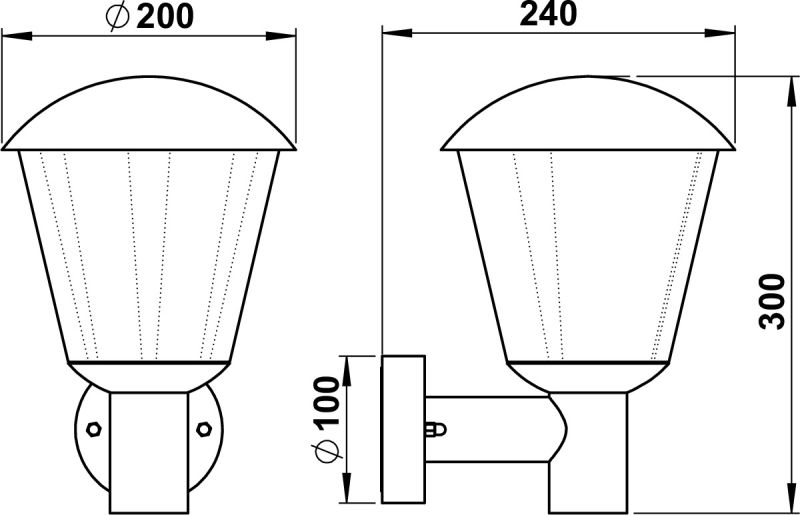

Dimensioned drawing
PDF | 97 KB
Light distribution curve - Eulumdat/LDT
LDT | 879 B
Offertext
For: 621854
TXT | 176 B
Offertext
For: 661854
TXT | 212 B
Offertext
For: 681854
TXT | 212 B
Offertext
For: 691854
TXT | 197 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260141 - G 141, lamp glasses L-750 show
