Article number 696285

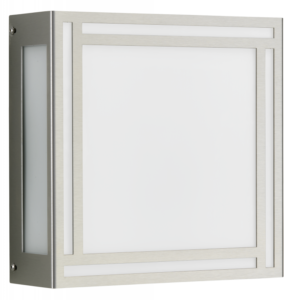

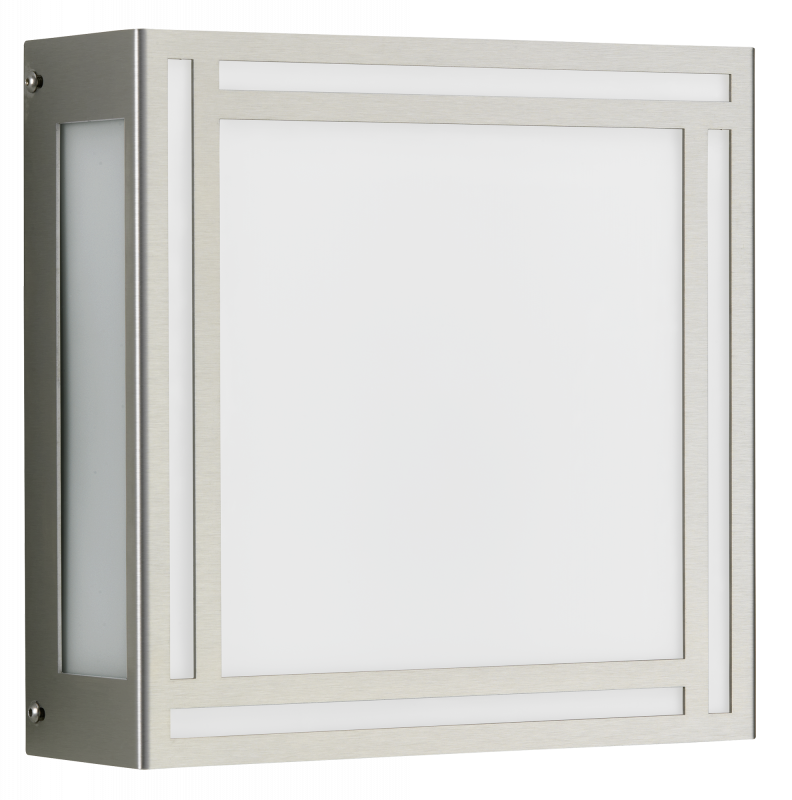

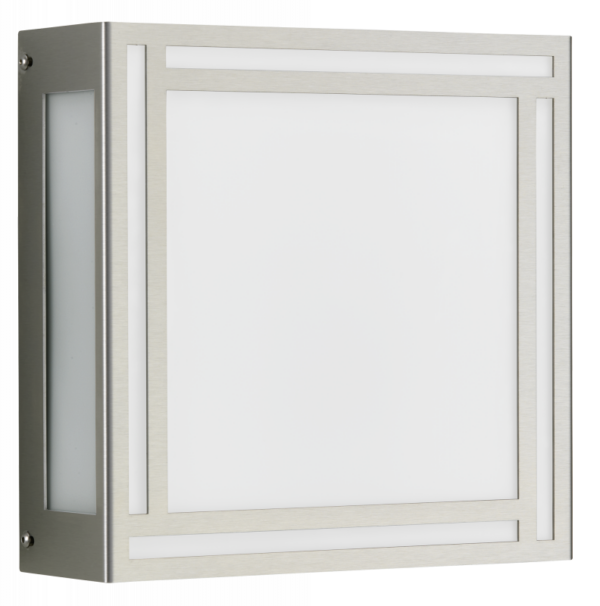

Wall and ceiling light

type ..6285

186,00

Description

Albert wall and ceiling light 696285
made of stainless steel with opal glass, mounting plate. Fitted for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : 255 x 255 x 95 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

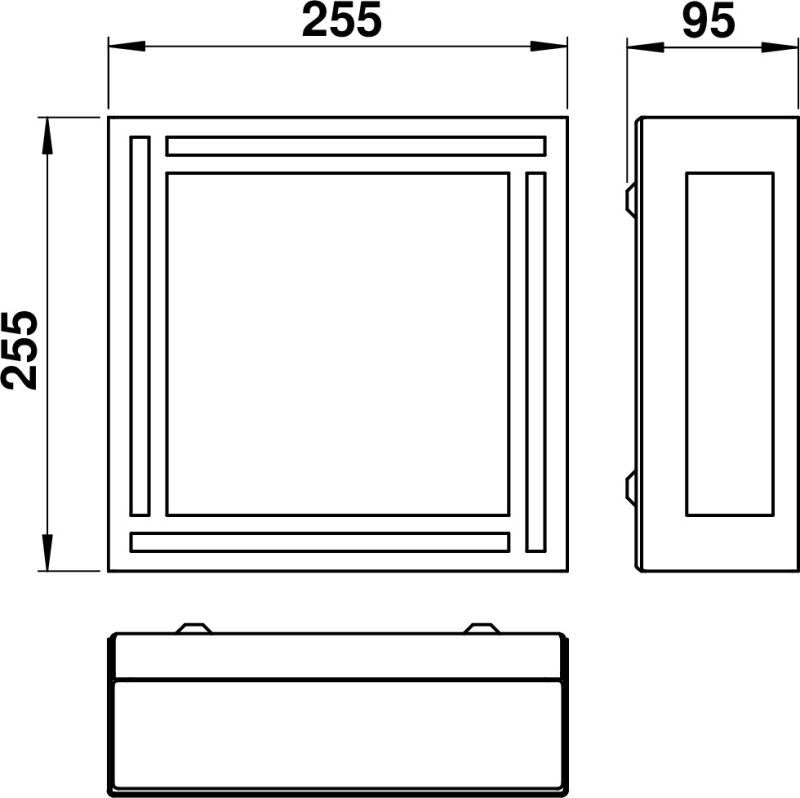

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210393 - G 393, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 3,30 kg
Lamp holder

E27

Material cover

Glass opal

Material housing

Stainless steel

Dimming manufacturer's proprietary system

Yes

Suitable for number of lamps

1

Colour housing

Stainless steel

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Protection class

I

Suitable for ceiling mounting

Yes

Conductor cross section

2.5 mm²

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Dimming phase cut-off

Yes

Number of poles

3

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

255 mm

Length

95 mm

Type of wiring

Ending

Degree of protection (IP)

IP44

No dim function

Yes

Photobiological safety according to EN 62471

RG1

Power factor

1

Unified Glare Ratio (UGR)

1

Light output

1-seitig

Width

255 mm

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Suitable for wall mounting

Yes

Mounting Type

Decke, Wand

Dimming depending on control gear

Yes

Height

< 700 mm

Surface protection housing

Untreated

Beam angle

Open beam/diffuse

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig
