Article number Select a color, please

Wall and ceiling light

type ..6404

There is a successor for this product, which you will find listed below.

240,20276,20

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Documents and files
Assembly instruction

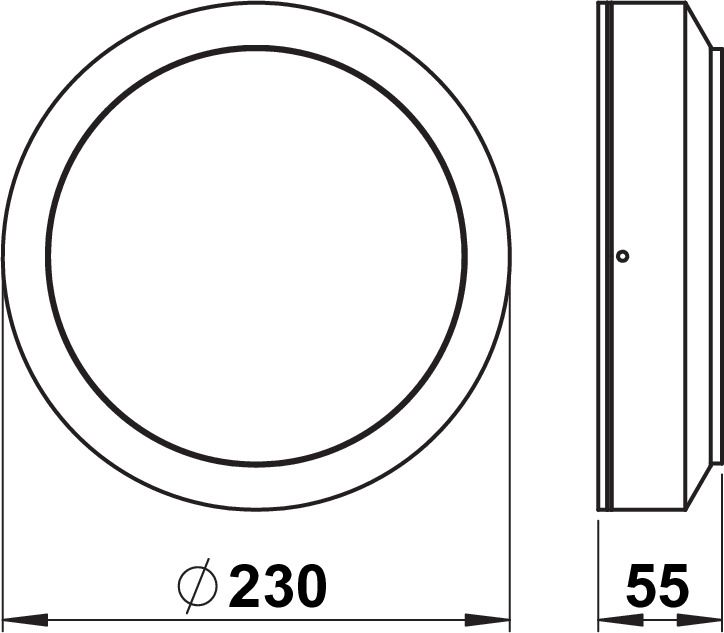

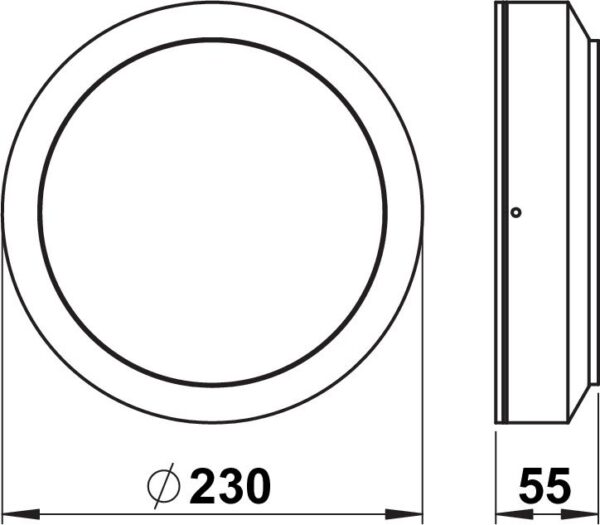

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626404
Offertext
For: 666404
Offertext
For: 686404
Offertext
For: 696404
Full catalog 21 / 22
Successor
626420 - Wall and ceiling light type ..6420, Anthracite
Für: 626404
show
666420 - Wall and ceiling light type ..6420, Black
Für: 666404
show
686420 - Wall and ceiling light type ..6420, White
Für: 686404
show
696420 - Wall and ceiling light type ..6420, Silver
Für: 696404
show
Spare parts
90270458 - G 458, acrylic disc show

Additional information

Weight N/A
Colour temperature

3000 K

Type of control gear

LED operating device voltage-controlled

Material cover

Plastic, structured

Nominal voltage

230 V

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

1

With control gear

Yes

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Voltage type

AC

With light source

Yes

Beam angle

Open beam/diffuse

Number of poles

3

Conductor cross section

2.5 mm²

Type of wiring

Ending

Suitable for lamp power

16 W

Max. system power

16 W

Rated luminous flux according to IEC 62722-2-1

1600 lm

Connection type

Screwed terminal

Length

55 mm

Colour of light

White

Dimming phase cut-off

Yes

Outer diameter

230 mm

Dimming depending on control gear

Yes

No dim function

Yes

Light output

Direct

Light sharing

Symmetric

Power factor

0.9

Mounting Type

Decke, Wand

Impact strength

IK08

Energy efficiency class of the provided exchangeable built-in lamp

E

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light output

1-seitig

Surface protection housing

Lacquered

Colour consistency (McAdam ellipse)

SDCM3

Degree of protection (IP)

IP54

Suitable for wall mounting

Yes

Unified Glare Ratio (UGR)

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Exchangeable control gear

Yes

Colour rendering index CRI

80-89

Shape

Eckig
