Data sheet
Article number 696412
Wall and ceiling light
type ..6412
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

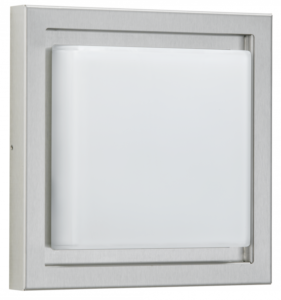

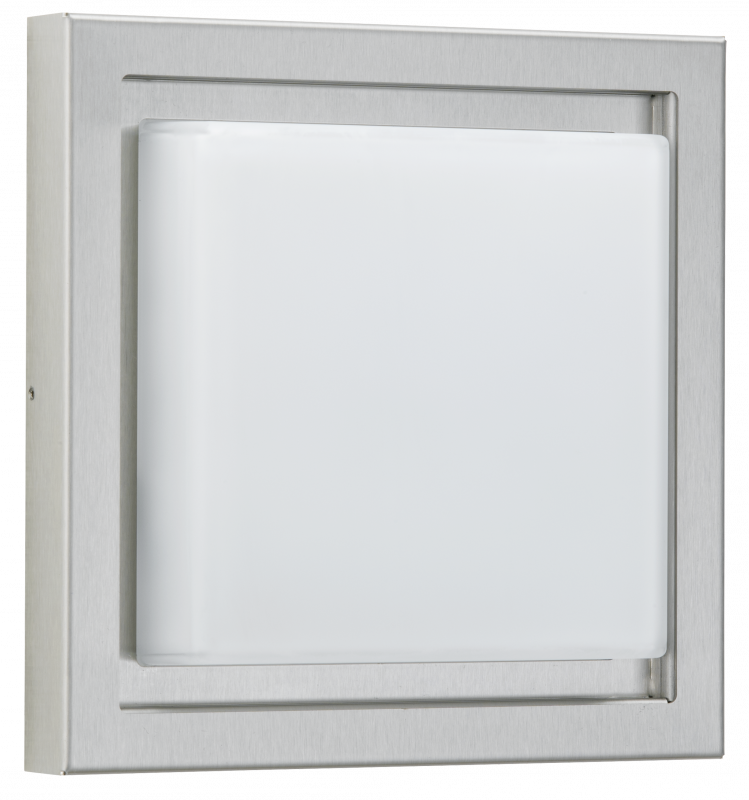

Albert wall and ceiling light 696412
made of stainless steel with opal glass1 x LED 10W, 770 lm, light colour warm white 3000 IP 44 – protection class : 250 x 250 x 65 mm
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

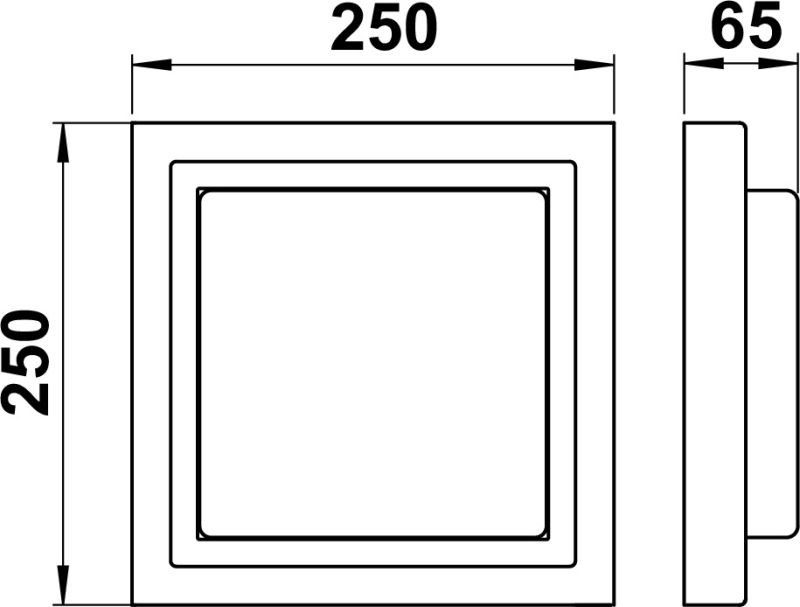

Dimensioned drawing
Full catalog 21 / 22
Spare parts
| 90210126 - G 126, clear glass matt | show |
Additional information
| Weight | 2,80 kg |
|---|---|
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Dimming phase cut-off | Yes |
| Degree of protection (IP) | IP44 |
| Suitable for ceiling mounting | Yes |
| Colour rendering index CRI | 80-89 |
| Lamp type | LED exchangeable |
| Material housing | Stainless steel |
| Light sharing | Symmetric |
| With light source | Yes |
| Dimming depending on control gear | Yes |
| Colour housing | Stainless steel |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Material cover | Glass opal |
| No dim function | Yes |
| Suitable for surface mounting | Yes |
| Width | 250 mm |
| Height/depth | 250 mm |
| Length | 65 mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Suitable for lamp power | 10 W |
| Protection class | I |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Suitable for wall mounting | Yes |
| Photobiological safety according to EN 62471 | RG1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Mounting Type | Decke, Wand |
| Colour of light | White |
| Light output | 1-seitig |
| Beam angle | Open beam/diffuse |
| Unified Glare Ratio (UGR) | 1 |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Max. system power | 10 W |
| Connection type | Screwed terminal |
| Light output | Direct |
| Power factor | 0.9 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Surface protection housing | Untreated |
| Rated luminous flux according to IEC 62722-2-1 | 900 lm |
| Colour temperature | 3000 K |
| Shape | Eckig |
