Data sheet
Article number
Select a color, please
Wall light
type ..0219
€567,20 – €652,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium

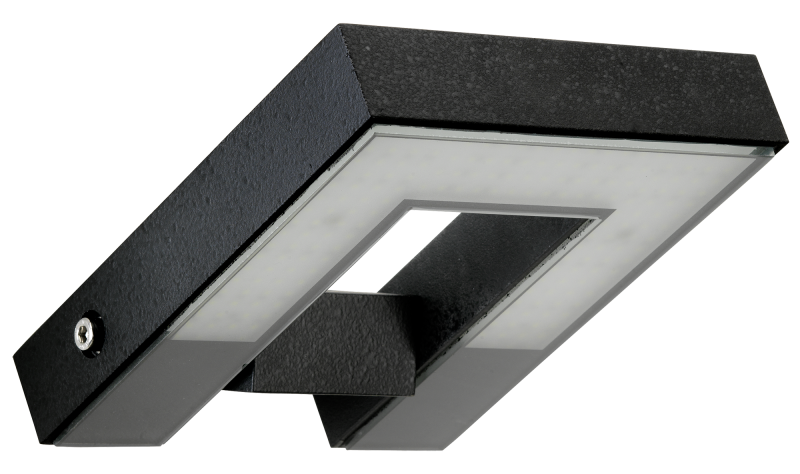

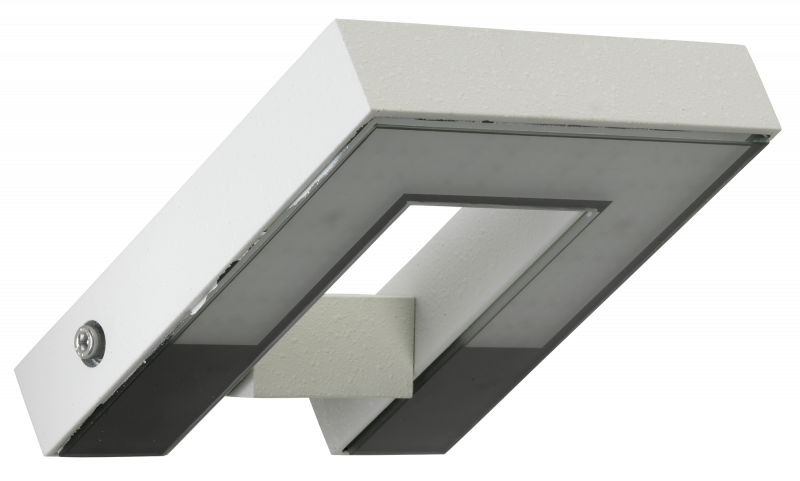

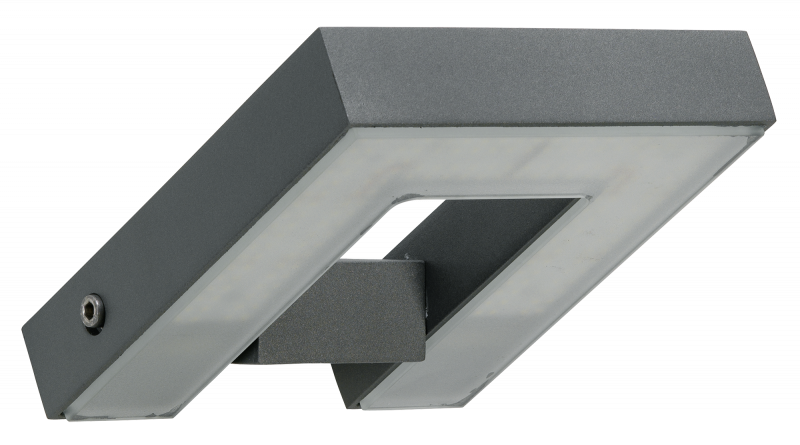

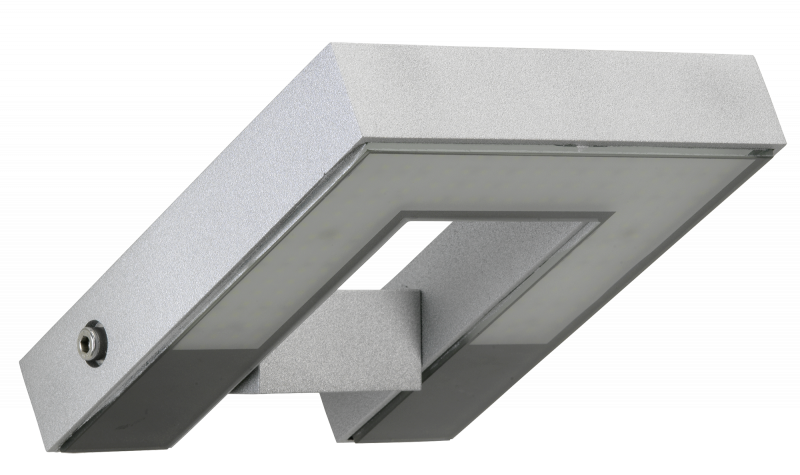

Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass structured
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Beam angle | Open beam/diffuse |
| Surface protection housing | Lacquered |
| Colour of light | White |
| Connection type | Screwed terminal |
| Power factor | 0.9 |
| Conductor cross section | 2.5 mm² |
| Exchangeable control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Light type | Wandleuchte |
| Light outlet | 1-seitig |
| Max. system power | 16 W |
| Number of poles | 3 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Colour rendering index CRI | 80-89 |
| Photobiological safety according to EN 62471 | RG1 |
| Mounting method | Wand |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Type of wiring | Ending |
| With control gear | Yes |
| Suitable for surface mounting | Yes |
| Light outlet | Direct |
| Degree of protection (IP) | IP54 |
| No dim function | Yes |
| Nominal voltage | 230 V |
| Dimming depending on control gear | Yes |

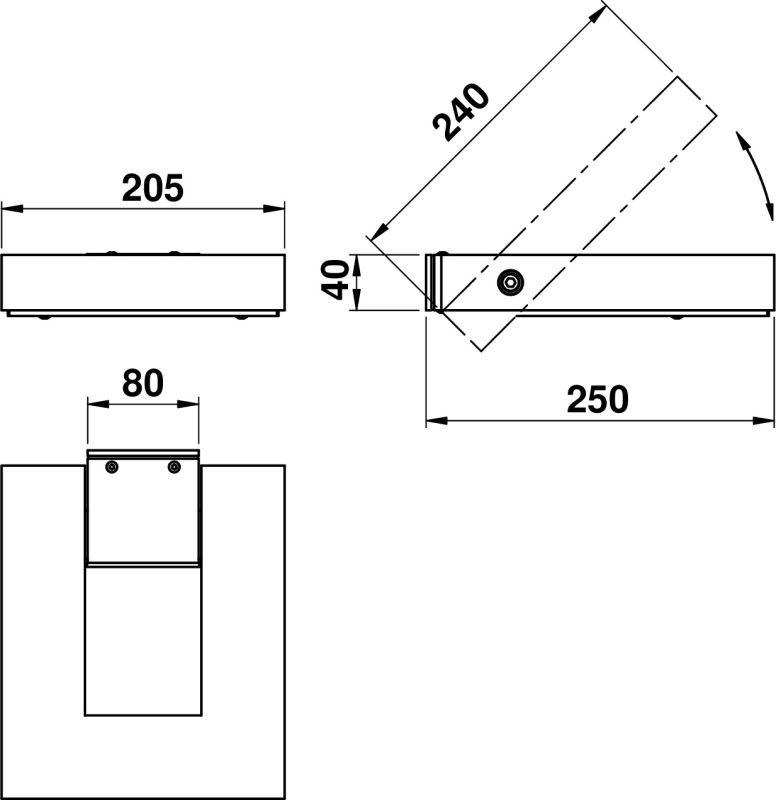

| Height/depth | 490 mm |
| Width | 205 mm |
| Length | 250 mm |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Voltage type | AC |
| Type of control gear | LED operating device voltage-controlled |
| Shape | Eckig |
Documents and files
Spare parts
| 90220441 - G 441, ESG glass pane | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Beam angle | Open beam/diffuse |
| Surface protection housing | Lacquered |
| Colour of light | White |
| Connection type | Screwed terminal |
| Power factor | 0.9 |
| Conductor cross section | 2.5 mm² |
| Exchangeable control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Light type | Wandleuchte |
| Light outlet | 1-seitig |
| Max. system power | 16 W |
| Number of poles | 3 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Colour rendering index CRI | 80-89 |
| Photobiological safety according to EN 62471 | RG1 |
| Mounting method | Wand |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Type of wiring | Ending |
| With control gear | Yes |
| Suitable for surface mounting | Yes |
| Light outlet | Direct |
| Degree of protection (IP) | IP54 |
| No dim function | Yes |
| Nominal voltage | 230 V |
| Dimming depending on control gear | Yes |
| Height/depth | 490 mm |
| Width | 205 mm |
| Length | 250 mm |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Voltage type | AC |
| Type of control gear | LED operating device voltage-controlled |
| Shape | Eckig |
