Article number Select a color, please

Wall and ceiling light

type ..6421

173,80199,90

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

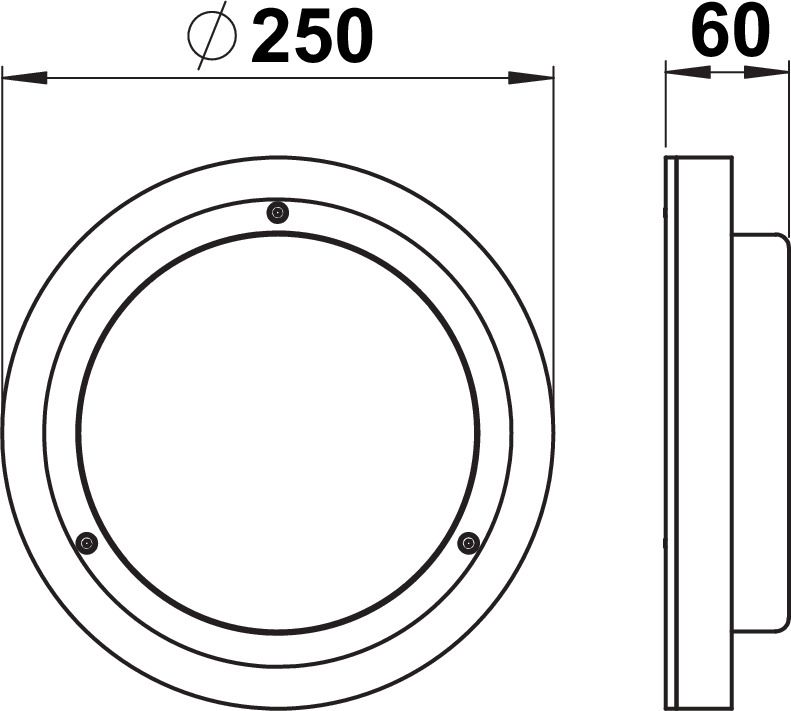

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626421
Offertext
For: 666421
Offertext
For: 686421
Offertext
For: 696421
Full catalog 21 / 22
Spare parts
90210124 - G 124, clear glass matt show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

With control gear

No, Yes

Type of control gear

LED operating device voltage-controlled

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Colour rendering index CRI

80-89

Max. system power

12 W

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP54

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Surface protection housing

Lacquered

Exchangeable control gear

No, Yes

Suitable for lamp power

8 W

Dimming depending on control gear

Yes

Colour of light

White

Power factor

0.9

Colour temperature

3000 K

Length

60 mm

Outer diameter

250 mm

Type of wiring

Ending

Number of poles

3

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Decke, Wand

Light output

1-seitig

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Style

Modern

Rated luminous flux according to IEC 62722-2-1

1200 lm

Conductor cross section

2.5 mm²

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
