Wall and ceiling light

type ..6422

197,10226,70

Clear
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

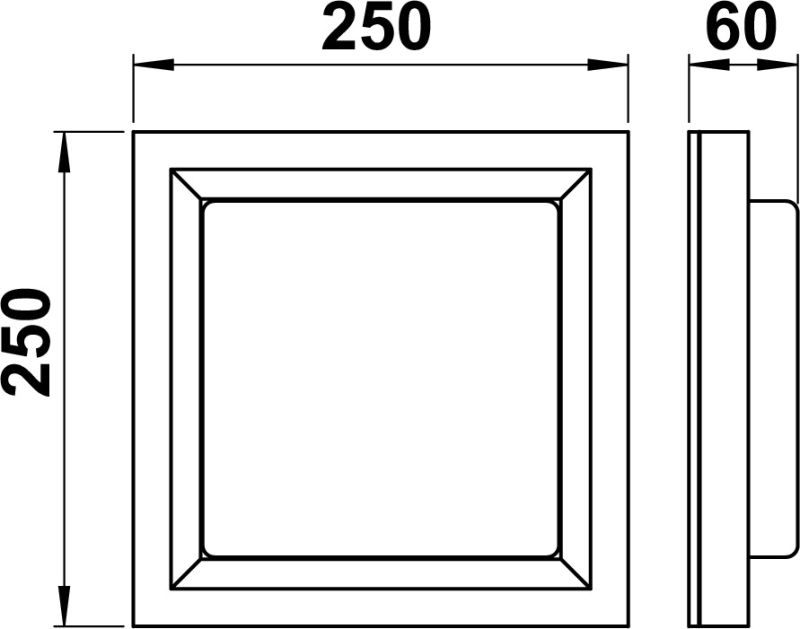

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626422
Offertext
For: 666422
Offertext
For: 686422
Offertext
For: 696422
Full catalog 21 / 22
Spare parts
90210126 - G 126, clear glass matt show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

With control gear

No, Yes

Voltage type

AC

Colour housing

Anthracite, Black, Silver, White

With light source

Yes

Lamp type

LED exchangeable

Type of control gear

LED operating device voltage-controlled

Material housing

Aluminium

Protection class

I

Dimming phase cut-off

Yes

Material cover

Glass opal

Beam angle

Open beam/diffuse

Energy efficiency class of the provided exchangeable built-in lamp

E

Power factor

0.9

No dim function

Yes

Light outlet

Direct

Light sharing

Symmetric

Colour temperature

3000 K

Degree of protection (IP)

IP54

Style

Modern

Connection type

Screwed terminal

Width

250 mm

Colour rendering index CRI

80-89

Type of wiring

Ending

Suitable for lamp power

8 W

Dimming depending on control gear

Yes

Max. system power

12 W

Rated luminous flux according to IEC 62722-2-1

1200 lm

Stroboscope effect value SVM

0.4

Exchangeable control gear

No, Yes

Conductor cross section

2.5 mm²

Number of poles

3

Height/depth

250 mm

Mounting method

Decke, Wand

Light outlet

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Length

60 mm

Nominal voltage

230 V

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig
