Data sheet
Article number
Select a color, please
Wall and ceiling light
type ..6403
€274,30 – €315,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium

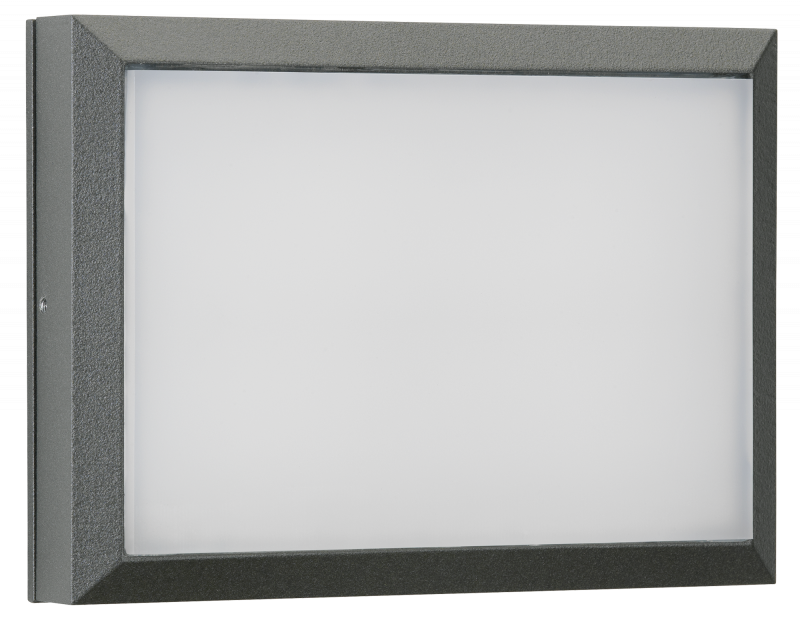

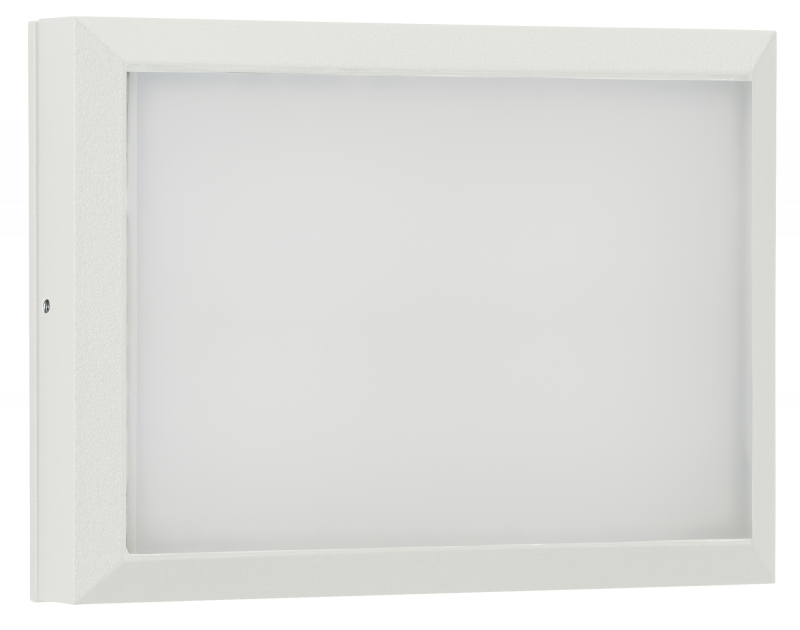

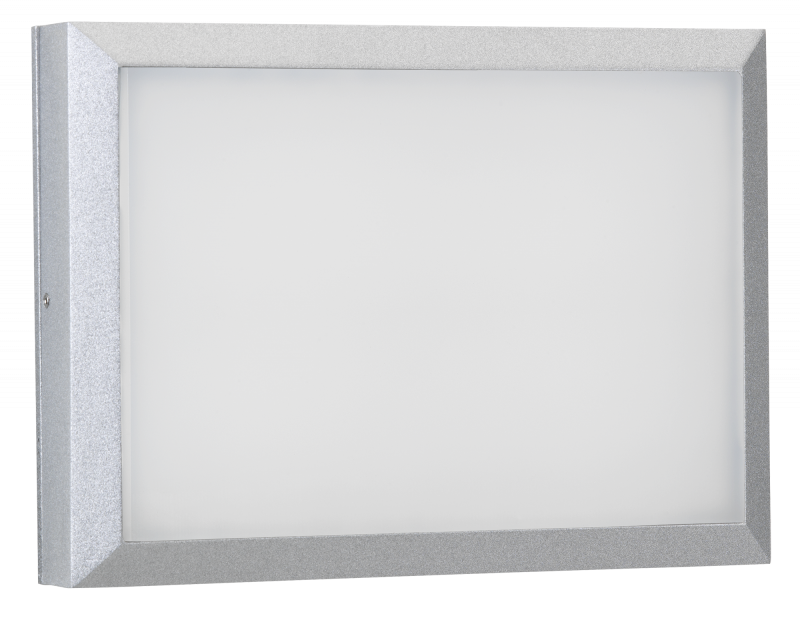

Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Surface protection housing | Lacquered |
| Light outlet | 1-seitig |
| Mounting method | Wand |
| Shape | Eckig |
| Beam angle | Open beam/diffuse |
| Degree of protection (IP) | IP54 |
| Impact strength | IK08 |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Protection class | I |
| Type of wiring | Ending |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| No dim function | Yes |
| Light sharing | Symmetric |

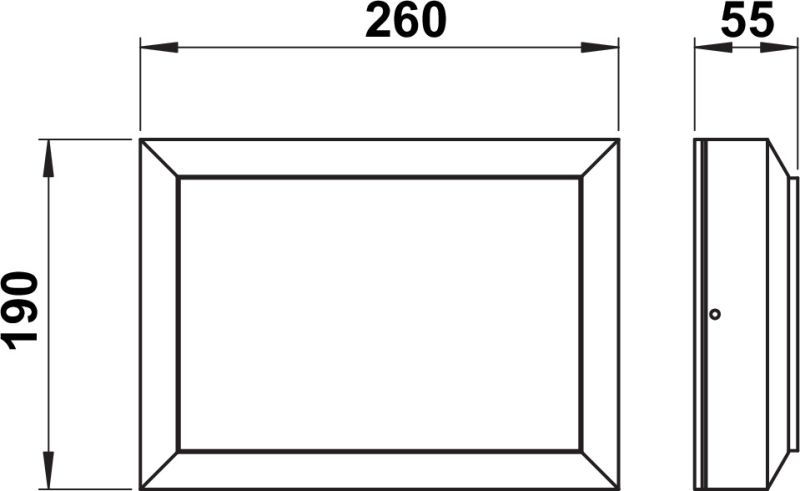

| Length | 55 mm |
| Height/depth | 190 mm |
| Height | < 700 mm |
| Light outlet | Direct |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | No, Yes |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Style | Modern |
| Power factor | 0.9 |
| With control gear | No, Yes |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Max. system power | 16 W |
| Dimming phase cut-off | Yes |
| Colour rendering index CRI | 80-89 |
| Colour of light | White |
| Dimming depending on control gear | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Width | 260 mm |
| Suitable for surface mounting | Yes |
| Suitable for number of lamps | 1 |
Documents and files
Spare parts
| 90270457 - G 457, acrylic disc | show |
