Article number Select a color, please

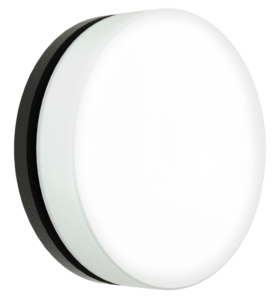

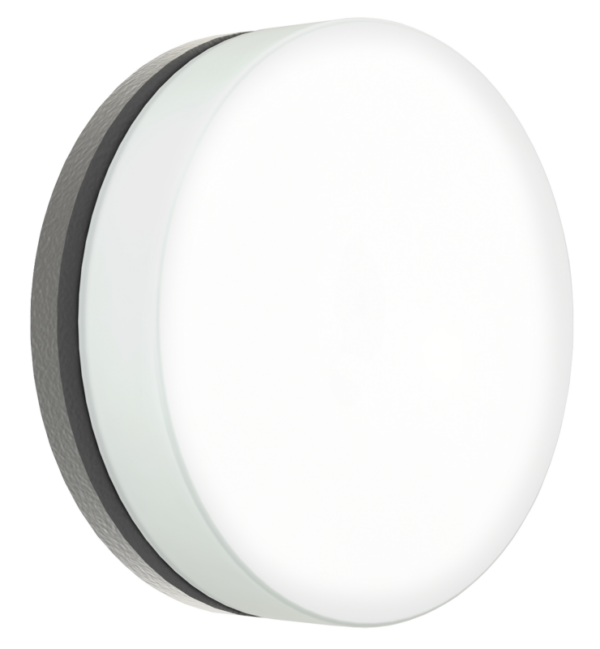

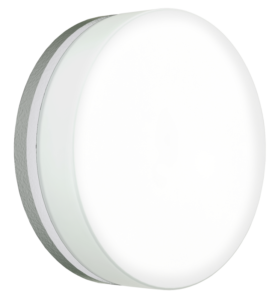

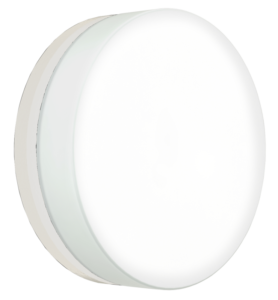

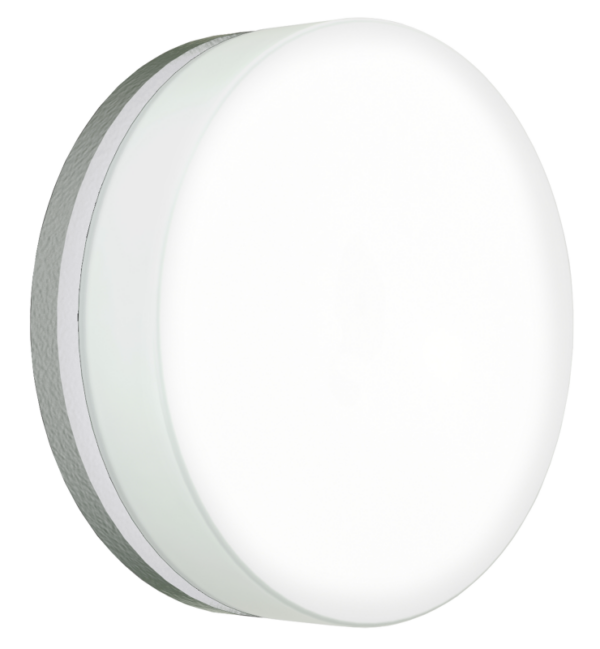

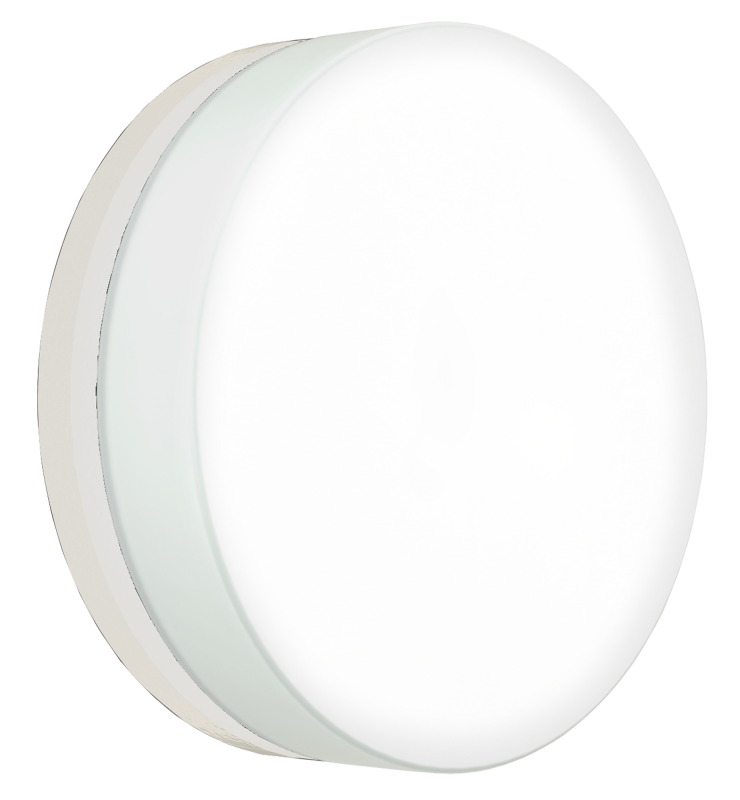

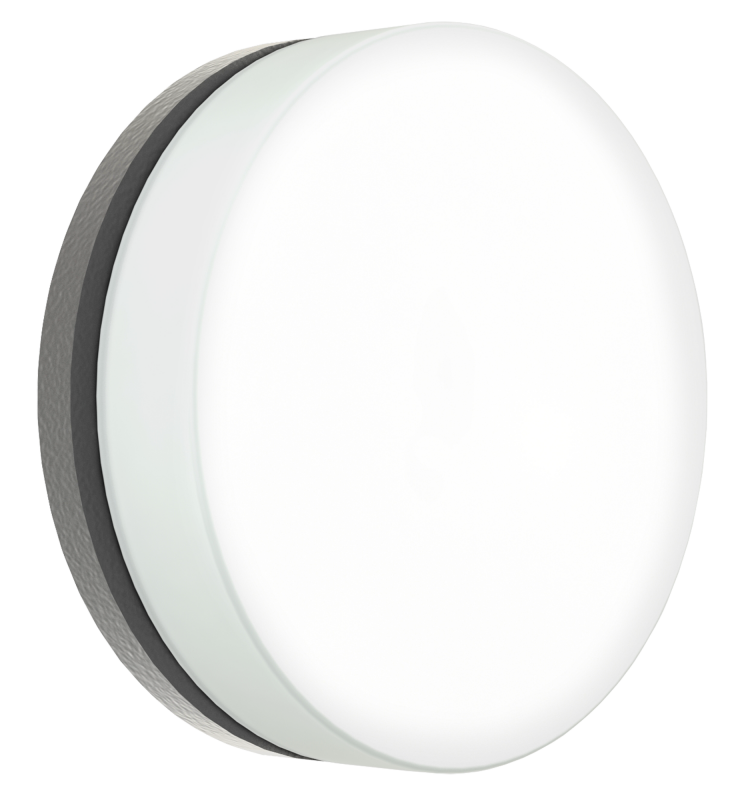

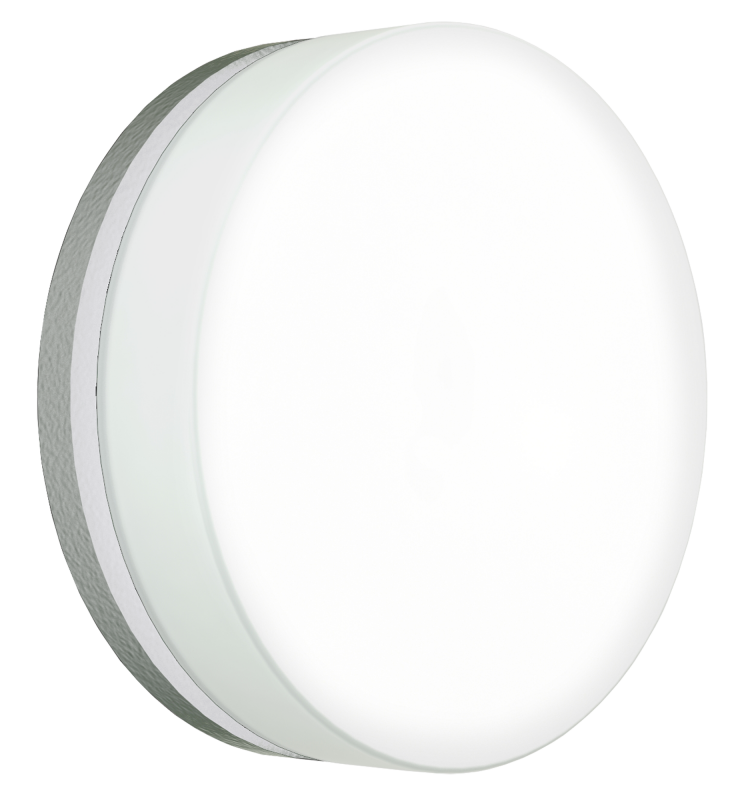

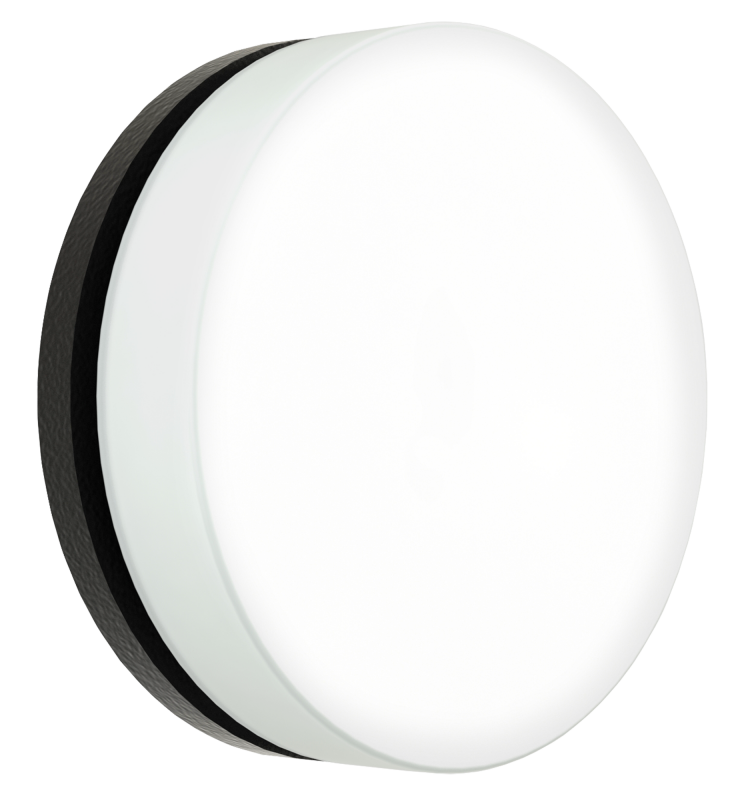

Wall and ceiling light

type ..6307

160,60185,00

Clear
Features
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

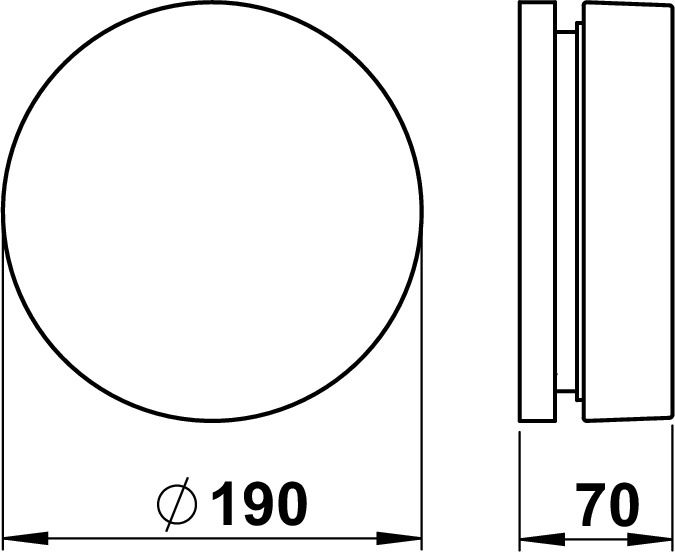

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626307
Offertext
For: 666307
Offertext
For: 686307
Offertext
For: 696307
Full catalog 21 / 22
Spare parts
90210410 - G 410, opal glass matt d = 190 mm show

Additional information

Weight N/A
Suitable for wall mounting

Yes

With control gear

No, Yes

Type of control gear

LED operating device voltage-controlled

Lamp type

LED exchangeable

Suitable for ceiling mounting

Yes

Power factor

0.9

Shape

Eckig

Dimming depending on control gear

Yes

Suitable for surface mounting

Yes

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

Height/depth

70 mm

Suitable for lamp power

12 W

Rated luminous flux according to IEC 62722-2-1

1200 lm

Max. system power

12 W

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Dimming phase cut-off

No, Yes

Protection class

I

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Exchangeable control gear

No, Yes

Stroboscope effect value SVM

0.4

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Height

< 700 mm

Style

Modern

Type of wiring

Ending

Surface protection housing

Lacquered

Outer diameter

190 mm

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP65

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Mounting Type

Decke, Wand

No dim function

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Light output

1-seitig

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
