Article number Select a color, please

Wall floodlight

type ..2381

351,70404,30

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
32 W
Rated luminous flux acc. IEC 62722-2-1
4480 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

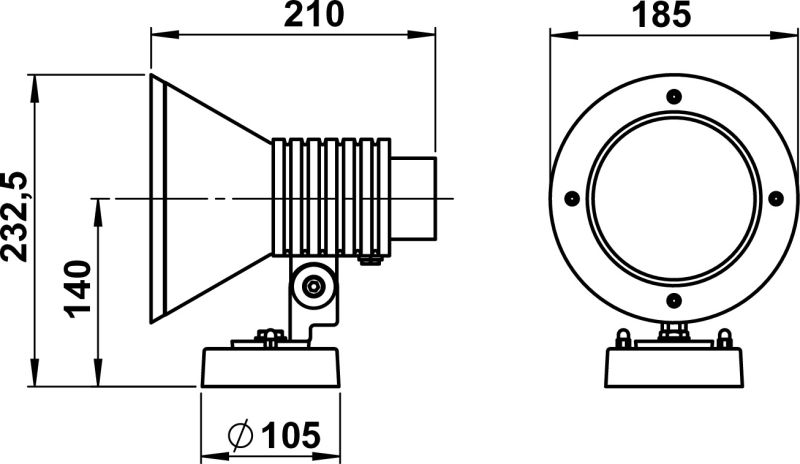

Dimensioned drawing
Light distribution curve
Offertext
For: 662381
Offertext
For: 682381
Offertext
For: 692381
Full catalog 21 / 22
Spare parts
90220338 - G 338, single-pane safety glass show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 662381
show
681005 - Corner bracket round type ..1005, White
Für: 682381
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 692381
show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Suitable for lamp power

32 W

Voltage type

AC

Suitable for ceiling mounting

Yes

Suitable for pedestal/floor mounting

Yes

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Energy efficiency class of the provided exchangeable built-in lamp

A+

Adjustability

Rotating and swivelling

Surface protection

Lacquered

Control gear included

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Black, Silver, White

Dimming phase cut-off

Yes

Material housing

Aluminium

Protection class

I

Outer diameter

185 mm

Light sharing

Symmetric

Colour temperature

3000 K

Beam angle

Medium beam 21-40°

Degree of protection (IP)

IP54

Height/depth

232.5 mm

Length

210 mm

Colour rendering index CRI

80-89

Max. system power

32 W

Light output

Direct

Luminous flux

4480 lm

Rated luminous flux acc. IEC 62722-2-1

4480 lm

Power factor

0.9

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Colour of light

White

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

No dim function

Yes

Type of wiring

Ending

Suitable for wall mounting

Yes

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm
