Article number Select a color, please

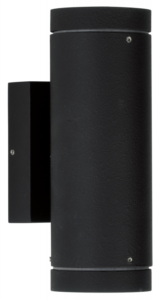

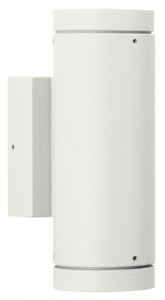

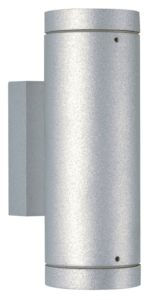

Wall floodlight

type ..2198

234,10269,60

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Height/depth

200 mm

Suitable for pedestal/floor mounting

Yes

Adjustability

Not adjustable

Nominal voltage

230 V

Light output

Direct/indirect

Surface protection

Lacquered

Voltage type

AC

Dimming depending on control gear

Yes

Type of control gear

Not required

Beam angle

Medium beam 21-40°

Suitable for number of lamps

2

Type of wiring

Ending

Max. system power

100 W

Power factor

1

Dimming phase cut-off

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Light sharing

Symmetric

Connectable conductor cross section

0.75 – 2.5 mm²

No dim function

Yes

Number of poles

3

Protection class

I

Connection type

Screwed terminal

Length

105 mm

Outer diameter

70 mm

Luminous flux

0 – 3000 lm

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Degree of protection (IP)

IP54

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Shape

Eckig

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 24 KB

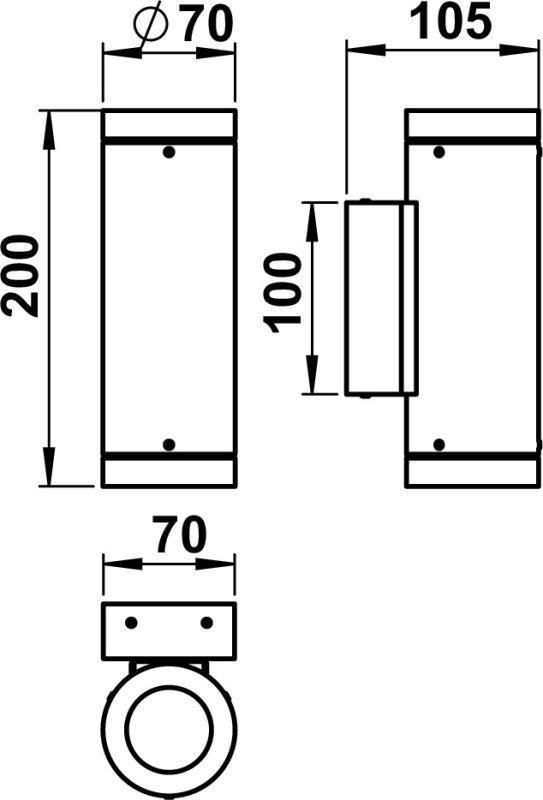

Dimensioned drawing
PDF | 41 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 662198
TXT | 287 B
Offertext
For: 682198
TXT | 287 B
Offertext
For: 692198
TXT | 264 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220165 - G 165, borosilicate round discs show
Accessories
90750105 - LED PAR 16 show
