Data sheet

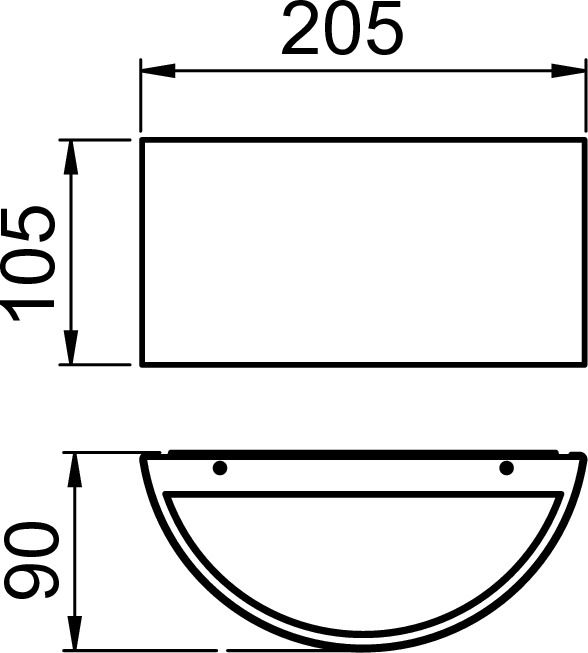

Wall lamp Stainless steel Dimensioned drawing Article 696346
Wall lamp Stainless steel Dimensioned drawing Article 696346
Article number 696346

Wall lamp

type ..6346

€334,50

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

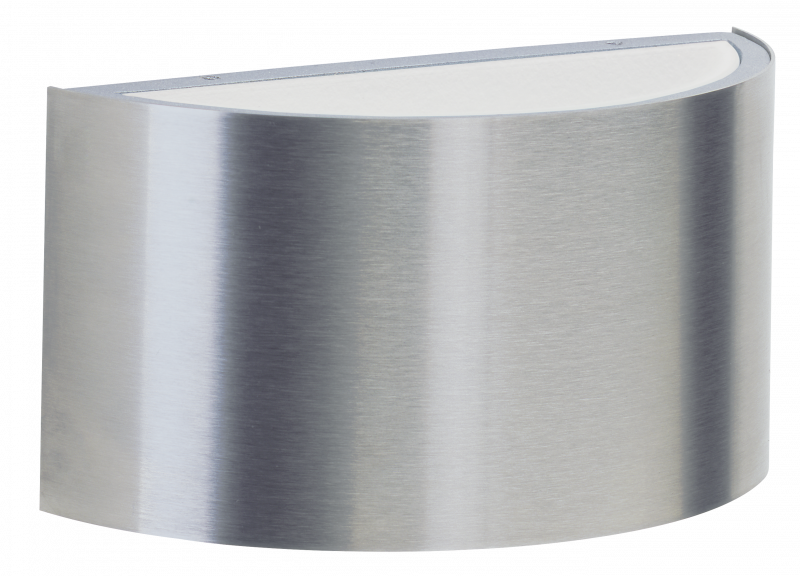

Albert wall lamp 696346
with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium.2 x LED 5,8 W, warm white 3000 K, 430 IP 44 each – protection class : 105 x 205 x 90 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
11.6 W
Rated luminous flux according to IEC 62722-2-1
860 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 25.05 KB
Dimensioned drawing
download PDF 91.67 KB
Light distribution curve - Eulumdat/LDT
download LDT 4.26 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220317 - G 317, milk flashed glass show

Additional information

Weight 1,50 kg
Power factor

0.9
Dimming depending on control gear

Yes
With control gear

Yes
Lamp type

LED exchangeable
Suitable for number of lamps

2
With light source

Yes
Material housing

Stainless steel
Colour housing

Stainless steel
Material cover

Glass opal
Energy efficiency class of the provided exchangeable built-in lamp

E
Suitable for surface mounting

Yes
Light sharing

Symmetric
Height/depth

105 mm
Width

205 mm
Length

90 mm
No dim function

Yes
Nominal voltage

230 V
Colour rendering index CRI

80-89
Type of wiring

Ending
Number of poles

3
Conductor cross section

2.5 mm²
Voltage type

AC/DC
Lowest energy efficiency class of the exchangeable lamp

E
Degree of protection (IP)

IP44
Protection class

I
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Exchangeable control gear

Yes
Suitable for wall mounting

Yes
Surface protection housing

Untreated
Light output

Direct
Rated luminous flux according to IEC 62722-2-1

860 lm
Colour of light

White
Colour temperature

3000 K
Style

Edelstahl, Modern
Mounting Type

Wand
Light type

Wandleuchte
Max. system power

11.6 W
Highest energy efficiency class of the exchangeable lamp

A++
Unified Glare Ratio (UGR)

1
Colour consistency (McAdam ellipse)

SDCM3
Connection type

Screwed terminal
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C16

30
Photobiological safety according to EN 62471

RG1
Height

< 700 mm
Type of control gear

LED operating device voltage-controlled
Suitable for lamp power

11.6 W
Light output

1-seitig
Stroboscope effect value SVM

0.4
Beam angle

Open beam/diffuse
Flickering value Pst LM

1
Shape

Eckig
