Article number Select a color, please

Wall floodlight

type ..2307

365,70420,50

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3 W
Rated luminous flux according to IEC 62722-2-1
660 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

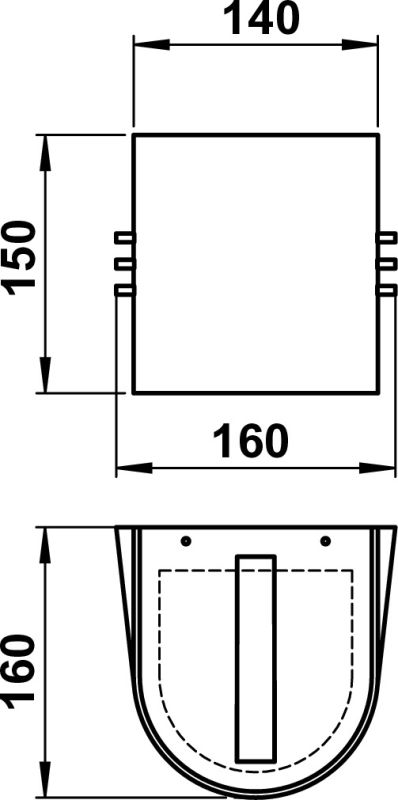

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662307
Offertext
For: 682307
Offertext
For: 692307
Full catalog 21 / 22
Spare parts
90220342 - G 342, prism glass, borosilicate show
90220343 - G 343, single-pane safety glass show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Material cover

Glass transparent

Suitable for pedestal/floor mounting

Yes

Protection class

I

Light sharing

Symmetric

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

2

Light output

Direct/indirect

Beam angle

Medium beam 21-40°

Material housing

Aluminium

Length

160 mm

Colour temperature

3000 K

Degree of protection (IP)

IP44

Surface protection

Lacquered

With control gear

Yes

Adjustability

Not adjustable

Dimming phase cut-off

Yes

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Black, Silver, White

Suitable for wall mounting

Yes

Shape

Eckig

Flickering value Pst LM

1

Height/depth

150 mm

Max. system power

6 W

Colour rendering index CRI

80-89

Energy efficiency class of the provided exchangeable built-in lamp

E

Number of poles

3

Rated luminous flux according to IEC 62722-2-1

660 lm

Light output

2-seitig

Height

< 700 mm

Colour of light

White

Light distributor

Focal lens

Luminous flux

660 lm

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Colour consistency (McAdam ellipse)

SDCM3

Exchangeable control gear

Yes

Type of wiring

Ending

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Suitable for lamp power

3 W

Power factor

0.9

Width

140 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

No dim function

Yes
