Article number Select a color, please

Wall floodlight

type ..2370

309,80356,30

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3 W
Rated luminous flux according to IEC 62722-2-1
660 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

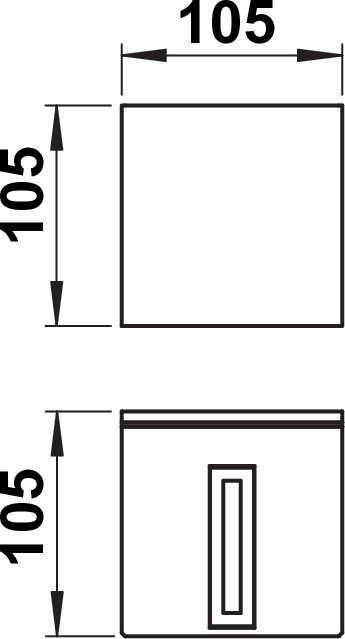

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622370
Offertext
For: 662370
Offertext
For: 682370
Offertext
For: 692370
Full catalog 21 / 22
Spare parts
90220451 - G 451, borosilicate prism glass show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Material cover

Glass transparent

Adjustability

Not adjustable

Lamp type

LED exchangeable

With light source

Yes

Colour housing

Anthracite, Black, Silver, White

Type of control gear

LED operating device voltage-controlled

Suitable for number of lamps

2

Nominal voltage

230 V

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Length

105 mm

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Material housing

Aluminium

Width

105 mm

With control gear

Yes

Suitable for pedestal/floor mounting

Yes

Dimming phase cut-off

Yes

Voltage type

AC/DC

Surface protection

Lacquered

Stroboscope effect value SVM

0.4

Type of wiring

Ending

Colour rendering index CRI

80-89

Colour of light

White

Light output

Direct/indirect

Number of poles

3

Rated luminous flux according to IEC 62722-2-1

660 lm

Power factor

0.9

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

No dim function

Yes

Colour temperature

3000 K

Light sharing

Symmetric

Luminous flux

660 lm

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker C16

30

Max. number of luminaires per miniature circuit breaker B16

20

Suitable for lamp power

3 W

Unified Glare Ratio (UGR)

1

Protection class

I

Height/depth

105 mm

Exchangeable control gear

Yes

Light distributor

Focal lens

Max. system power

6 W

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes
