Article number Select a color, please

Wall floodlight

type ..2371

316,90364,40

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3 W
Rated luminous flux according to IEC 62722-2-1
660 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

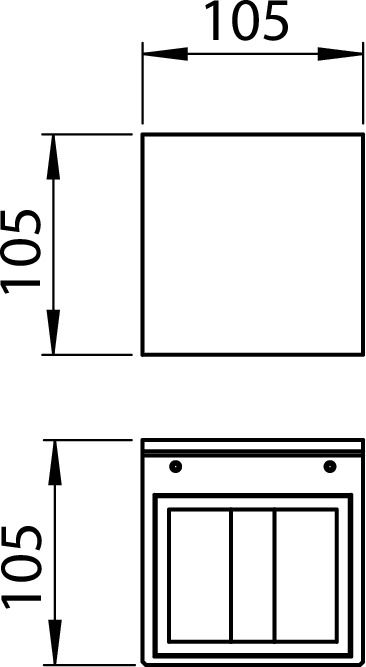

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622371
Offertext
For: 662371
Offertext
For: 682371
Offertext
For: 692371
Full catalog 21 / 22
Spare parts
90220451 - G 451, borosilicate prism glass show
90220452 - G 452, rectangular pane clear ESG show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Type of control gear

LED operating device voltage-controlled

Material cover

Glass transparent

Material housing

Aluminium

Adjustability

Not adjustable

Lamp type

LED exchangeable

With light source

Yes

Colour housing

Anthracite, Black, Silver, White

Max. number of luminaires per miniature circuit breaker B16

20

Suitable for number of lamps

2

Nominal voltage

230 V

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Length

105 mm

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Width

105 mm

With control gear

Yes

Suitable for pedestal/floor mounting

Yes

Dimming phase cut-off

Yes

Voltage type

AC/DC

Stroboscope effect value SVM

0.4

Flickering value Pst LM

1

Surface protection

Lacquered

Colour rendering index CRI

80-89

Colour of light

White

Light output

Direct/indirect

Number of poles

3

Rated luminous flux according to IEC 62722-2-1

660 lm

Power factor

0.9

Type of wiring

Ending

No dim function

Yes

Colour temperature

3000 K

Light sharing

Symmetric

Luminous flux

660 lm

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker C16

30

Beam angle adjustable

Continuously variable

Suitable for lamp power

3 W

Unified Glare Ratio (UGR)

1

Protection class

I

Height/depth

105 mm

Light distributor

Focal lens

Max. system power

6 W

Colour consistency (McAdam ellipse)

SDCM3

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Shape

Eckig
