Article number Select a color, please

Wall floodlight

type ..2372

299,60344,60

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3 W
Rated luminous flux according to IEC 62722-2-1
660 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Width

105 mm

With control gear

Yes

Adjustability

Not adjustable

Suitable for pedestal/floor mounting

Yes

Voltage type

AC/DC

Max. number of luminaires per miniature circuit breaker B16

20

Type of control gear

LED operating device voltage-controlled

Suitable for number of lamps

2

Nominal voltage

230 V

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Length

105 mm

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Dimming phase cut-off

Yes

Colour rendering index CRI

80-89

Colour of light

White

Light output

Direct/indirect

Number of poles

3

No dim function

Yes

Light sharing

Symmetric

Luminous flux

660 lm

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Protection class

I

Height/depth

105 mm

Max. system power

6 W

Colour consistency (McAdam ellipse)

SDCM3

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Flickering value Pst LM

1

Power factor

0.9

Type of wiring

Ending

Stroboscope effect value SVM

0.4

Beam angle adjustable

Continuously variable

Max. number of luminaires per miniature circuit breaker C16

30

Surface protection

Lacquered

Unified Glare Ratio (UGR)

1

Shape

Eckig

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 24 KB

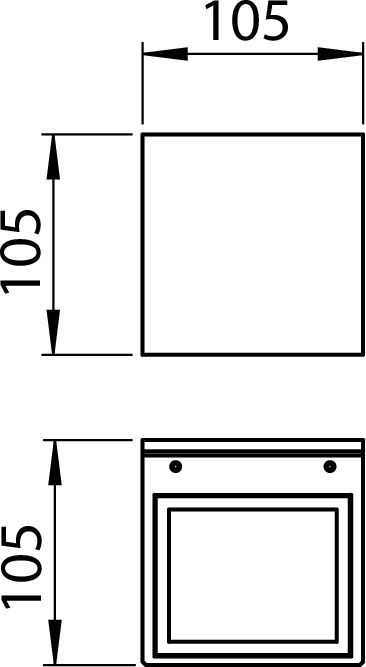

Dimensioned drawing
PDF | 122 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Offertext
For: 622372
TXT | 186 B
Offertext
For: 662372
TXT | 181 B
Offertext
For: 682372
TXT | 211 B
Offertext
For: 692372
TXT | 212 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220452 - G 452, rectangular pane clear ESG show
