Data sheet
Article number
Select a color, please
Bollard light
type ..2025
€489,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

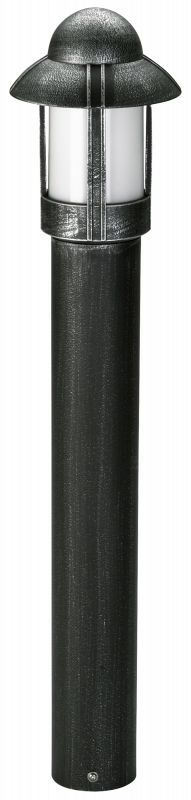

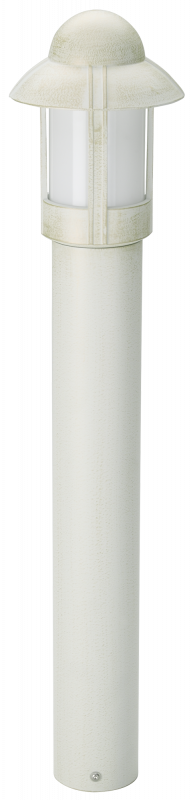

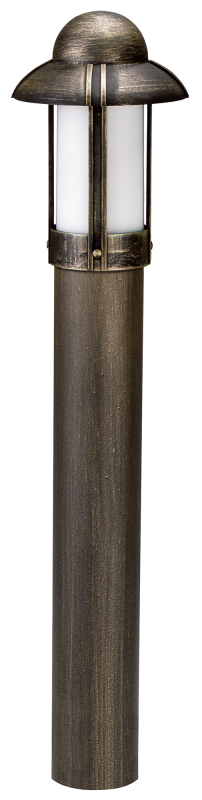

Black-Silver, Brown-Brass, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

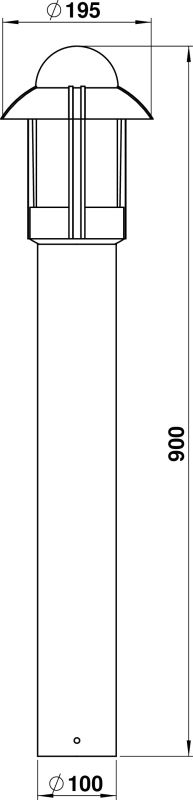

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 602025
Offertext
For: 652025
Offertext
For: 672025
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Surface protection | Lacquered |
| Material cover | Glass opal |
| Colour housing | Black-Silver, Brown-Brass, White-Gold |
| Voltage type | AC |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Nominal voltage | 230 V |
| Lamp holder | E27 |
| Max. system power | 75 W |
| With base plate | Yes |
| Height/depth | 900 mm |
| Protection class | I |
| Type of wiring | Suitable for through wiring |
| Diameter | 195 mm |
| Width | 100 mm |
| Lamp type | Incandescent lamp |
| Type of control gear | Not required |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Degree of protection (IP) | IP44 |
| Number of poles | 3 |
| Height | 700 – 1000 mm |
| Light sharing | Symmetric |
| Power factor | 1 |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Suitable for lamp power | 1 – 75 W |
| Light output | 2-seitig |
| Style | Country House, Landhaus |
| Light type | Standleuchte |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Shape | Angular, Eckig |
