Article number Select a color, please

Wall floodlight

type ..2411

414,70464,30

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
32 W
Rated luminous flux according to IEC 62722-2-1
3200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Length

290 mm

Voltage type

AC

Suitable for ceiling mounting

Yes

Suitable for pedestal/floor mounting

Yes

With control gear

Yes

Adjustability

Swivelling

Reflector

High-gloss

Surface protection

Lacquered

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Dimming phase cut-off

Yes

Degree of protection (IP)

IP54

Beam angle

Medium beam 21-40°

Colour rendering index CRI

80-89

Width

190 mm

Connection type

Screwed terminal

Protection class

I

Flickering value Pst LM

1

Colour consistency (McAdam ellipse)

SDCM3

Suitable for number of lamps

1

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Max. system power

32 W

Number of poles

3

Light output

Direct

Connectable conductor cross section

0.75 – 2.5 mm²

Type of wiring

Ending

Colour of light

White

Luminous flux

3200 lm

Power factor

0.9

Conductor cross section

2.5 mm²

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height/depth

125 mm, 150 mm

Shape

Eckig

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 88 KB

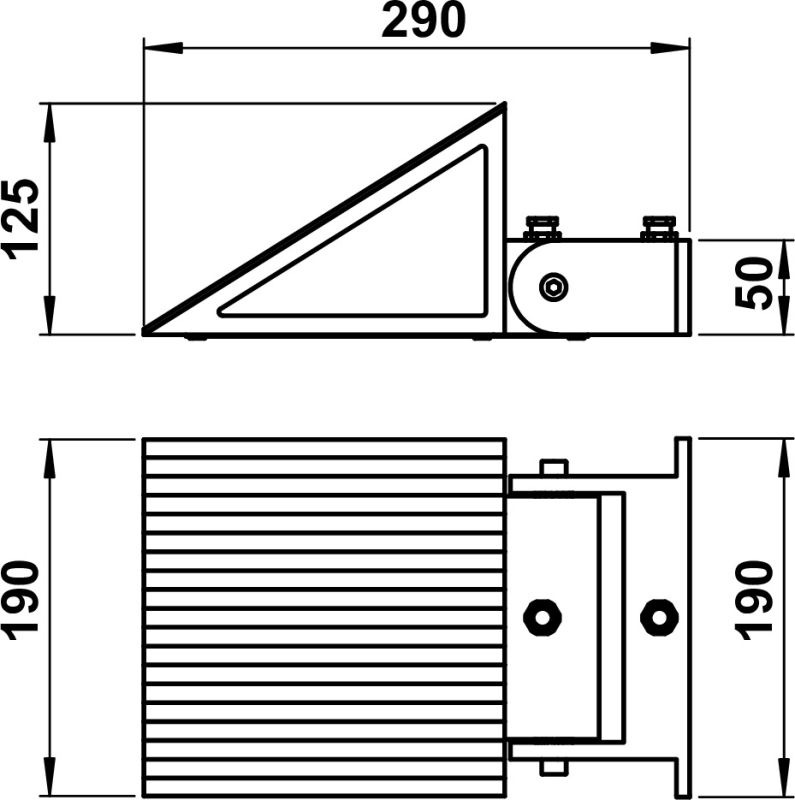

Dimensioned drawing
PDF | 57 KB
Light distribution curve - Eulumdat/LDT
LDT | 89 KB
Offertext
For: 662411
TXT | 299 B
Offertext
For: 682411
TXT | 299 B
Offertext
For: 692411
TXT | 276 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220320 - G 320, borosilicate glass, clear show
