Article number 696131

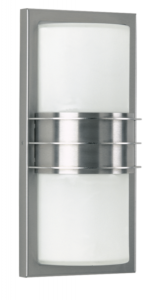

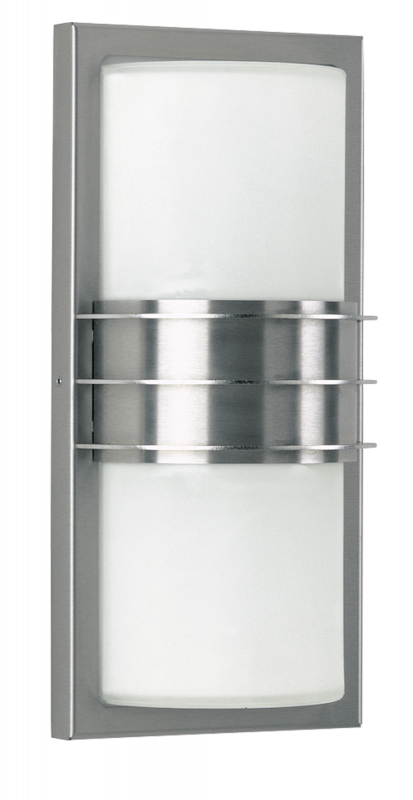

Wall and ceiling light

type ..6131

201,40

Description

Albert wall and ceiling light 696131 in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 2 x incandescent lamps A60 75W,socket E27.protection class IP 44 – protection class : 166 x 355 x 100 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 150 W
Material cover
Glass opal
Documents and files
Assembly instruction

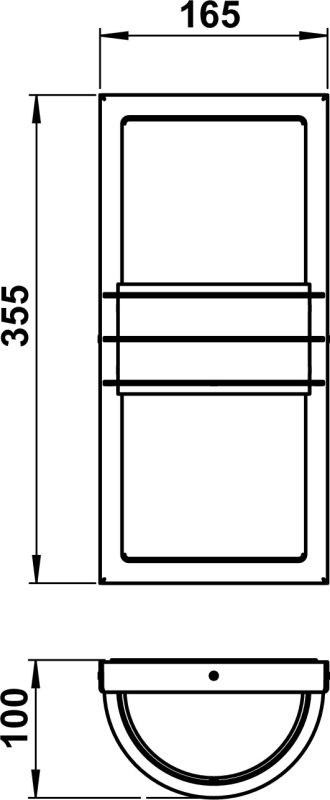

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210293 - G 293, opal glass show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 3,10 kg
Suitable for number of lamps

2

Dimming manufacturer's proprietary system

Yes

Lamp holder

E27

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Protection class

I

Dimming phase cut-off

Yes

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

355 mm

Length

100 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Degree of protection (IP)

IP44

Dimming depending on control gear

Yes

No dim function

Yes

Photobiological safety according to EN 62471

RG1

Power factor

1

Unified Glare Ratio (UGR)

1

Light output

1-seitig

Width

165 mm

Lowest energy efficiency class of the exchangeable lamp

E

Suitable for wall mounting

Yes

Max. system power

150 W

Suitable for lamp power

1 – 150 W

Connection type

Screwed terminal

Style

Edelstahl, Modern

Mounting Type

Wand

Height

< 700 mm

Surface protection housing

Untreated

Beam angle

Open beam/diffuse

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig
