Article number Select a color, please

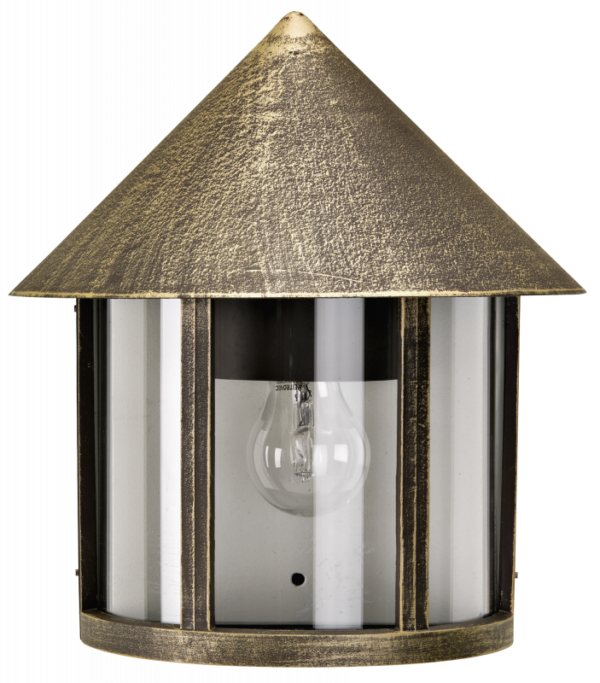

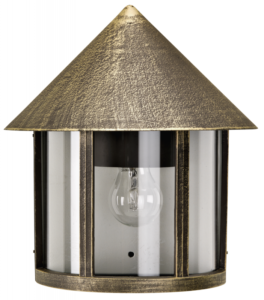

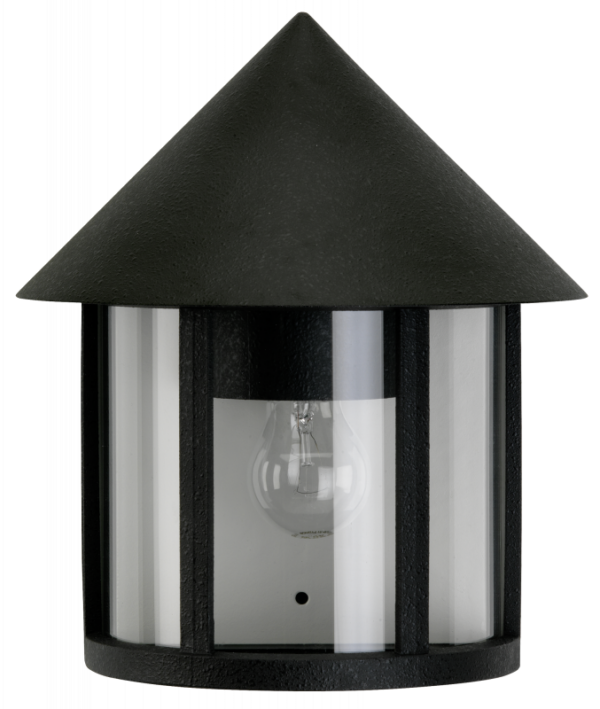

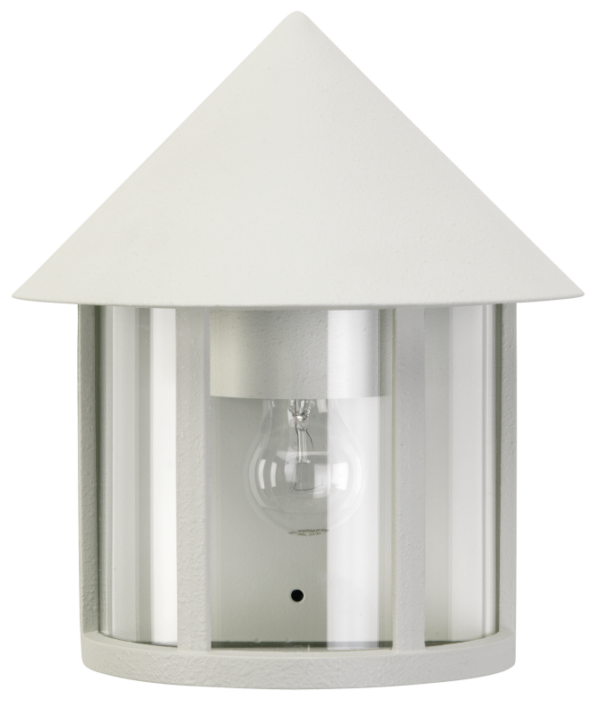

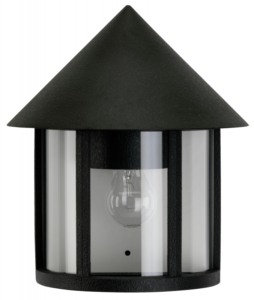

Wall light

type ..3222

198,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Dimming phase cut-on

Yes

Suitable for number of lamps

1

Width

260 mm

Dimming phase cut-off

Yes

Max. system power

75 W

Light output

Direct

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming manufacturer's proprietary system

Yes

Power factor

1

Dimming depending on control gear

Yes

Height/depth

295 mm

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Number of poles

3

Connection type

Screwed terminal

Degree of protection (IP)

IP44

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Length

140 mm

Protection class

I

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

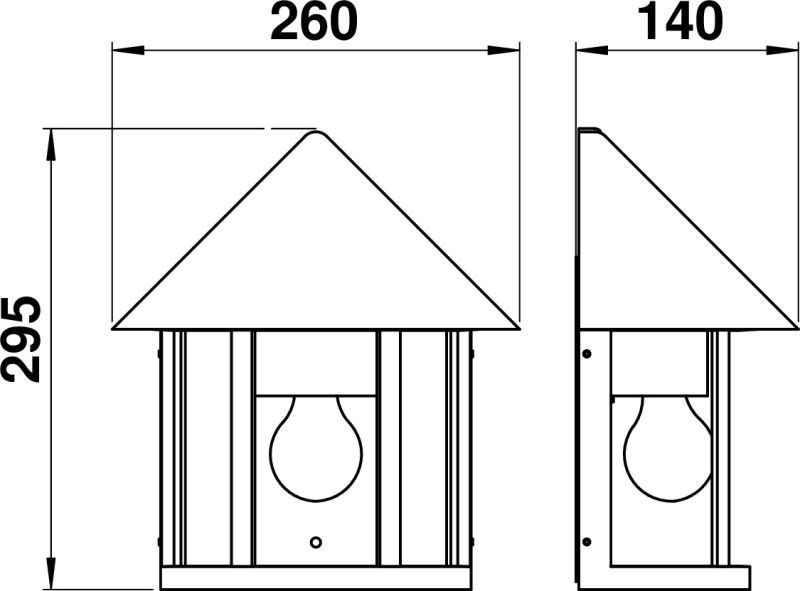

Dimensioned drawing
PDF | 16 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Offertext
For: 653222
TXT | 195 B
Offertext
For: 663222
TXT | 224 B
Offertext
For: 683222
TXT | 224 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260367 - G-367, acrylic tube, clear, half shell show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
