Article number 692414

Wall floodlight

type ..2414

457,00

Description

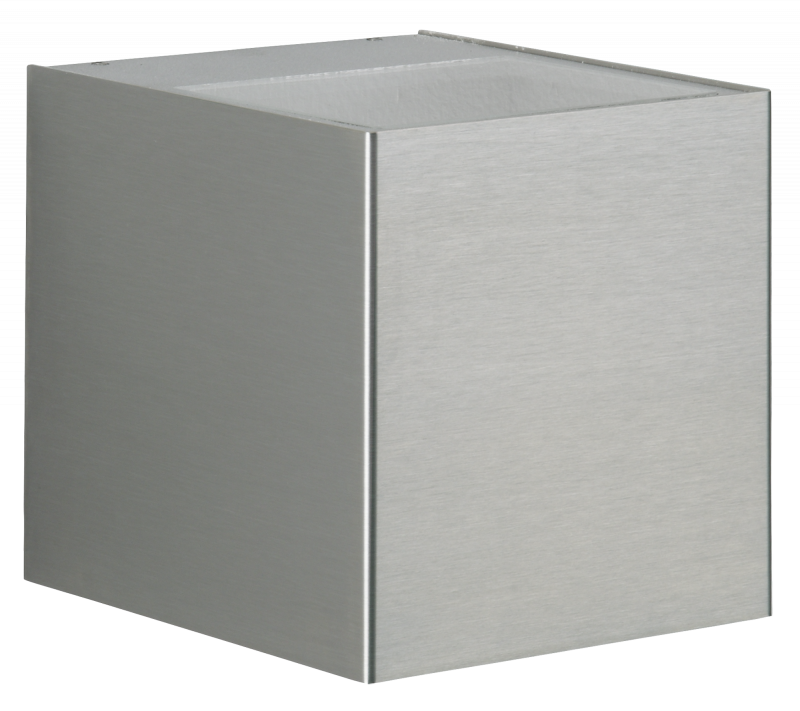

Wall floodlight type no. 2414
Stainless steel, light emission wide/wide, with 2 x LED 6,7 W, 600 lm each, 3000 K with integrated converter AC/DC safety glass clear,

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220437 - G 437, toughened safety glass show

Additional information

Weight 2,80 kg
Light output

2-seitig

Max. system power

13.4 W

Voltage type

AC/DC

Surface brushed

Yes

Suitable for pedestal/floor mounting

Yes

With control gear

Yes

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

2

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for lamp power

6.7 W

Material housing

Stainless steel

Colour temperature

3000 K

Colour rendering index CRI

80-89

Adjustability

Not adjustable

Dimming phase cut-off

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Stainless steel

Protection class

I

Beam angle

Medium beam 21-40°

Stroboscope effect value SVM

0.4

Type of wiring

Ending

Length

155 mm

Colour of light

White

Luminous flux

1200 lm

Rated luminous flux according to IEC 62722-2-1

1200 lm

Flickering value Pst LM

1

Colour consistency (McAdam ellipse)

SDCM3

Light output

Direct/indirect

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker B16

20

Suitable for wall mounting

Yes

Height

< 700 mm

Unified Glare Ratio (UGR)

1

Exchangeable control gear

Yes

Light sharing

Symmetric

Suitable for surface mounting

Yes

Power factor

0.9

Beam angle adjustable

Continuously variable

Width

140 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. number of luminaires per miniature circuit breaker C16

30

Height/depth

150 mm

Degree of protection (IP)

IP44

No dim function

Yes

Shape

Eckig
