Article number Select a color, please

Wall floodlight

type ..2480

301,10346,20

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

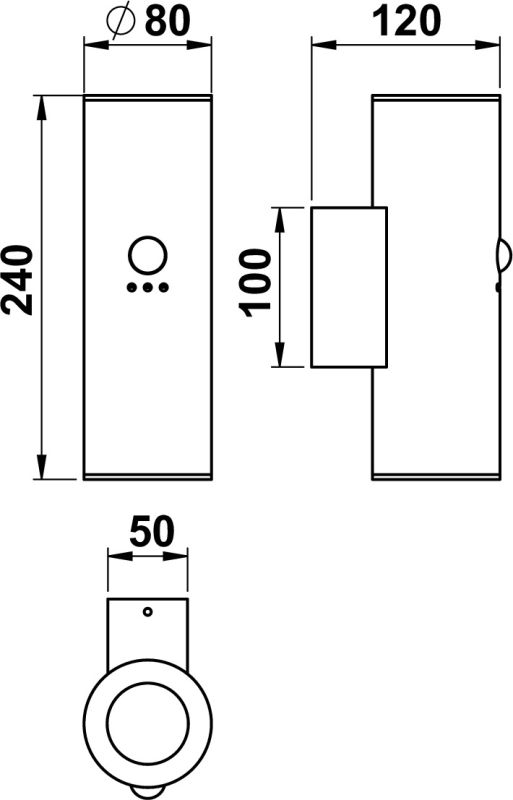

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 622480
Offertext
For: 662480
Offertext
For: 682480
Offertext
For: 692480
Full catalog 21 / 22
Spare parts
90220486 - G 486, single-pane safety glass show
Accessories
90750105 - LED PAR 16 show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Lamp type

HV halogen lamp

Suitable for pedestal/floor mounting

Yes

Material cover

Glass transparent

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Suitable for number of lamps

2

Lamp holder

GU10

With movement sensor

Yes

Adjustability

Not adjustable

Max. system power

100 W

Outer diameter

80 mm

With light sensor

Yes

Colour temperature

3000 K

Colour housing

Anthracite, Black, Silver, White

Material housing

Aluminium

Type of control gear

Not required

Surface protection

Lacquered

Connection type

Screwed terminal

Suitable for lamp power

50 W

Conductor cross section

2.5 mm²

No dim function

Yes

Nominal voltage

230 V

Voltage type

AC

Type of wiring

Ending

Power factor

0.9, 1

Light output

Direct/indirect

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Length

120 mm

Degree of protection (IP)

IP44

Luminous flux

0 – 3000 lm

Number of poles

3

Suitable for wall mounting

Yes

Beam angle

Medium beam 21-40°

Shape

Eckig

Height/depth

240 mm

Light sharing

Symmetric

Connectable conductor cross section

0.75 – 2.5 mm²

Light output

2-seitig

Colour of light

White

Coverage

360 °

Height

< 700 mm

Unified Glare Ratio (UGR)

1

Beam angle adjustable

Continuously variable
