Article number 696112

Wall and ceiling light

type ..6112

128,60

Specifications

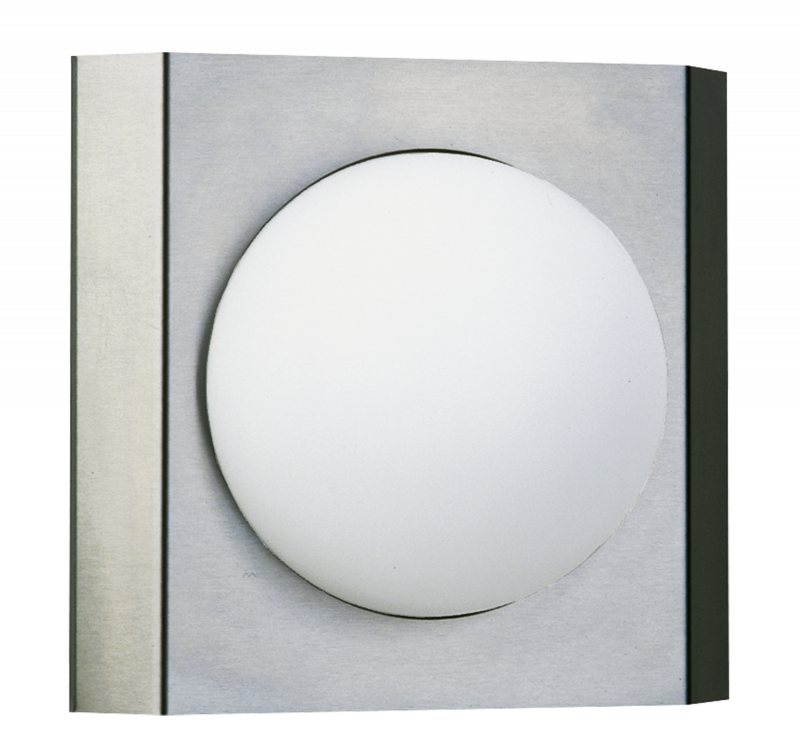

Albert wall and ceiling light 696112
made of stainless steel with opal glass. Fitted for 1 x incandescent lamp A60 75 W, socket E27.degree of protection IP 44 – protection class : 250 x 230 x 140 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 1,60 kg
Dimming manufacturer's proprietary system

Yes

Suitable for number of lamps

1

Conductor cross section

2.5 mm²

Protection class

I

Dimming phase cut-off

Yes

Number of poles

3

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Suitable for surface mounting

Yes

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

230 mm

Length

140 mm

Type of wiring

Ending

Dimming phase cut-on

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Mounting Type

Wand

Dimming depending on control gear

Yes

No dim function

Yes

Photobiological safety according to EN 62471

RG1

Power factor

1

Connection type

Screwed terminal

Degree of protection (IP)

IP44

Suitable for wall mounting

Yes

Max. system power

75 W

Unified Glare Ratio (UGR)

1

Width

250 mm

Height

< 700 mm

Surface protection housing

Untreated

Beam angle

Open beam/diffuse

Light output

1-seitig

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

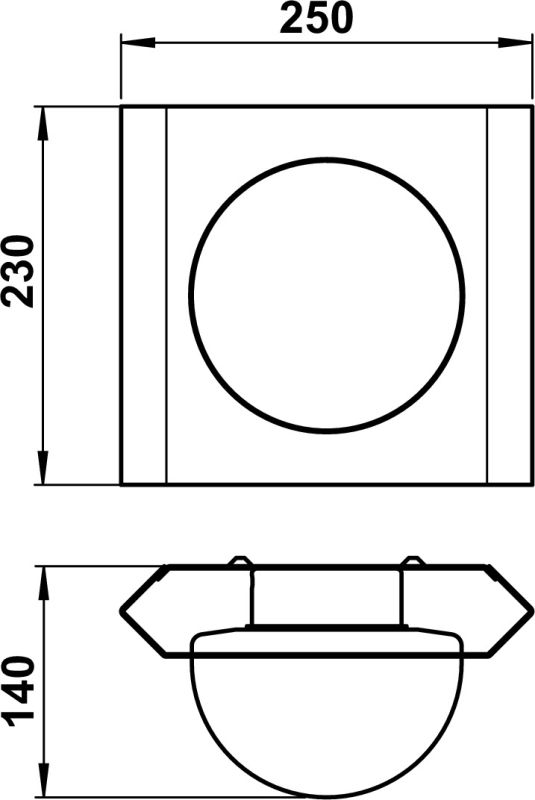

Dimensioned drawing
PDF | 39 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210094 - G 94, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
