Article number Select a color, please

Wall floodlight

type ..2491

272,70296,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

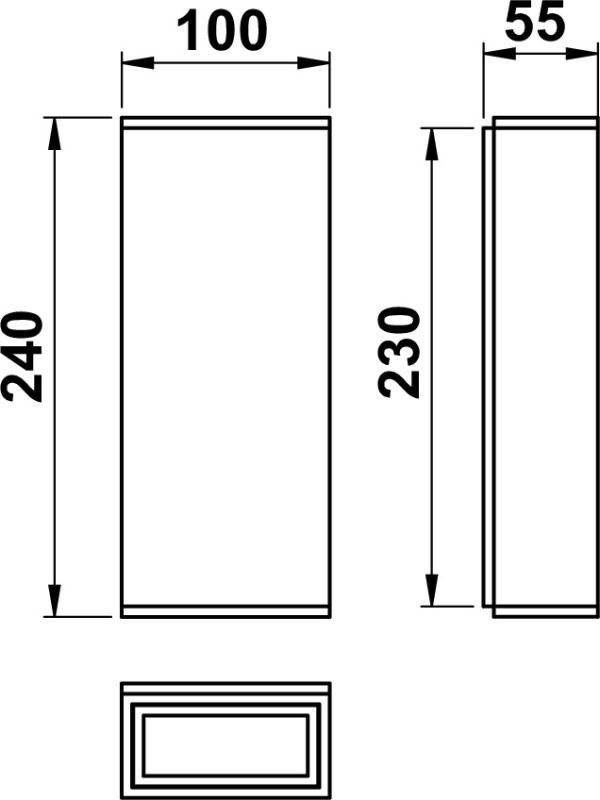

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622491
Offertext
For: 662491
Offertext
For: 682491
Offertext
For: 692491
Full catalog 21 / 22
Spare parts
90220486 - G 486, single-pane safety glass
Für: 662491, 682491, 692491
show
Accessories
90750105 - LED PAR 16 show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Adjustability

Not adjustable

Suitable for pedestal/floor mounting

Yes

Type of control gear

Not required

Colour housing

Anthracite, Black, Silver, White

Suitable for number of lamps

2

Lamp holder

GU10

Dimming phase cut-off

Yes

Nominal voltage

230 V

Voltage type

AC

Lamp type

HV halogen lamp

No dim function

Yes

Material cover

Glass transparent

Dimming depending on control gear

Yes

Suitable for lamp power

50 W

Material housing

Aluminium

Light sharing

Symmetric

Surface protection

Lacquered

Power factor

1

Degree of protection (IP)

IP44

Colour of light

White

Height/depth

240 mm

Length

75 mm

Width

100 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Luminous flux

0 – 3000 lm

Light output

Direct/indirect

Number of poles

3

Max. system power

100 W

Type of wiring

Ending

Colour temperature

3000 K

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Beam angle

Medium beam 21-40°

Shape

Eckig

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Connection type

Screwed terminal

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1
