Article number Select a color, please

Wall lamp

type ..0295

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Documents and files
Assembly instruction

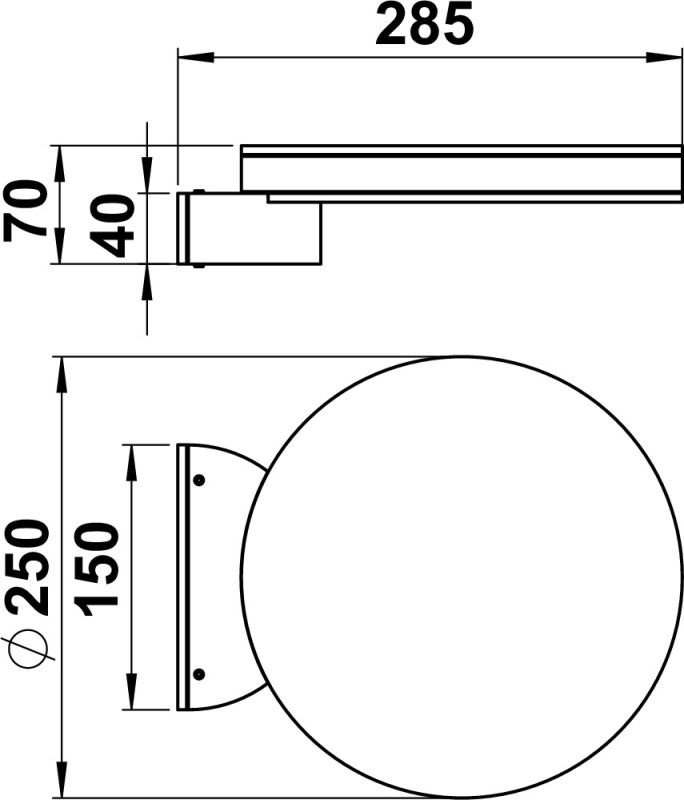

Dimensioned drawing
Offertext
For: 620295
Offertext
For: 660295
Offertext
For: 680295
Offertext
For: 690295
Full catalog 21 / 22
Spare parts
90270477 - G 477, acrylic ring satin show

Additional information

Weight N/A
Beam angle

Open beam/diffuse

With light source

Yes

Degree of protection (IP)

IP44

Light sharing

Symmetric

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Material housing

Aluminium

With control gear

No, Yes

Colour housing

Anthracite, Black, Silver, White

Light output

Direct

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Suitable for lamp power

16 W

No dim function

Yes

Number of poles

3

Outer diameter

250 mm

Height/depth

75 mm

Length

285 mm

Rated luminous flux according to IEC 62722-2-1

1600 lm

Dimming depending on control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Mounting Type

Wand

Suitable for wall mounting

Yes

Stroboscope effect value SVM

0.4

Protection class

I

Max. system power

16 W

Light output

1-seitig

Light type

Wandleuchte

Exchangeable control gear

No, Yes

Surface protection housing

Lacquered

Conductor cross section

2.5 mm²

Power factor

0.9

Connection type

Screwed terminal

Colour temperature

3000 K

Colour of light

White

Height

< 700 mm

Unified Glare Ratio (UGR)

1

Colour rendering index CRI

80-89

Type of wiring

Ending

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Material cover

Plastic, structured

Energy efficiency class of the provided exchangeable built-in lamp

E

Shape

Eckig
