Article number Select a color, please

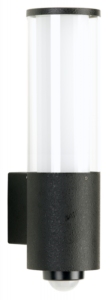

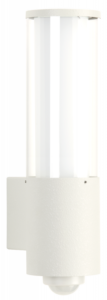

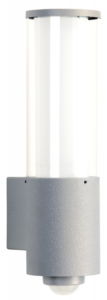

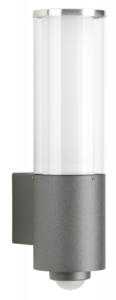

Wall lamp

type ..0320

270,00310,10

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Plastic, opal
Documents and files
Assembly instruction

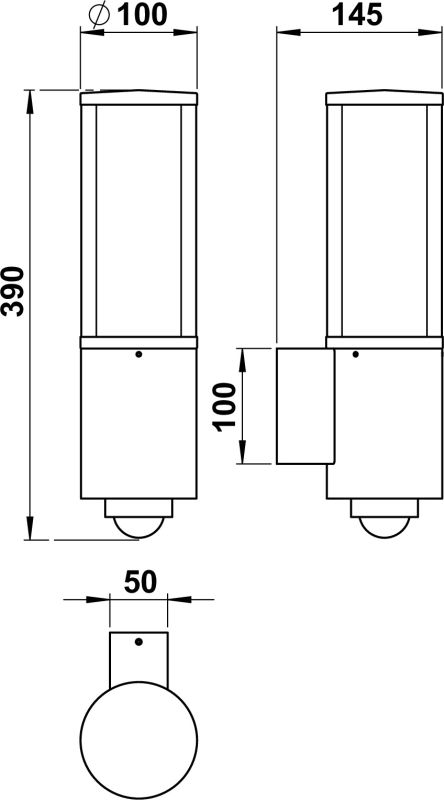

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
For: 620320
Light distribution curve - Eulumdat/LDT
For: 660320, 680320, 690320
Offertext
For: 660320
Offertext
For: 680320
Offertext
For: 690320
Offertext
For: 620320
Full catalog 21 / 22
For: 620320
Full catalog 21 / 22
For: 660320, 680320, 690320
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620320
show
661002 - Corner bracket type ..1002, Black
Für: 660320
show
681002 - Corner bracket type ..1002, White
Für: 680320, 690320
show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Suitable for wall mounting

Yes

No dim function

Yes

Nominal voltage

230 V

Suitable for lamp power

1 – 20 W

Suitable for surface mounting

Yes

Power factor

1

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-on

Yes

Dimming phase cut-off

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium, Stainless steel

Colour housing

Anthracite, Black, Silver, White

Max. system power

20 W

Voltage type

AC

Type of control gear

Not required

Height/depth

390 mm

Material cover

Plastic, opal

Lamp type

LED exchangeable

Mounting Type

Wand

Surface protection housing

Lacquered, Untreated

Light type

Wandleuchte

Number of poles

3

Protection class

I

Dimming depending on control gear

Yes

Unified Glare Ratio (UGR)

1

Beam angle

Open beam/diffuse

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Height

< 700 mm

Type of wiring

Ending

Style

Bicolor, Modern

Length

145 mm

With movement sensor

Yes

Outer diameter

100 mm

With light sensor

Yes

Light sharing

Symmetric

Light output

1-seitig

Coverage

360 °

Photobiological safety according to EN 62471

RG1

Shape

Eckig
