Article number 690256

Wall light

type ..0256

225,40

Description

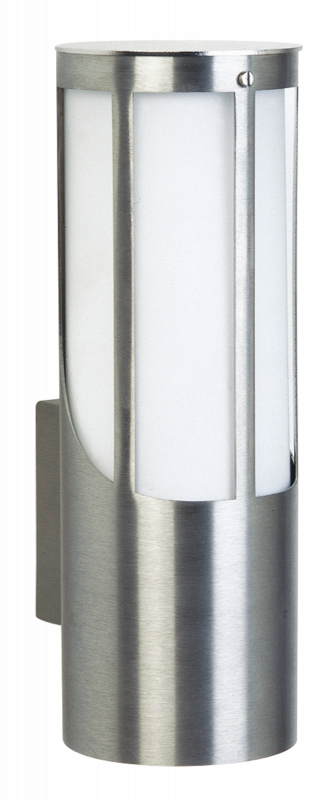

Albert wall lamp 690256 stainless steel with opal glass and cast aluminium mounting plate. Suitable for 1 x incandescent lamp A60 max. 75W, socket E27, protection class IP 44 – protection class : d 103 x 300 x 150 mm.

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

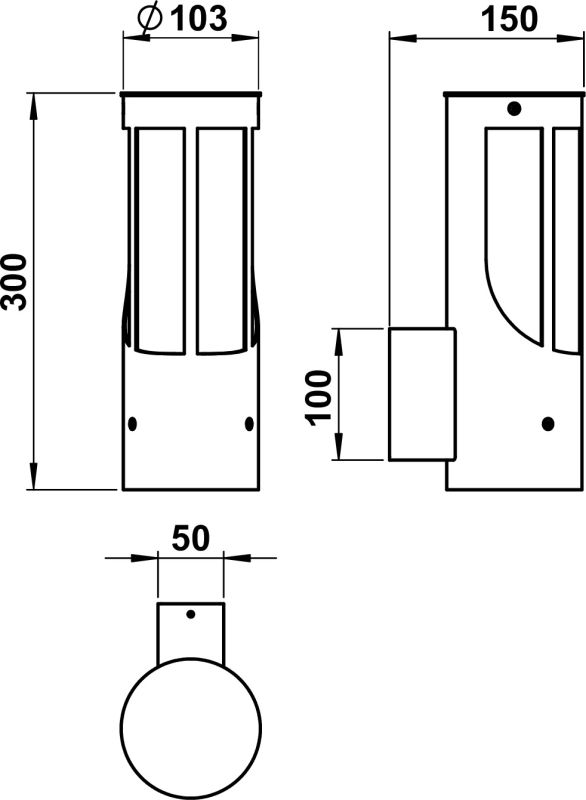

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
691000 - Corner bracket type ..1000 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,30 kg
Style

Edelstahl, Modern

Material housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Protection class

I

Suitable for number of lamps

1

Light sharing

Symmetric

Colour housing

Stainless steel

Lamp holder

E27

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Height/depth

300 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Nominal voltage

230 V

No dim function

Yes

Dimming depending on control gear

Yes

Mounting Type

Wand

Beam angle

Open beam/diffuse

Light output

Direct

Suitable for lamp power

1 – 75 W

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Outer diameter

103 mm

Light type

Wandleuchte

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Length

150 mm

Connection type

Screwed terminal

Number of poles

3

Shape

Eckig
