Data sheet
Article number
Select a color, please

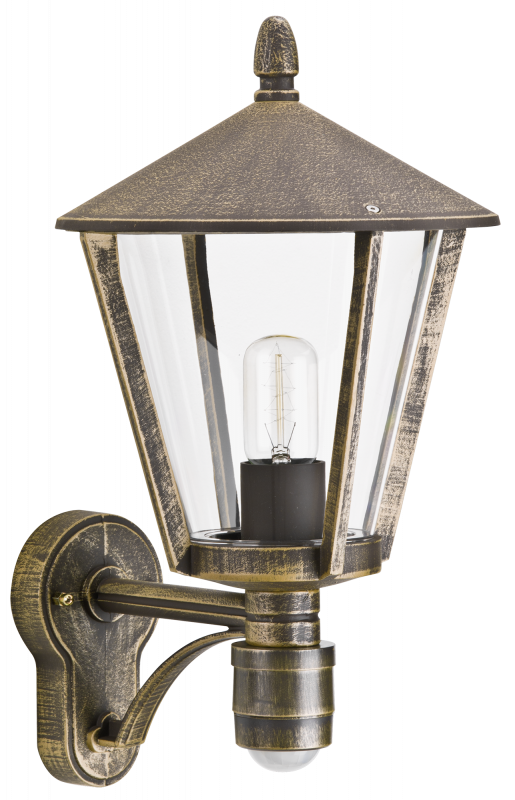

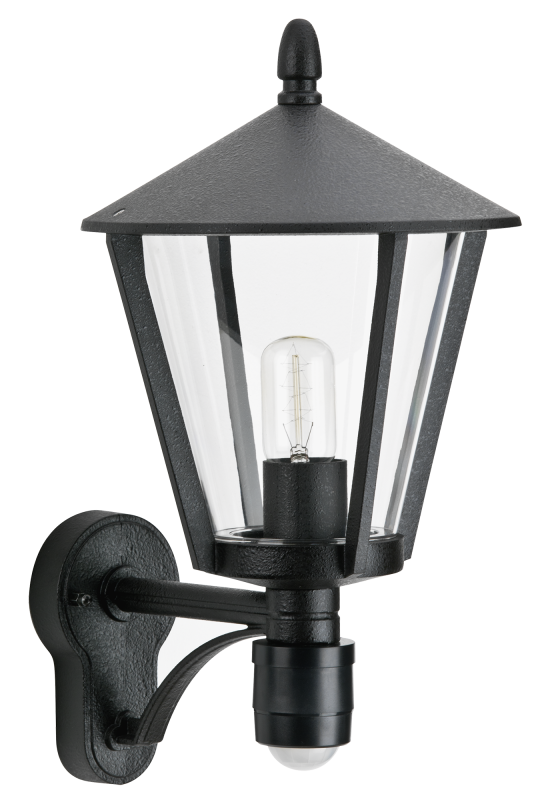

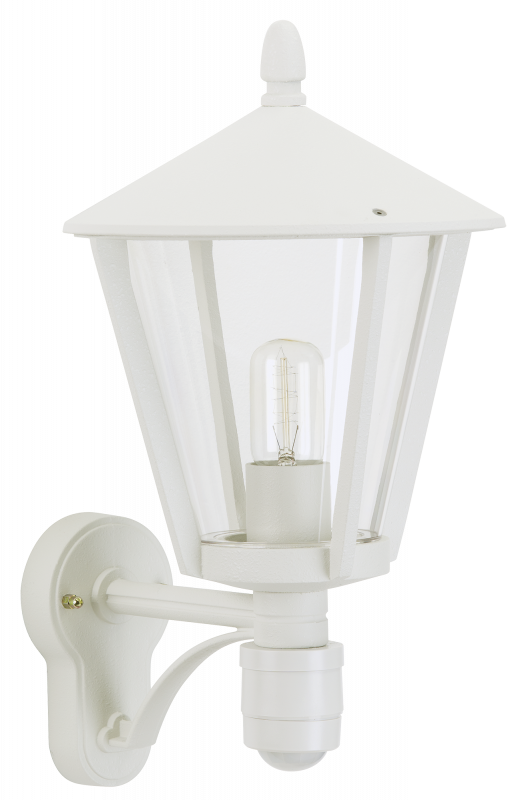

Wall lamp
type ..1815
€243,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Conductor cross section | 2.5 mm² |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Coverage | 360 ° |
| Connection type | Screwed terminal |
| Degree of protection (IP) | IP44 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Light sharing | Symmetric |
| No dim function | Yes |
| Height | < 700 mm |
| Protection class | I |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Mounting method | Wand |
| Style | Landhaus |
| Photobiological safety according to EN 62471 | RG1 |
| Light outlet | 1-seitig |
| Unified Glare Ratio (UGR) | 1 |
| Light type | Wandleuchte |
| Surface protection housing | Lacquered |
| Number of poles | 3 |

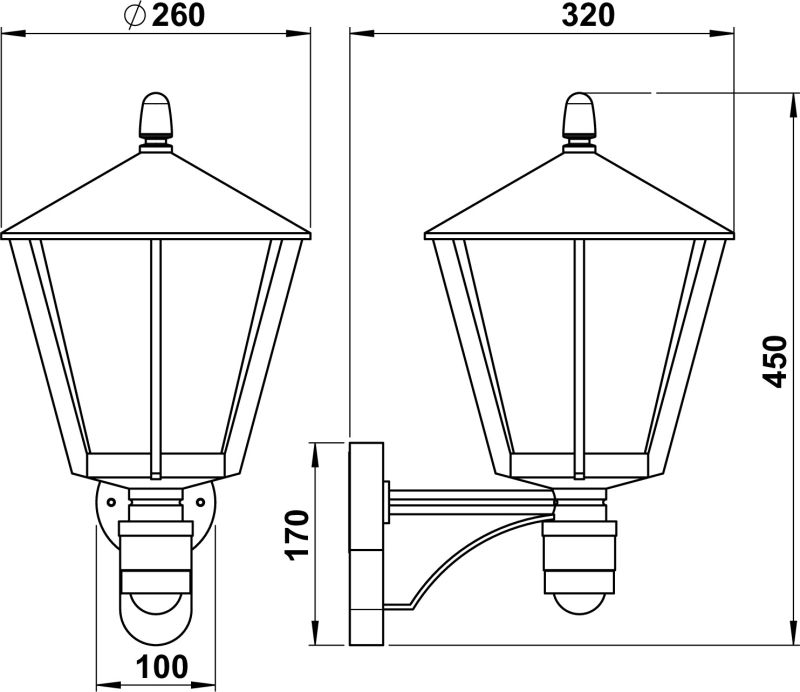

| Length | 320 mm |
| Outer diameter | 260 mm |
| Dimming phase cut-off | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Max. system power | 75 W |
| Suitable for number of lamps | 1 |
| Type of wiring | Ending |
| Power factor | 1 |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Height/depth | 450 mm |
| Nominal voltage | 230 V |
| Dimming phase cut-on | Yes |
| Type of control gear | Not required |
| Voltage type | AC |
| Shape | Eckig |
Documents and files
Spare parts
| 90260144 - G 144, lamp glasses L-750 | show |
