Article number Select a color, please

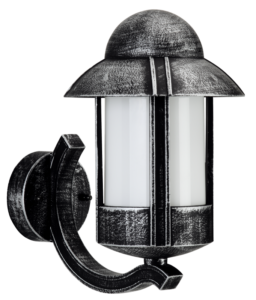

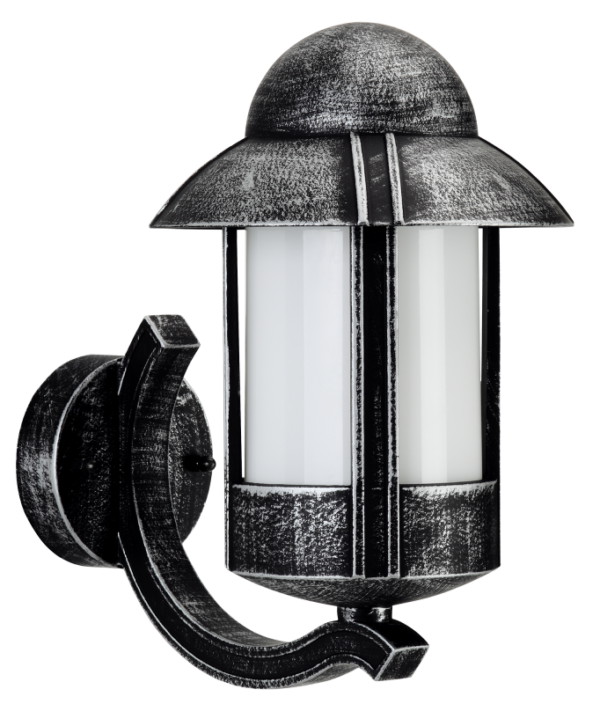

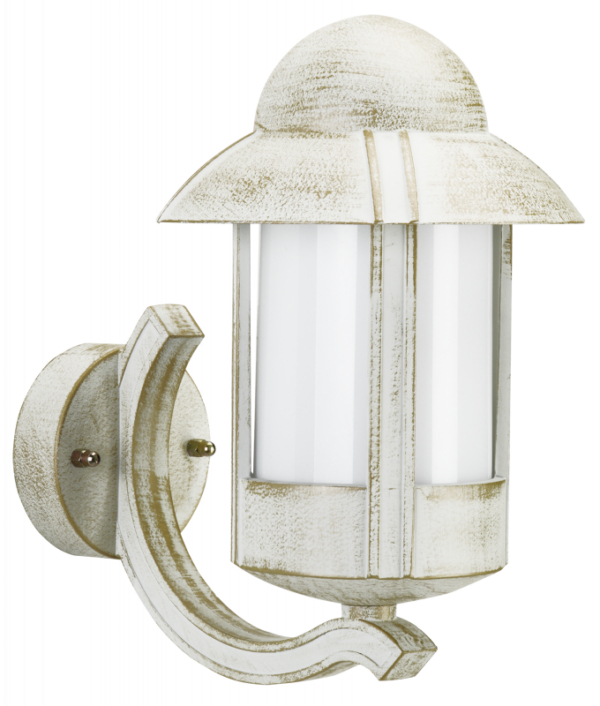

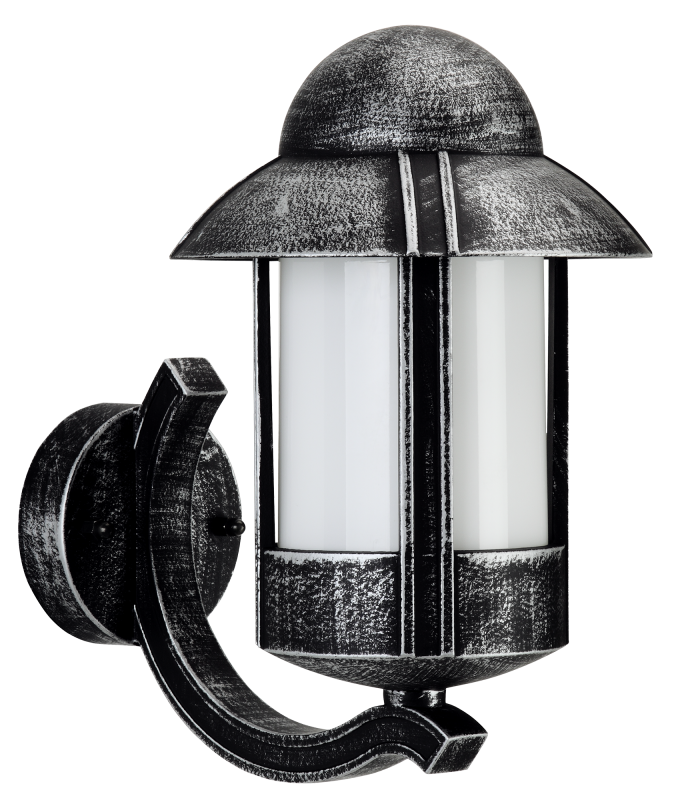

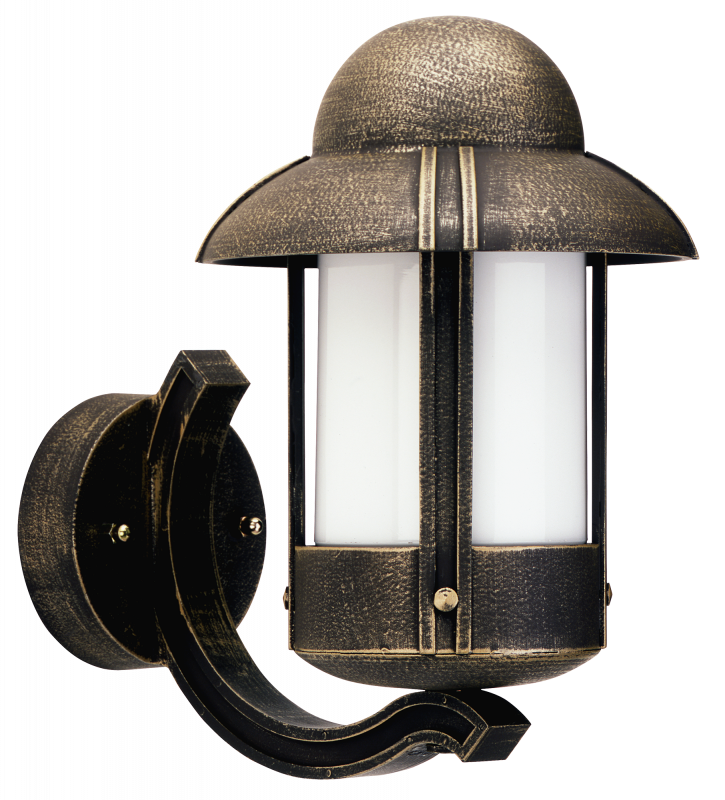

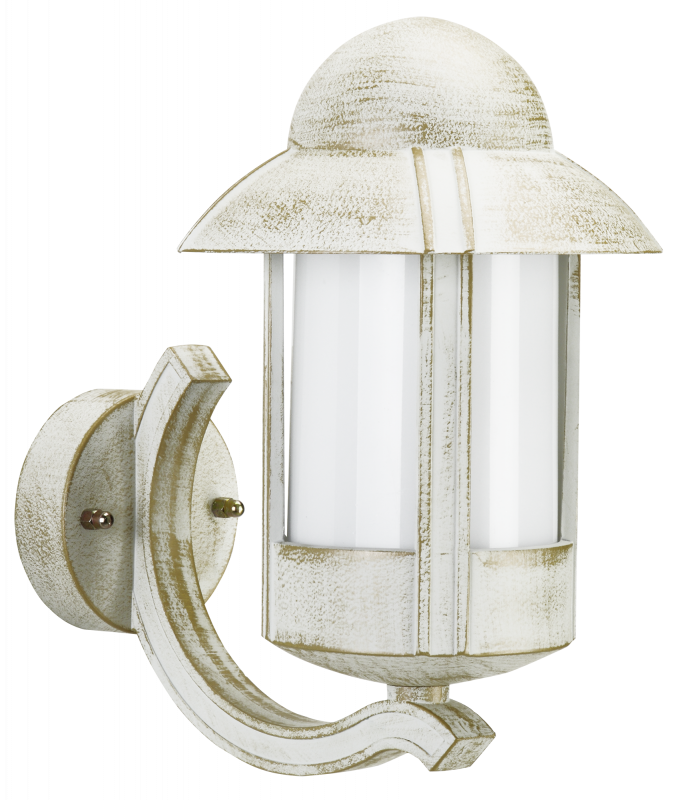

Wall lamp

type ..1840

312,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

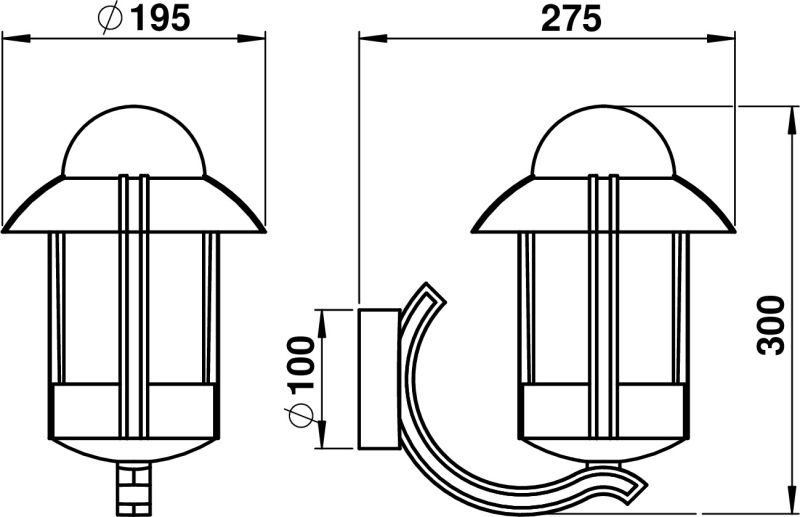

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 601840
Offertext
For: 651840
Offertext
For: 671840
Full catalog 21 / 22
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
601005 - Corner bracket round type ..1005, Black-Silver
Für: 601840
show
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651840
show
671005 - Corner bracket round type ..1005, White-Gold
Für: 671840
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Unified Glare Ratio (UGR)

1

Voltage type

AC

Suitable for lamp power

1 – 75 W

Power factor

1

Type of control gear

Not required

Material cover

Glass opal

Colour housing

Black-Silver, Brown-Brass, White-Gold

Beam angle

Open beam/diffuse

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Nominal voltage

230 V

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Light sharing

Symmetric

Mounting Type

Wand

Number of poles

3

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Width

195 mm

Type of wiring

Ending

Suitable for wall mounting

Yes

Length

275 mm

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Dimming depending on control gear

Yes

Surface protection housing

Lacquered

Outer diameter

195 mm

No dim function

Yes

Protection class

I

Light type

Wandleuchte

Height/depth

300 mm

Height

< 700 mm

Photobiological safety according to EN 62471

RG1

Light output

1-seitig

Style

Landhaus

Dimming manufacturer's proprietary system

Yes

Shape

Eckig
