Article number 696284

Wall and ceiling light

type ..6284

175,10

Description

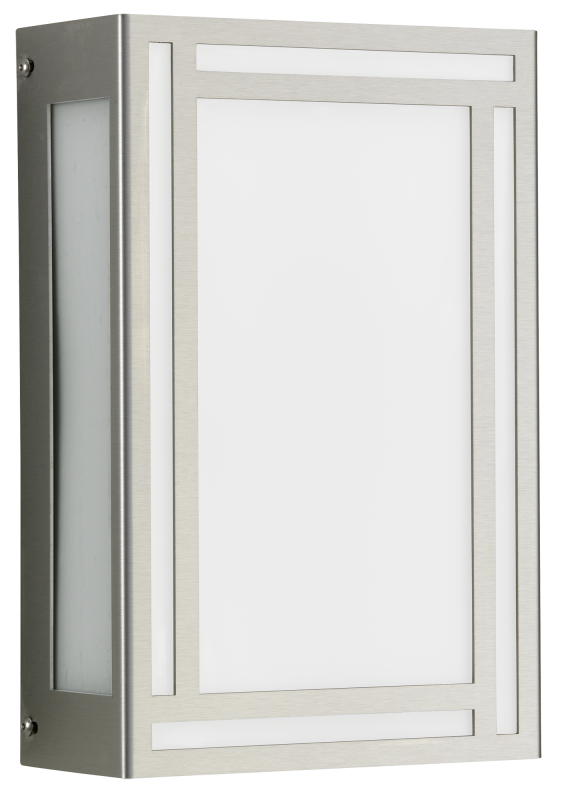

Albert wall and ceiling light 696284
in stainless steel with opal glass, mounting plate. Fitted for 1 x incandescent lamp A60 75 W, socket E27.degree of protection IP 44 – protection class : 185 x 285 x 95 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

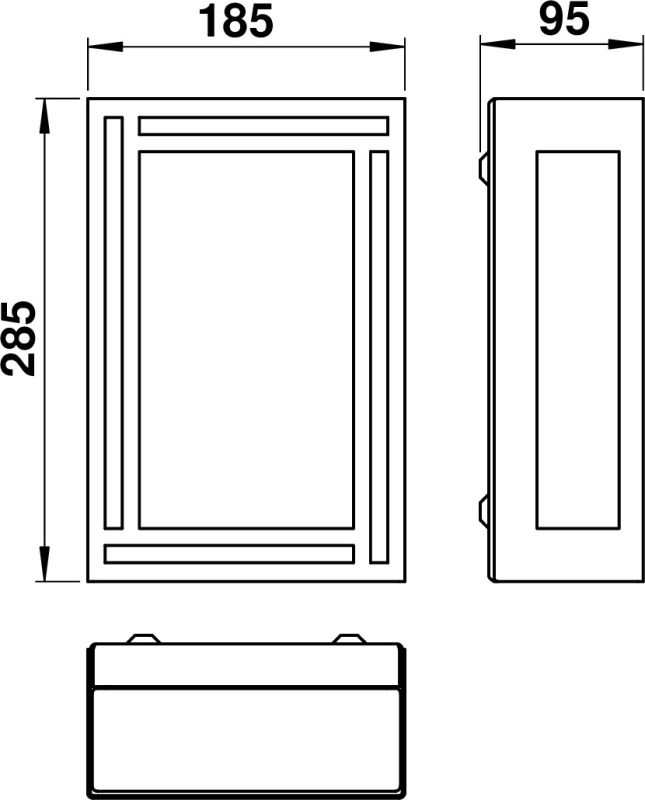

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210392 - G 392, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 3,10 kg
Suitable for number of lamps

1

Dimming manufacturer's proprietary system

Yes

Lamp holder

E27

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Protection class

I

Dimming phase cut-off

Yes

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

285 mm

Length

95 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Degree of protection (IP)

IP44

Dimming depending on control gear

Yes

No dim function

Yes

Photobiological safety according to EN 62471

RG1

Power factor

1

Unified Glare Ratio (UGR)

1

Light output

1-seitig

Width

185 mm

Lowest energy efficiency class of the exchangeable lamp

E

Suitable for wall mounting

Yes

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Style

Edelstahl, Modern

Mounting Type

Decke, Wand

Height

< 700 mm

Surface protection housing

Untreated

Beam angle

Open beam/diffuse

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig
