Data sheet
Article number 626251

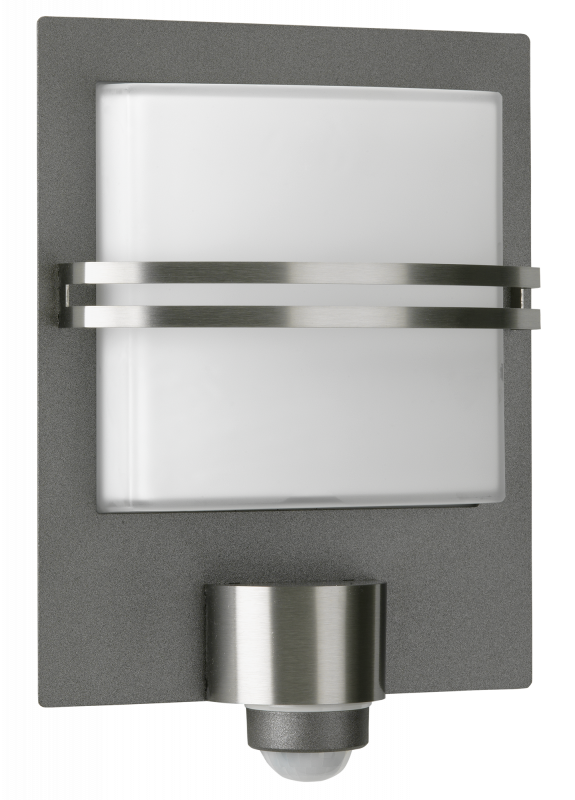

Wall light with BWM
type ..6251
€274,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Wall lamp type no. 6251 with BWM
Colour: anthracite, 1 x lamp, E27, A++ to E, for general purpose lamps, stainless steel, opal glass,
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Anthracite
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 57 W
Material cover
Glass opal
Documents and files
Assembly instruction

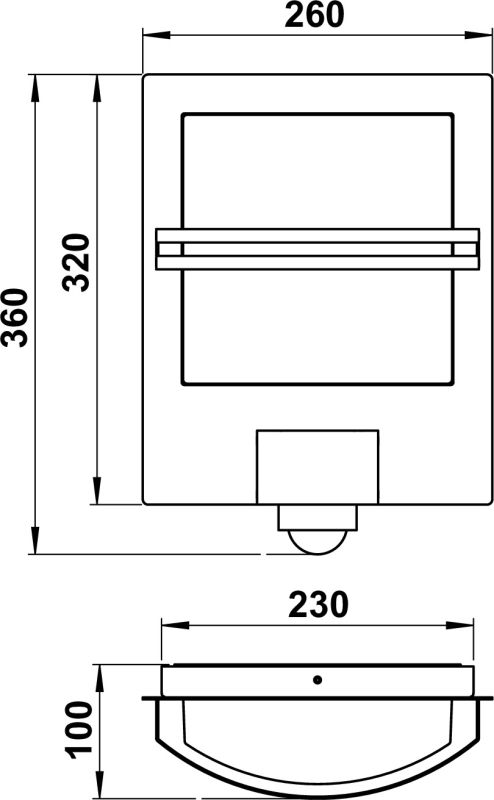

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 3,50 kg |
|---|---|
| Dimming manufacturer's proprietary system | Yes |
| Lamp holder | E27 |
| Suitable for surface mounting | Yes |
| Dimming phase cut-off | Yes |
| Light output | Direct |
| Material cover | Glass opal |
| Colour housing | Anthracite |
| Type of wiring | Ending |
| Voltage type | AC |
| Type of control gear | Not required |
| Length | 100 mm |
| Nominal voltage | 230 V |
| Width | 260 mm |
| Power factor | 1 |
| Height/depth | 360 mm |
| Suitable for number of lamps | 1 |
| Material housing | Stainless steel |
| Dimming phase cut-on | Yes |
| Dimming depending on control gear | Yes |
| Photobiological safety according to EN 62471 | RG1 |
| Max. system power | 57 W |
| Light output | 1-seitig |
| No dim function | Yes |
| Light sharing | Asymmetric |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Number of poles | 3 |
| Degree of protection (IP) | IP44 |
| Connection type | Screwed terminal |
| Coverage | 360 ° |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| With movement sensor | Yes |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Suitable for lamp power | 1 – 57 W |
| Surface protection housing | Lacquered |
| Height | < 700 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| With light sensor | Yes |
| Suitable for wall mounting | Yes |
| Protection class | I |
| Style | Bicolor, Edelstahl, Modern |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle | Open beam/diffuse |
| Shape | Eckig |
