Article number Select a color, please

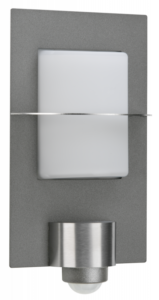

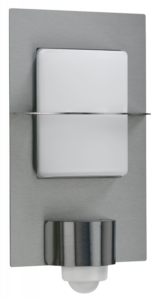

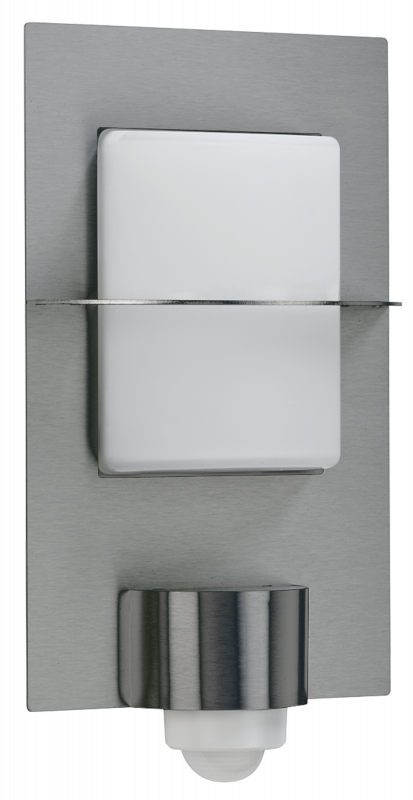

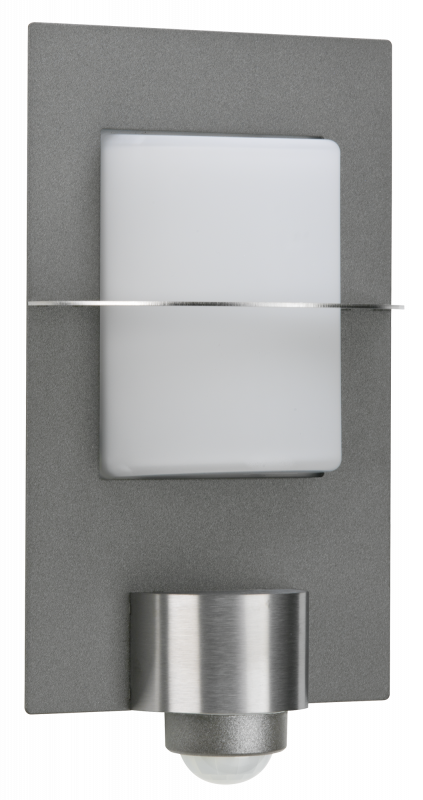

Wall lamp

type ..6140

234,50263,10

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

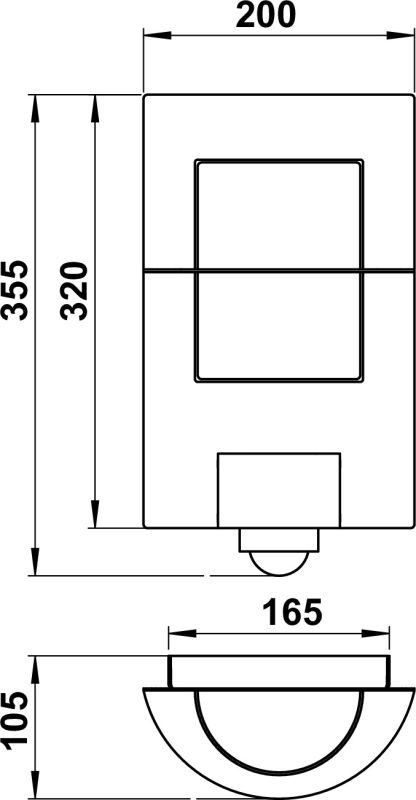

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 626140
Offertext
For: 696140
Full catalog 21 / 22
For: 626140
Full catalog 21 / 22
For: 696140
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Material housing

Aluminium, Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Dimming phase cut-on

Yes

Nominal voltage

230 V

Colour housing

Anthracite, Stainless steel

Beam angle

Open beam/diffuse

Dimming depending on control gear

Yes

Light output

Direct

Power factor

1

Width

200 mm

Height/depth

355 mm

Length

105 mm

Suitable for number of lamps

1

Type of wiring

Ending

Lamp holder

E27

Conductor cross section

2.5 mm²

Unified Glare Ratio (UGR)

1

Number of poles

3

Protection class

I

No dim function

Yes

Light sharing

Symmetric

Mounting Type

Wand

Shape

Eckig

Suitable for lamp power

1 – 75 W

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Coverage

360 °

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

With movement sensor

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Max. system power

75 W

Style

Bicolor, Edelstahl, Modern

With light sensor

Yes

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Untreated

Photobiological safety according to EN 62471

RG1
