Data sheet
Article number 696142
Wall lamp
type ..6142
€202,60
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

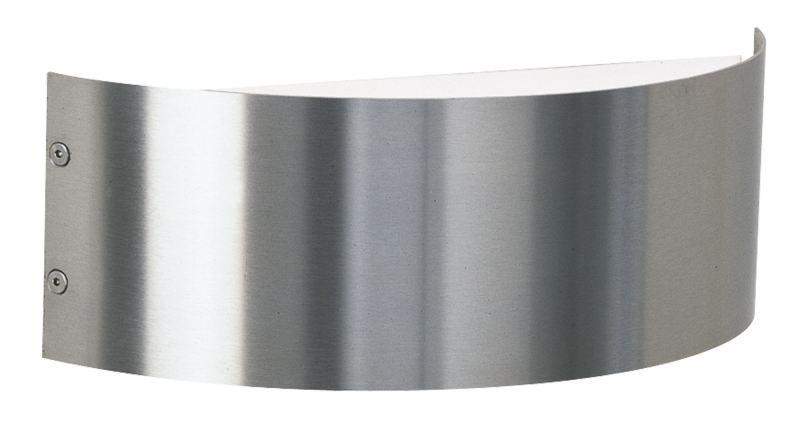

Albert wall lamp 696142
with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium. Equipped for 1 x QT-DE 12 60W, socket R7s.protection class IP 44 – protection class : 295 x 100 x 100 mm
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
1 - 60 W
Material cover
Glass opal
Documents and files
Assembly instruction

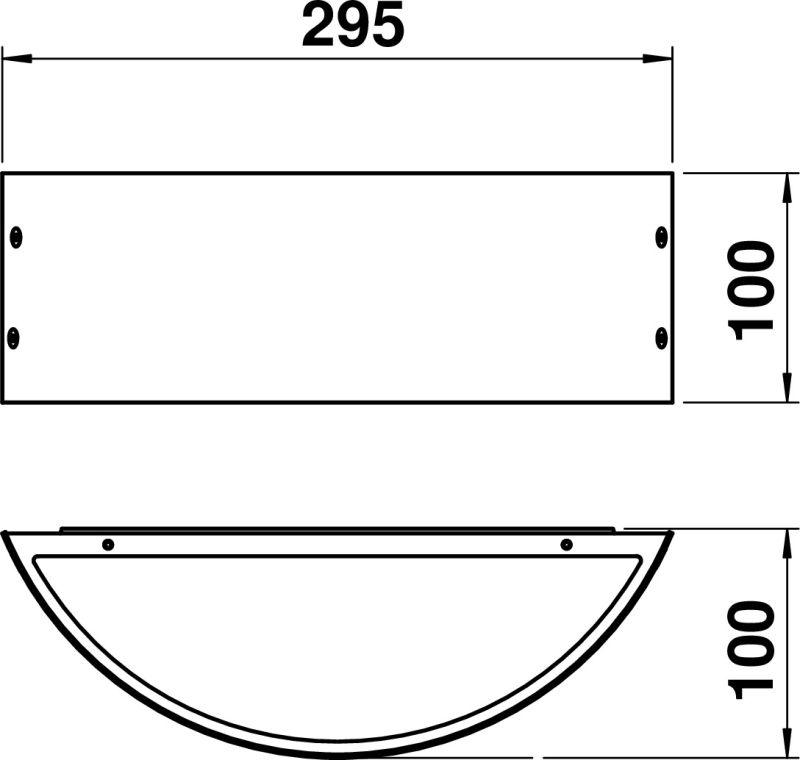

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90220318 - G 318, milk flashed glass | show |
Additional information
| Weight | 1,60 kg |
|---|---|
| Lamp holder | R7s |
| Colour housing | Stainless steel |
| Degree of protection (IP) | IP44 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Material cover | Glass opal |
| Type of control gear | Not required |
| Material housing | Stainless steel |
| Lamp type | HV halogen lamp |
| Suitable for number of lamps | 1 |
| Voltage type | AC/DC |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Power factor | 1 |
| Width | 295 mm |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Nominal voltage | 230 V |
| Suitable for lamp power | 1 – 60 W |
| Height/depth | 100 mm |
| Length | 100 mm |
| Light output | 1-seitig |
| Height | < 700 mm |
| Mounting Type | Wand |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
| Connection type | Screwed terminal |
| Style | Edelstahl, Modern |
| Type of wiring | Ending |
| Light type | Wandleuchte |
| Suitable for wall mounting | Yes |
| Conductor cross section | 2.5 mm² |
| No dim function | Yes |
| Surface protection housing | Untreated |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. system power | 60 W |
| Protection class | I |
| Number of poles | 3 |
| Shape | Eckig |
