Article number 692071

Bollard light

type ..2071

582,70

Specifications

Albert bollard light 692071 – with integrated motion detector – made of stainless steel with opal glass and acrylic glass cylinder clear. For 1 x lamp max. 18W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 100 x 900 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Weight 3,90 kg
Type of luminaire

Bollard luminaire

Nominal voltage

230 V

Voltage type

AC

Number of poles

3

Type of wiring

Suitable for through wiring

Highest energy efficiency class of the exchangeable lamp

A++

Type of control gear

Not required

With base plate

Yes

Power factor

1

Style

Edelstahl, Modern

Coverage

90 °

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Suitable for number of lamps

1

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Light type

Standleuchte

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Light output

Direct/indirect

Max. system power

20 W

Light output

2-seitig

Height/depth

900 mm

Diameter

100 mm

Protection class

I

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

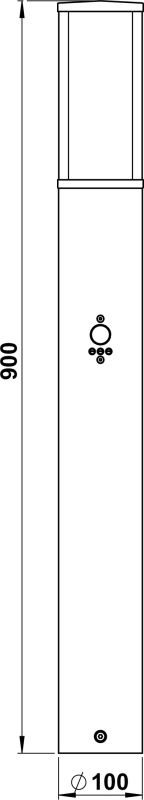

Dimensioned drawing
PDF | 92 KB
Instruction manual
PDF | 166 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show
90750309 - LED Retrofit Tube show
