Article number Select a color, please

Wall lamp

type ..6147

184,40211,90

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
1 - 60 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Number of poles

3

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Voltage type

AC/DC

Type of control gear

Not required

Nominal voltage

230 V

Power factor

1

Dimming depending on control gear

Yes

Light output

1-seitig

No dim function

Yes

Width

200 mm

Height/depth

100 mm

Length

90 mm

Suitable for number of lamps

1

Conductor cross section

2.5 mm²

Suitable for surface mounting

Yes

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Max. system power

60 W

Connection type

Screwed terminal

Beam angle

Open beam/diffuse

Light output

Direct

Degree of protection (IP)

IP44

Protection class

I

Light sharing

Symmetric

Height

< 700 mm

Style

Modern

Surface protection housing

Lacquered

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 36 KB

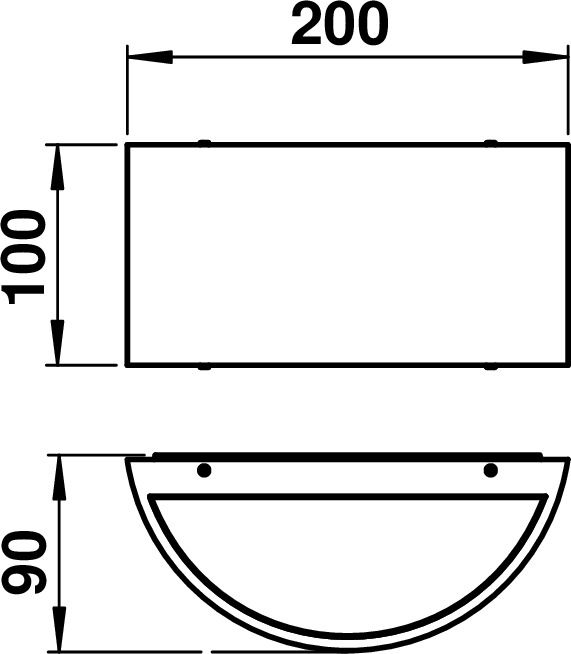

Dimensioned drawing
PDF | 19 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Offertext
For: 666147
TXT | 226 B
Offertext
For: 686147
TXT | 203 B
Offertext
For: 696147
TXT | 203 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220317 - G 317, milk flashed glass show
Accessories
90750103 - LED Pin show
