Article number Select a color, please

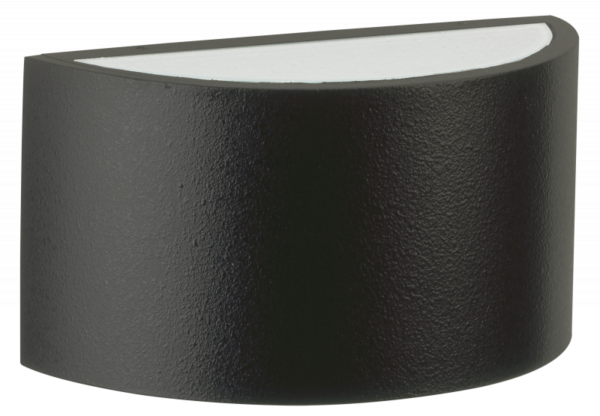

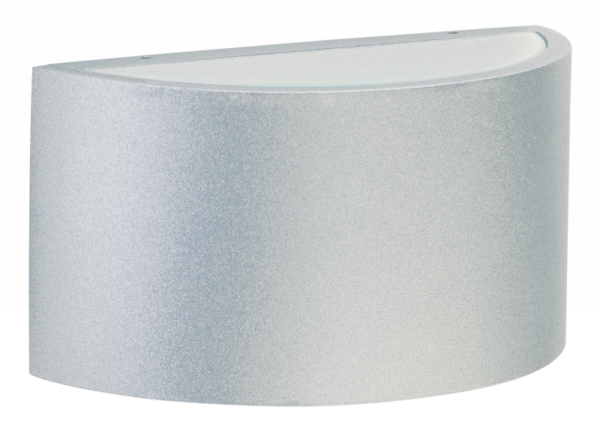

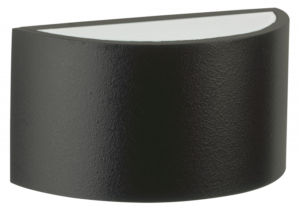

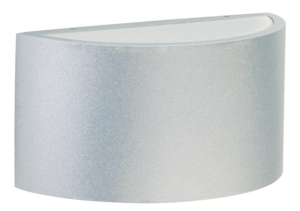

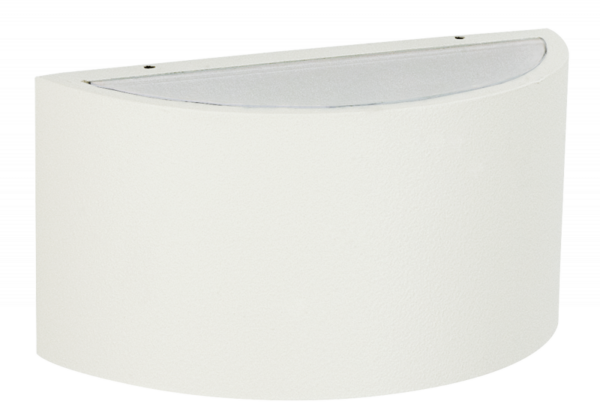

Wall lamp

type ..6347

303,30315,30

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
11.6 W
Rated luminous flux acc. IEC 62722-2-1
860 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

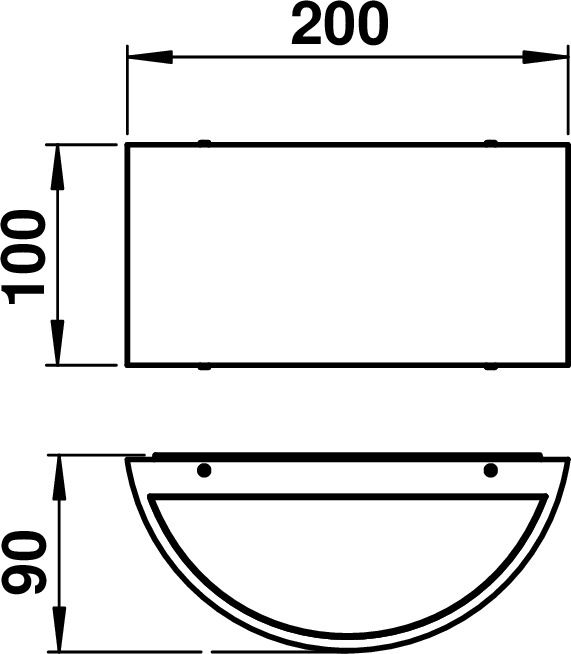

Dimensioned drawing
Light distribution curve
Offertext
For: 666347
Offertext
For: 686347
Offertext
For: 696347
Full catalog 21 / 22
Spare parts
90220317 - G 317, milk flashed glass show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

2

Material housing

Aluminium

With light source

Yes

Colour housing

Black, Silver, White

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

A+

No dim function

Yes

Material cover

Glass opal

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Suitable for surface mounting

Yes

Control gear included

Yes

Colour rendering index CRI

80-89

Protection class

I

Degree of protection (IP)

IP44

Power factor

0.9

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Colour of light

White

Rated life time L80/B50 at 25 °C

50000 h

Rated luminous flux acc. IEC 62722-2-1

860 lm

Width

200 mm

Height/depth

100 mm

Length

90 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Light output

Direct

Suitable for lamp power

11.6 W

Connection type

Screwed terminal

Max. system power

11.6 W

Beam angle

Open beam/diffuse

Dimming depending on control gear

Yes

Colour temperature

3000 K

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Style

Modern
