Data sheet
Article number 626250
Wall lamp
type ..6250
€213,50
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Wall lamp type no. 6250
Colour: anthracite, 1 x lamp, E27, A++ to E, for general purpose lamps, stainless steel, opal glass,
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Anthracite
Lamp type
LED exchangeable
With light source
Yes
Lamp holder
E27
Suitable for lamp power
1 - 57 W
Material cover
Glass opal
Documents and files
Assembly instruction

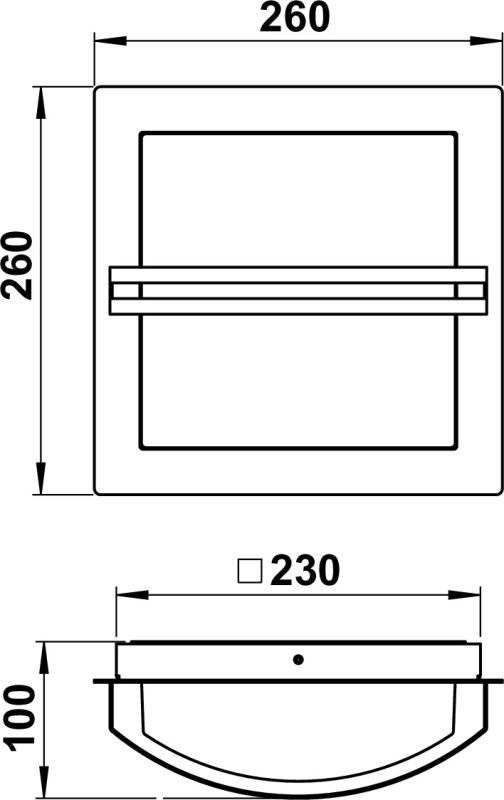

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 2,70 kg |
|---|---|
| Style | Bicolor, Modern |
| Suitable for number of lamps | 1 |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Material housing | Stainless steel |
| Lamp holder | E27 |
| Height/depth | 260 mm |
| Material cover | Glass opal |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Lamp type | LED exchangeable |
| Protection class | I |
| Colour housing | Anthracite |
| Voltage type | AC |
| Dimming manufacturer's proprietary system | Yes |
| Number of poles | 3 |
| Suitable for lamp power | 1 – 57 W |
| Max. system power | 57 W |
| Power factor | 1 |
| Width | 260 mm |
| Connection type | Screwed terminal |
| With light source | Yes |
| Height | < 700 mm |
| Light output | 1-seitig |
| Conductor cross section | 2.5 mm² |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Flickering value Pst LM | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Length | 100 mm |
| Light type | Wandleuchte |
| Mounting Type | Wand |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Suitable for wall mounting | Yes |
| Stroboscope effect value SVM | 0.4 |
| Surface protection housing | Lacquered |
| Unified Glare Ratio (UGR) | 1 |
| Light sharing | Asymmetric |
| Shape | Eckig |
