Article number 626216

Wall lamp

type ..6216

216,30

Description

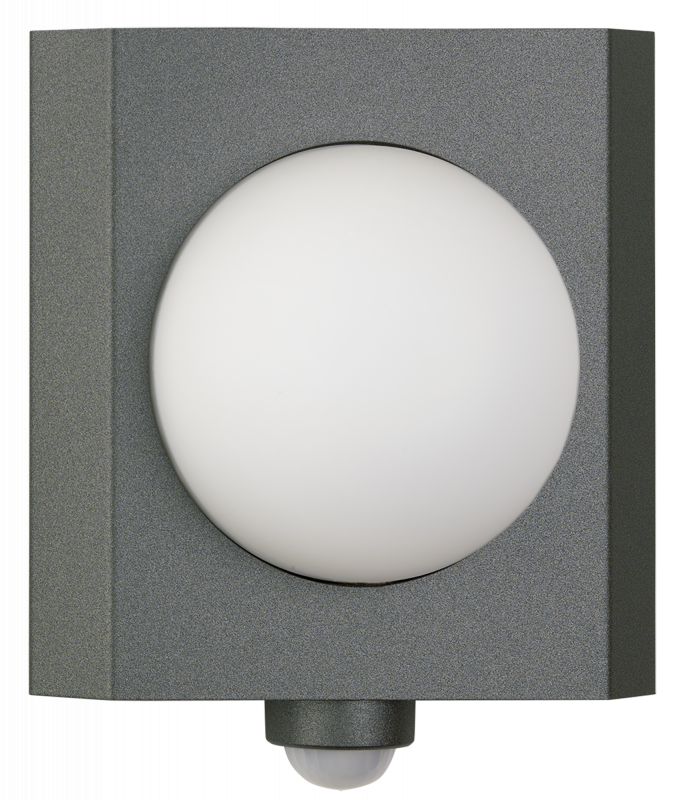

Albert wall light 626216 – with integrated motion detector –
in stainless steel with opal glass, mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27. protection class IP 44 – protection class : Bicolor – stainless steel / anthracite Dimensions: 250 x 285 x 150 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Anthracite
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

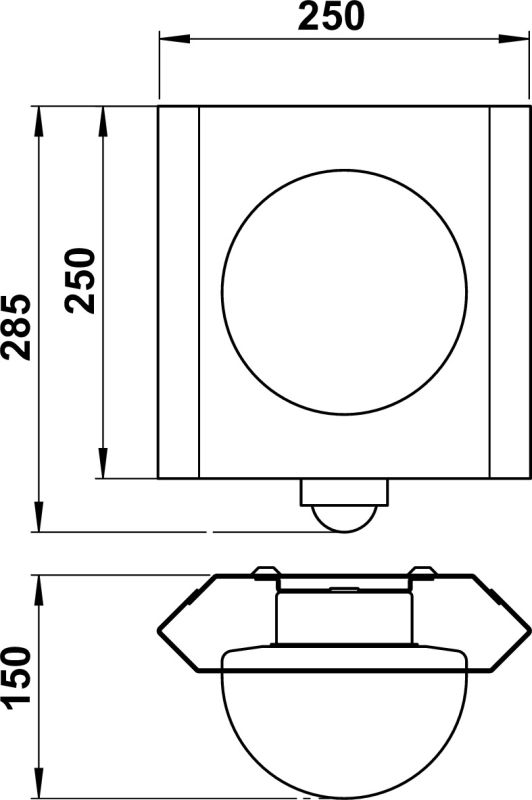

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210094 - G 94, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 1,90 kg
Degree of protection (IP)

IP44

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Material housing

Stainless steel

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Dimming depending on control gear

Yes

Dimming phase cut-on

Yes

Dimming phase cut-off

Yes

No dim function

Yes

Dimming manufacturer's proprietary system

Yes

Surface protection housing

Lacquered

Colour housing

Anthracite

Lamp holder

E27

Material cover

Glass opal

Width

250 mm

Beam angle

Open beam/diffuse

Length

150 mm

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Power factor

1

With movement sensor

Yes

Light sharing

Symmetric

Type of wiring

Ending

Suitable for wall mounting

Yes

Max. system power

75 W

Height/depth

280 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Protection class

I

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

With light sensor

Yes

Coverage

360 °

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Suitable for lamp power

1 – 75 W

Shape

Eckig
