Article number 690324

Wall lamp

type no. 324

222,20

Description

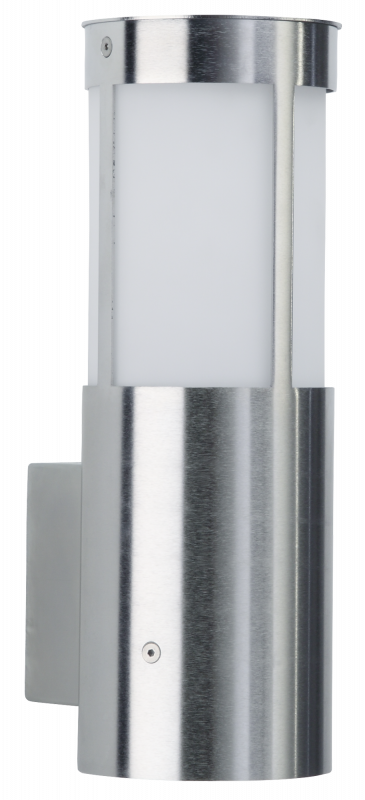

Albert wall lamp 690324
Stainless steel with opal glass and cast aluminium mounting plate. Suitable for 1 x incandescent lamp A60 max. 75W, socket E27, protection IP 44 – protection class : d 103 x 300 x 150 mm.

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

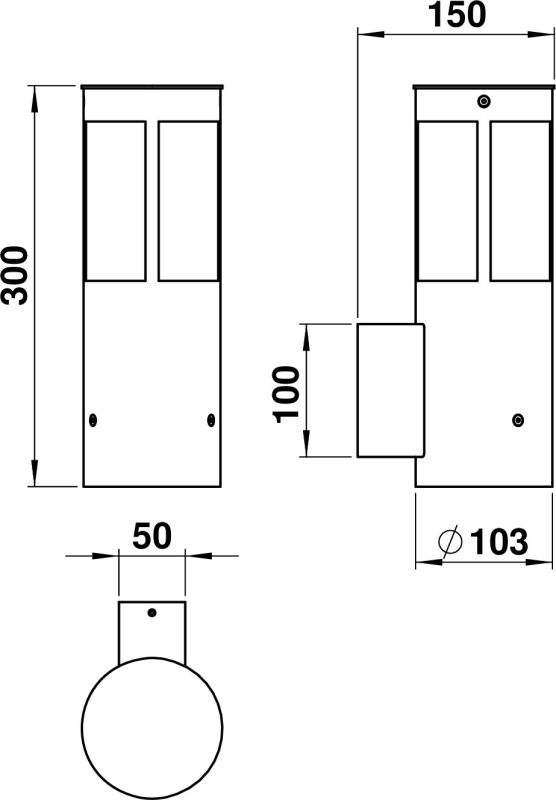

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
691000 - Corner bracket type ..1000 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,10 kg
Style

Edelstahl, Modern

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Protection class

I

Material housing

Stainless steel

Suitable for number of lamps

1

Light sharing

Symmetric

Colour housing

Stainless steel

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Height/depth

300 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Nominal voltage

230 V

Lamp holder

E27

No dim function

Yes

Outer diameter

103 mm

Dimming depending on control gear

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Suitable for lamp power

1 – 75 W

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Mounting Type

Wand

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Light type

Wandleuchte

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Length

150 mm

Connection type

Screwed terminal

Number of poles

3

Shape

Eckig
