Article number Select a color, please

Wall and ceiling light

type ..6199

184,20212,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

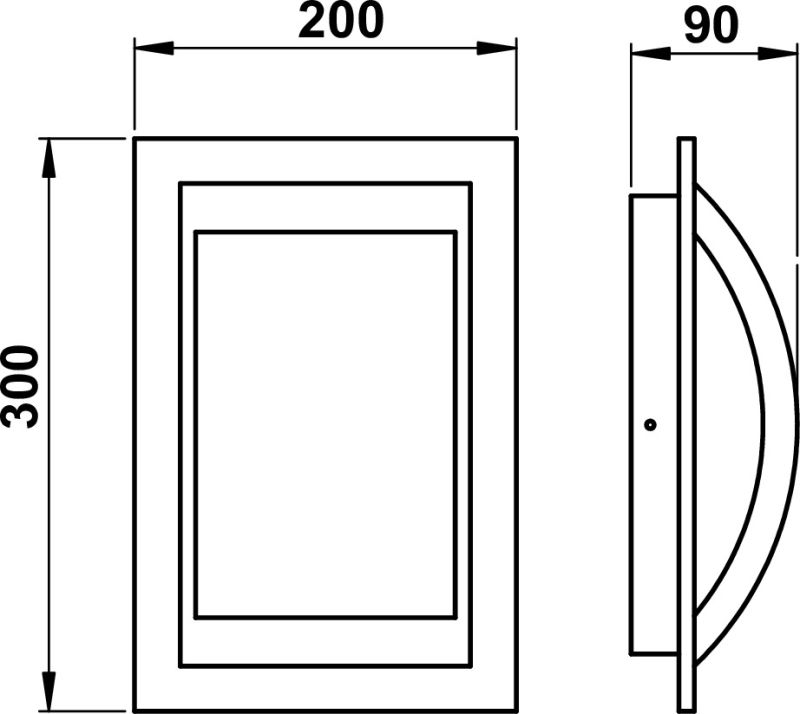

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666199
Offertext
For: 686199
Offertext
For: 696199
Offertext
For: 626199
Full catalog 21 / 22
For: 626199
Full catalog 21 / 22
For: 666199, 686199, 696199
Spare parts
90210349 - G 349, glass opal matt show
Accessories
90750100 - LED Retrofit Classic
Für: 626199
show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Material cover

Glass opal

Dimming depending on control gear

Yes

Type of control gear

Not required

Dimming manufacturer's proprietary system

Yes

Voltage type

AC

Suitable for ceiling mounting

Yes

Lamp holder

E27

Nominal voltage

230 V

Suitable for number of lamps

1

Suitable for surface mounting

Yes

Colour housing

Anthracite, Black, Silver, White

Material housing

Aluminium

Protection class

I

Height/depth

100 mm, 300 mm

Highest energy efficiency class of the exchangeable lamp

A++

Conductor cross section

2.5 mm²

Dimming phase cut-on

Yes

Max. system power

75 W

Type of wiring

Ending

Number of poles

3

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Style

Bicolor, Modern

Mounting Type

Decke, Wand

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Power factor

1

Width

150 mm, 200 mm

Connection type

Screwed terminal

Shape

Eckig

Length

100 mm, 90 mm

No dim function

Yes

Suitable for lamp power

1 – 75 W

Light output

Direct

Degree of protection (IP)

IP44

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1
