Data sheet
Article number
Select a color, please

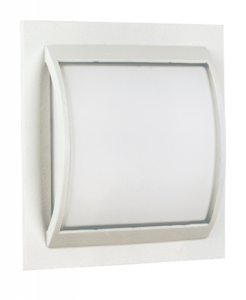

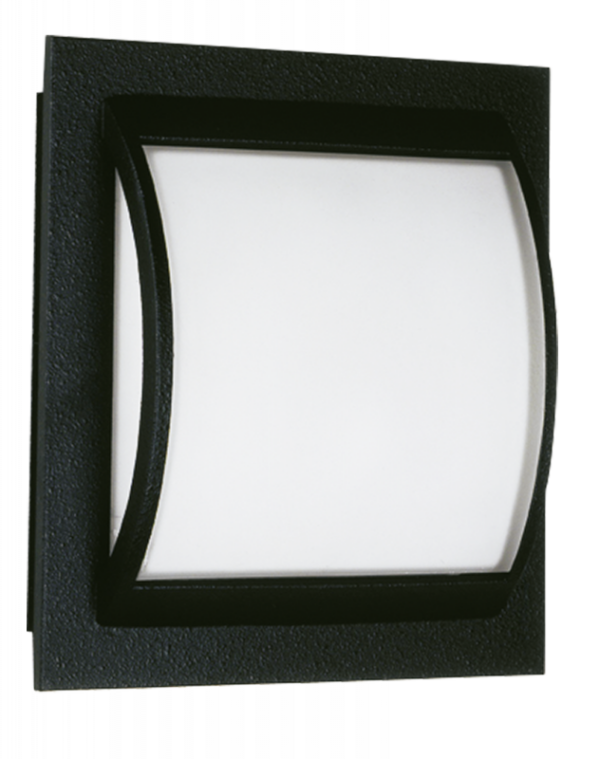

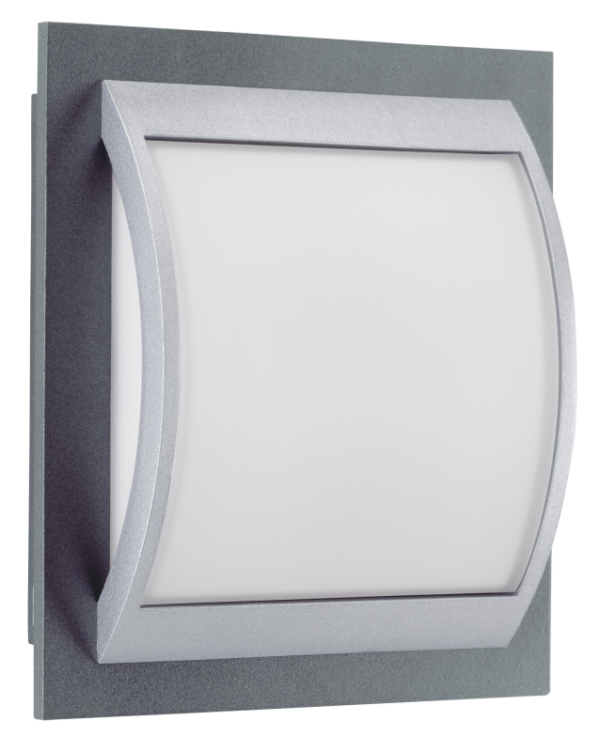

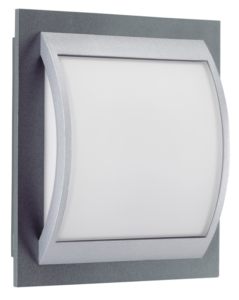

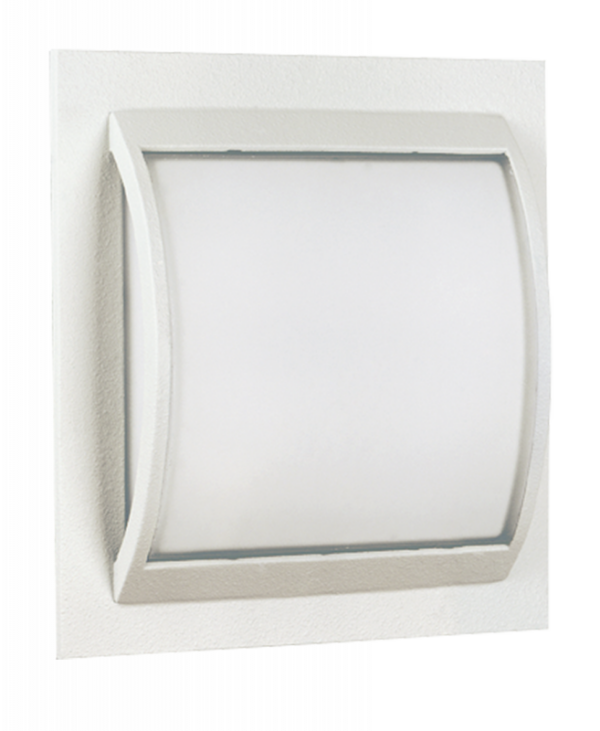

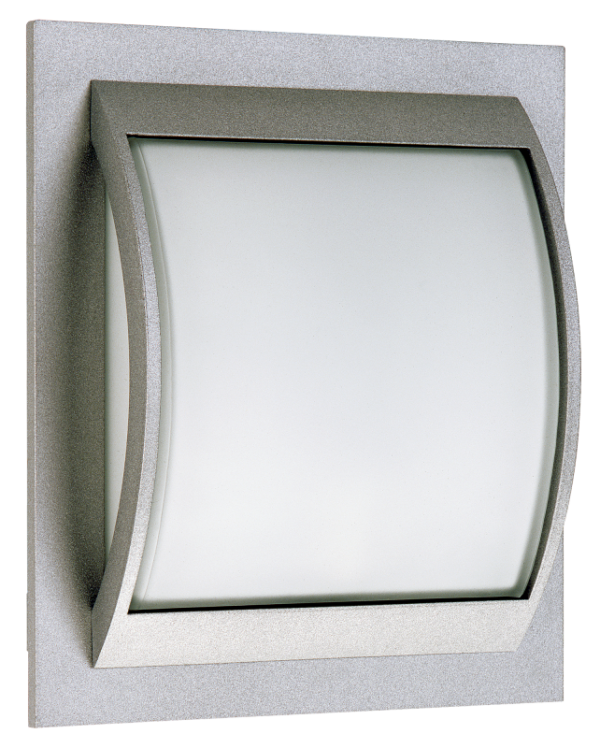

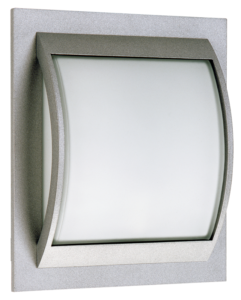

Wall and ceiling light
type ..6202
€192,20 – €221,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

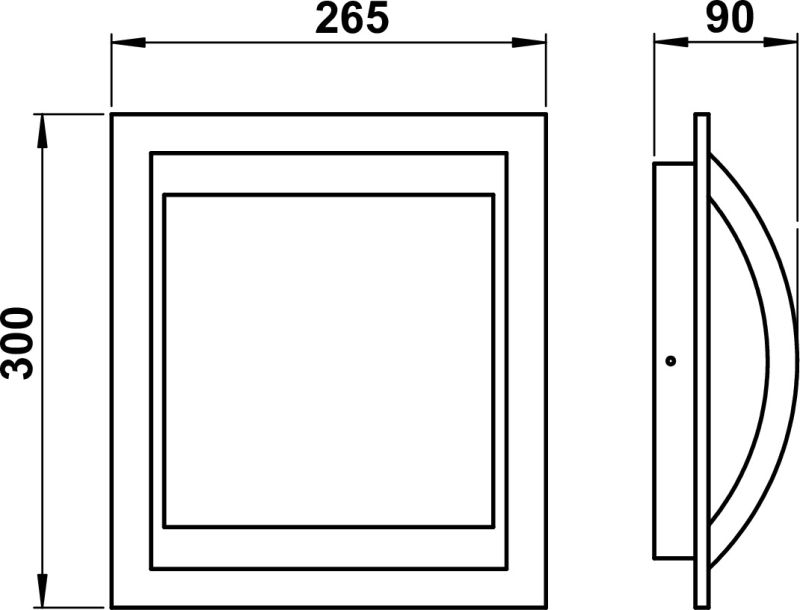

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666202
Offertext
For: 686202
Offertext
For: 696202
Offertext
For: 626202
Full catalog 21 / 22
For: 626202
Full catalog 21 / 22
For: 666202, 686202, 696202
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming phase cut-off | Yes |
| Material cover | Glass opal |
| Dimming depending on control gear | Yes |
| Type of control gear | Not required |
| Dimming manufacturer's proprietary system | Yes |
| Voltage type | AC |
| Suitable for ceiling mounting | No, Yes |
| Lamp holder | E27 |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Colour housing | Anthracite, Black, Silver, White |
| Material housing | Aluminium |
| Protection class | I |
| Height/depth | 300 mm |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Conductor cross section | 2.5 mm² |
| Dimming phase cut-on | Yes |
| Max. system power | 75 W |
| Type of wiring | Ending |
| Number of poles | 3 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Style | Bicolor, Modern |
| Mounting Type | Decke, Wand |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Width | 265 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Length | 90 mm |
| No dim function | Yes |
| Suitable for lamp power | 1 – 75 W |
| Light output | Direct |
| Degree of protection (IP) | IP44 |
| Light output | 1-seitig |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
